Send document comments to ucs-docfeedback@cisco.com
1-12
Cisco UCS 6100 Series Fabric Interconnect Hardware Installation Guide
OL-20036-02
Chapter 1 Product Overview
Expansion Modules

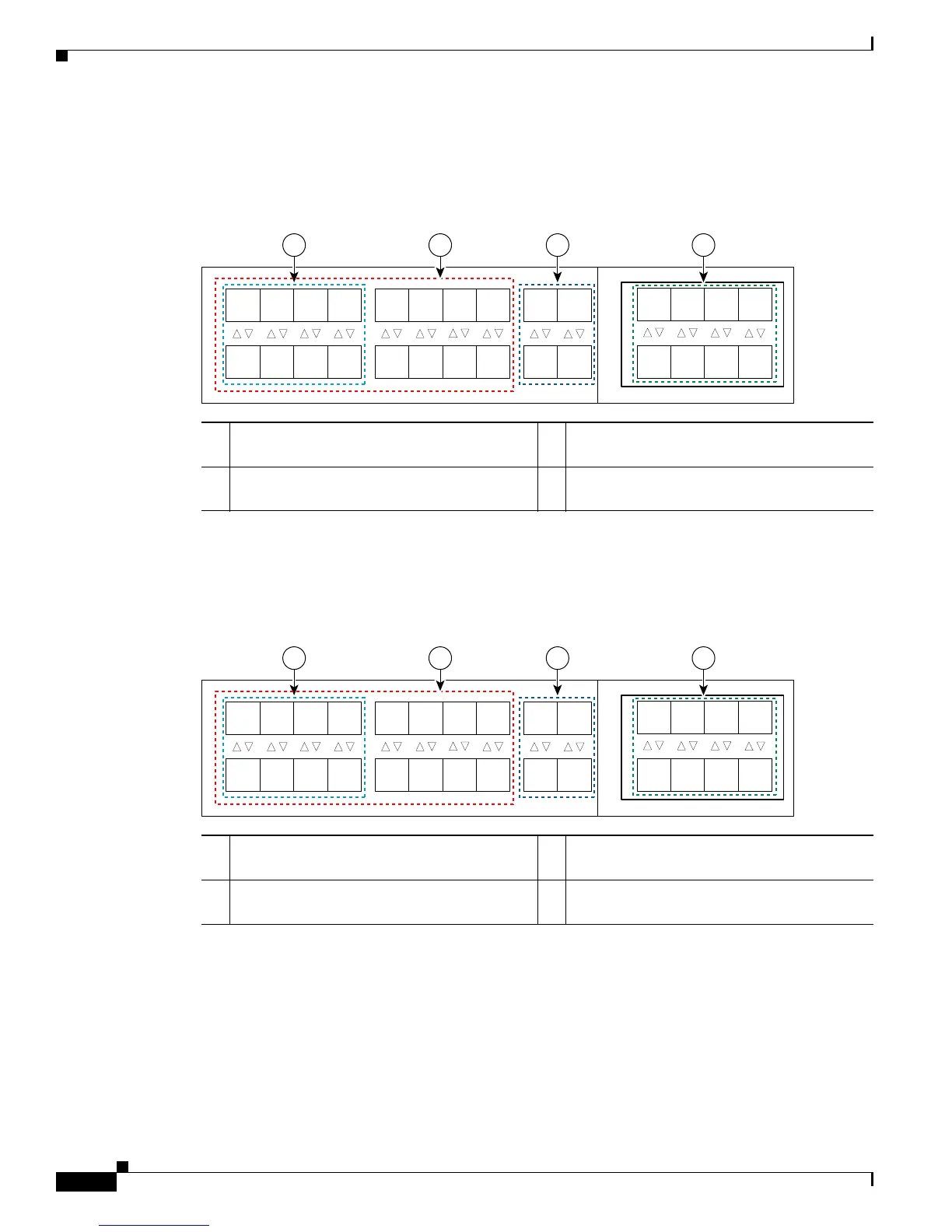

Figure 1-17 shows how ports are numbered and grouped by function with the N10-E0080 expansion
module installed.
Figure 1-17 Port Numbering of the Cisco UCS 6120XP Configured with the N10-E0080 Expansion
Module
Figure 1-17 shows how ports are numbered and grouped by function with the N10-E0060 expansion
module installed.
Figure 1-18 Port Numbering of the Cisco UCS 6120XP Configured with the N10-E0060 Expansion
Module
Cisco UCS 6140XP
There are 40 to 56 ports on the Cisco UCS 6140XP, depending on which expansion module is installed.
The fixed ports form group 1 and are named 1/port_number. Ports 1 through 32 are unencrypted Ethernet
ports. Of these, ports 1 through 16 are 10-Gigabit Ethernet and 1-Gigabit Ethernet-capable ports. Ports
33 through 40 are encryption-capable Ethernet ports. Group 2 includes the ports in the top-most
expansion module. Group 2 ports 1 through 4 are encrypted Ethernet ports. Group 2 ports 5 through 8
are Fibre Channel ports. Group 3 includes the ports in the bottom-most expansion module. Group 3 ports
1 through 4 are encrypted Ethernet ports. Group 3 ports 5 through 8 are Fibre Channel ports.
A Group 1 ports 1 through 8: 10-Gigabit
Ethernet capable unencrypted ports
B Group 1 ports 1 through 16: Unencrypted
Ethernet ports
C Group 1 ports 17 through 20: Encrypted
Ethernet ports
D Group 2 ports 1 through 8: Fibre Channel
ports
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
2
A B C D
192243
A Group 1 ports 1 through 8: 10-Gigabit
Ethernet capable unencrypted ports
B Group 1 ports 1 through 16: Unencrypted
Ethernet ports
C Group 1 ports 17 through 20: Encrypted
Ethernet ports
D Group 2 ports 1 through 6: Fibre Channel
ports
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
2
A B C D
192243
