Cisco UCS 6100 Series Fabric Interconnect Hardware Installation Guide
OL-20036-02
Chapter 1 Product Overview
Cisco UCS 6120XP Chassis
The Ethernet connector port exposes four Ethernet ports that are in a 2x2 stacked RJ-45 jack. Figure 1-1
shows a close-up view of the Ethernet connector port.

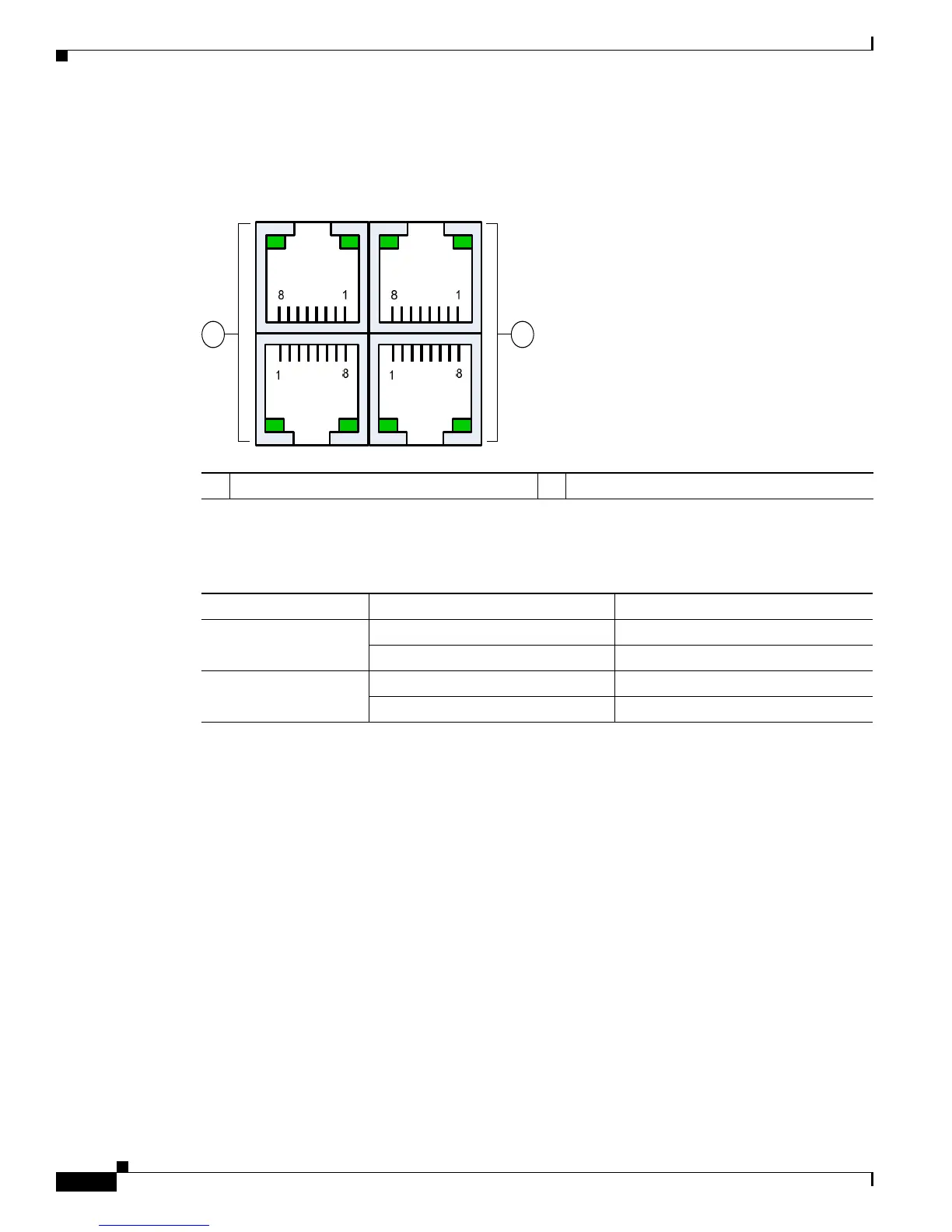

Figure 1-1 Ethernet Connector Port
Table 1-1 lists the LED descriptions for all Ethernet LEDs.
Cisco UCS 6120XP Chassis
The Cisco UCS 6120XP chassis is 1 RU, 1.72 inches tall, 17.3 inches wide and 30.0 inches deep. It
mounts in a standard 19-inch rack (the Cisco R Series Rack is an ideal choice). The chassis has two
power supplies and two fan modules on the front of the chassis, and it has network ports on the rear of
the chassis. The airflow is front to back.
Figure 1-2 shows the front of the Cisco UCS 6120XP.
1 UCS cluster cross connect ports 2 Network management ports
Ta b l e 1-1 Ethernet LED Descriptions
LED Status Description
Left Off No link
Solid green Physical link
Right Off No activity
Blinking green Activity
