Appendix B Cable and Port Specifications
Supported Power Cords and Plugs
AC Power Cord Illustrations
This section contains the AC power cord illustrations.
Figure B-2 SFS-250V-10A-AR
CAB-9K10A-IT
Power Cord, 250 VAC 10 A CEI 23-16 Plug
Italy
8.2 2.5 Figure B-8
CAB-9K10A-SW
Power Cord, 250 VAC 10 A MP232 Plug
Switzerland
8.2 2.5 Figure B-9
CAB-9K10A-UK
Power Cord, 250 VAC 10 A BS1363 Plug (13 A
fuse)
United Kingdom
8.2 2.5 Figure B-10
CAB-AC-250V/13A
Power Cord, 250 VAC 13 A IEC60320 Plug
North America
6.6 2.0 Figure B-11
CAB-N5K6A-NA
Power Cord, 250 VAC 13 A NEMA 6-15 Plug,
North America
8.2 2.5 Figure B-12
CAB-C13-C14-JMPR
Cabinet Jumper Power Cord, 250 VAC 13 A,
C13-C14 Connectors
2.2 0.7 Figure B-13
Table B-3 Power Cords for the Cisco UCS 6100 Series Fabric Interconnects (continued)
Description
Length
Power Cord Reference
IllustrationFeet Meters

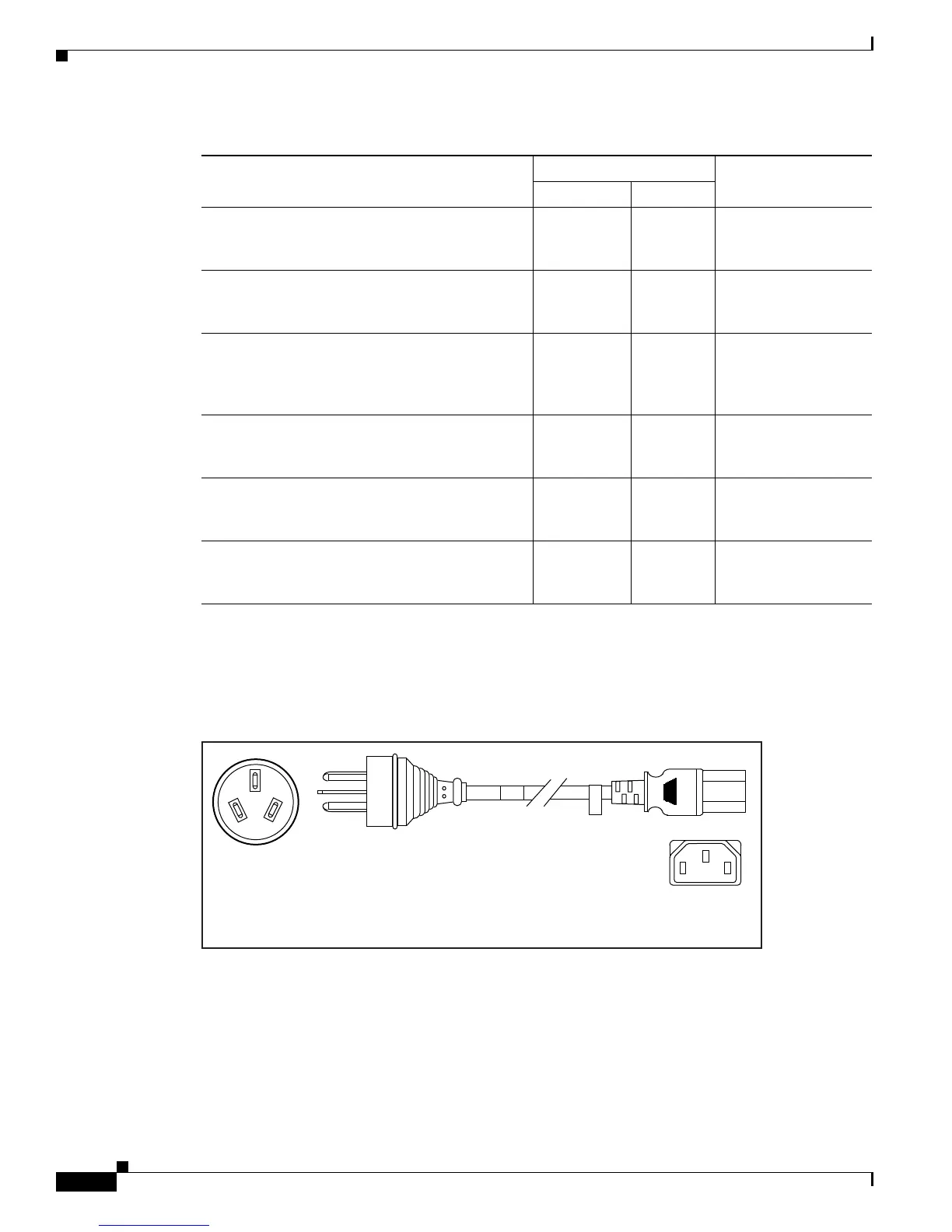

186571
2500 mm
Cordset rating: 10 A, 250/500 V MAX
Length: 8.2 ft
Plug:
EL 219
(IRAM 2073)
Connector:
EL 701
(IEC60320/C13)
