Chapter 1 Product Overview
Power Supply
Figure 1-20 shows how ports are numbered and grouped by function for both the fixed ports and the
Ethernet expansion module ports.

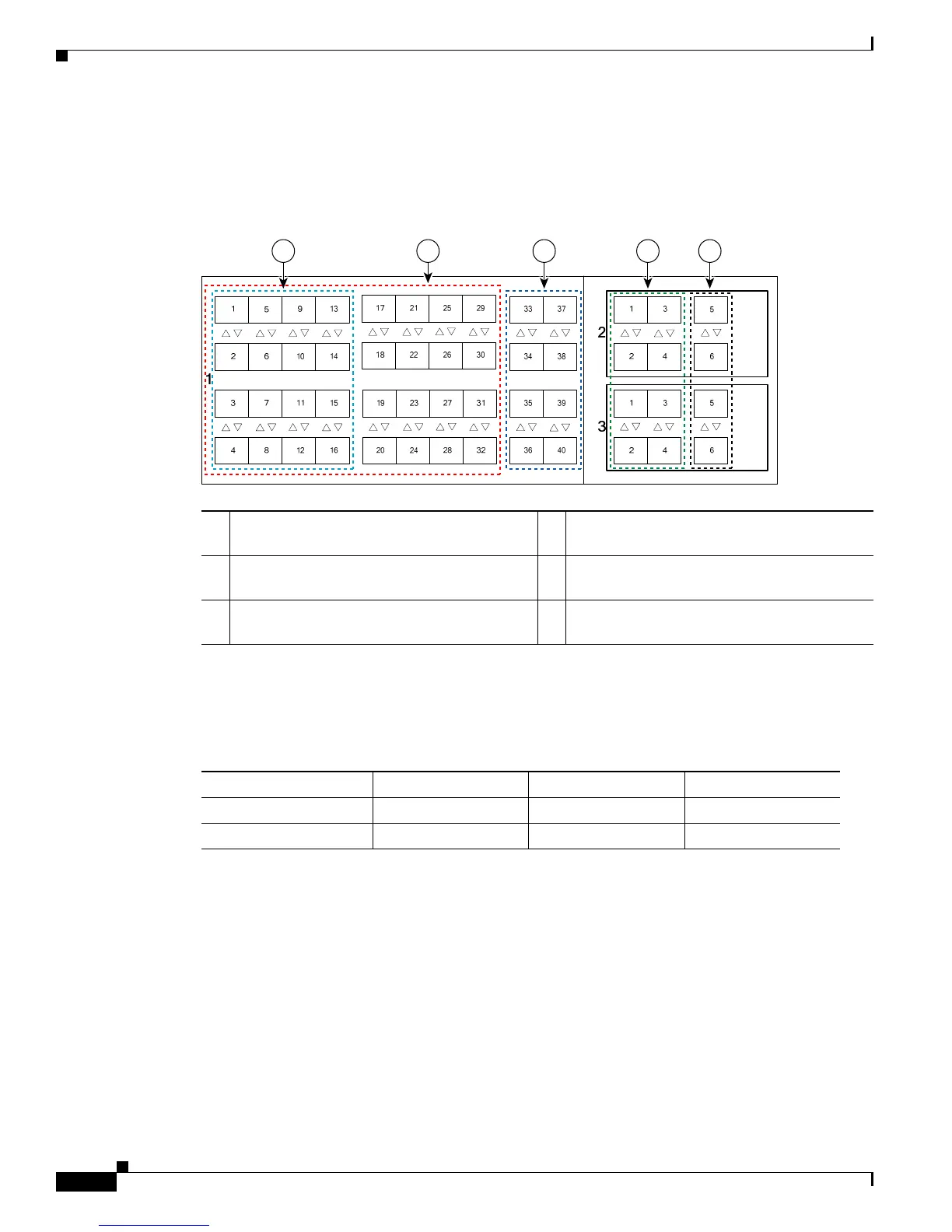

Figure 1-20 Port Numbering of the Cisco UCS 6140XP Configured with the N10-E0600 Expansion
Module
Power Supply
The fabric interconnect uses a front-end power supply. The chassis has slots for two power supplies. Two
power supplies can be used for redundancy, but the fabric interconnect is fully functional with one power
supply.
Figure 1-21 shows the 550 W power supply, which has two LEDs: one for power status and one
for failure condition. Figure 1-22 shows the 750 W power supply, which has two LEDs: one for power
status and one for failure condition.
A Group 1/ports 1 through 16: 10-Gigabit or
1
GigabitEthernet capable Encrypted ports
D Groups 2 and 3/ ports 1 through 4: Encrypted
Ethernet ports
B Group 1/ports 1 through 32: 10-Gigabit
Unencrypted Ethernet ports
E Groups 2 and 3/ ports 5 through 6:
Unencrypted Ethernet ports
C Group 1/ports 33 through 40: Encrypted
Ethernet ports
Ta b l e 1-2 Power Supply Models
Cisco PID Fabric Interconnect AC Source Wattage
N10-PAC1-550W = Cisco UCS 6120XP 110 VAC 550
N10-PAC2-750W= Cisco UCS 6140XP 110 VAC 750
