1-8
Cisco UCS 6100 Series Fabric Interconnect Hardware Installation Guide
OL-20036-02
Chapter 1 Product Overview
Expansion Modules
N10-E0600
The N10-E0600 expansion module supports 6 10G SFP+ based uplink connections. Figure 1-10 shows
the N10-E0600 expansion module.

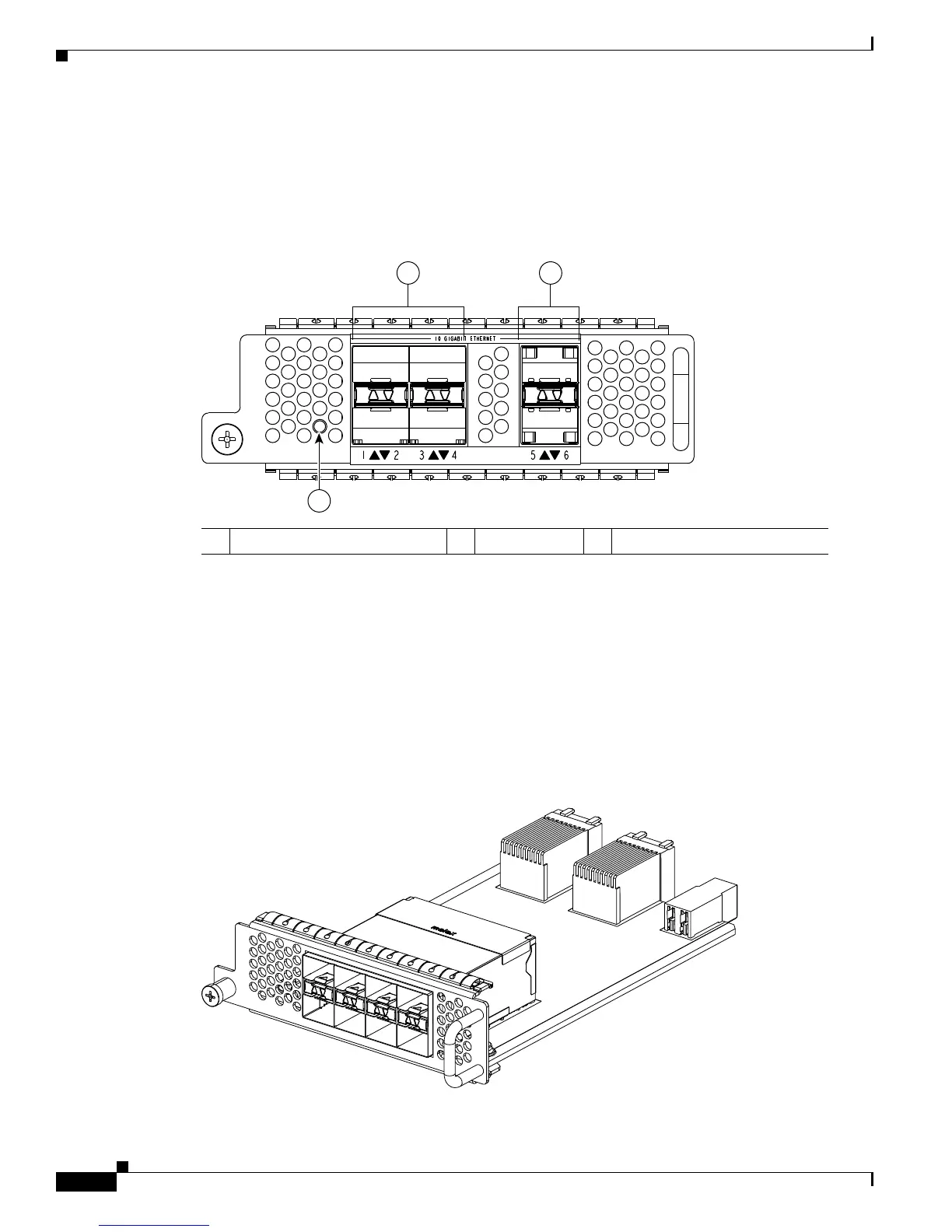

Figure 1-10 N10-E0600 Expansion Module
See Figure 1-15 for an illustration of how ports are grouped and numbered on the Ethernet expansion
module.
N10-E0080
The N10-E0080 expansion module supports 8 1/2/4G Fibre Channel, SFP-based uplink connection.
Figure 1-11 shows the N10-E0080 expansion module. Figure 1-12 shows LED and port locations for the
N10-E0080 expansion module.
Figure 1-11 N10-E0080 Expansion Module
1 Four 10-Gigabit Ethernet ports 2 Module LED 3 Two 10-Gigabit Ethernet ports
186259
12
3
4
5
6
10 GIGABIT ETHERNET
1 3
2
189953
