Cisco UCS 6100 Series Fabric Interconnect Hardware Installation Guide
OL-20036-02
Chapter 1 Product Overview
Expansion Modules
Figure 1-12 Front of the N10-E0080 Expansion Module
N10-E0060
The N10-E0060 expansion module supports 6 1/2/4/ 8 G Fibre Channel, SFP-based uplink connections.
Figure 1-11 shows the N10-E0060 expansion module. Figure 1-12 shows LED and port locations for the
N10-E0060 expansion module.
Figure 1-13 N10-E0060 Expansion Module

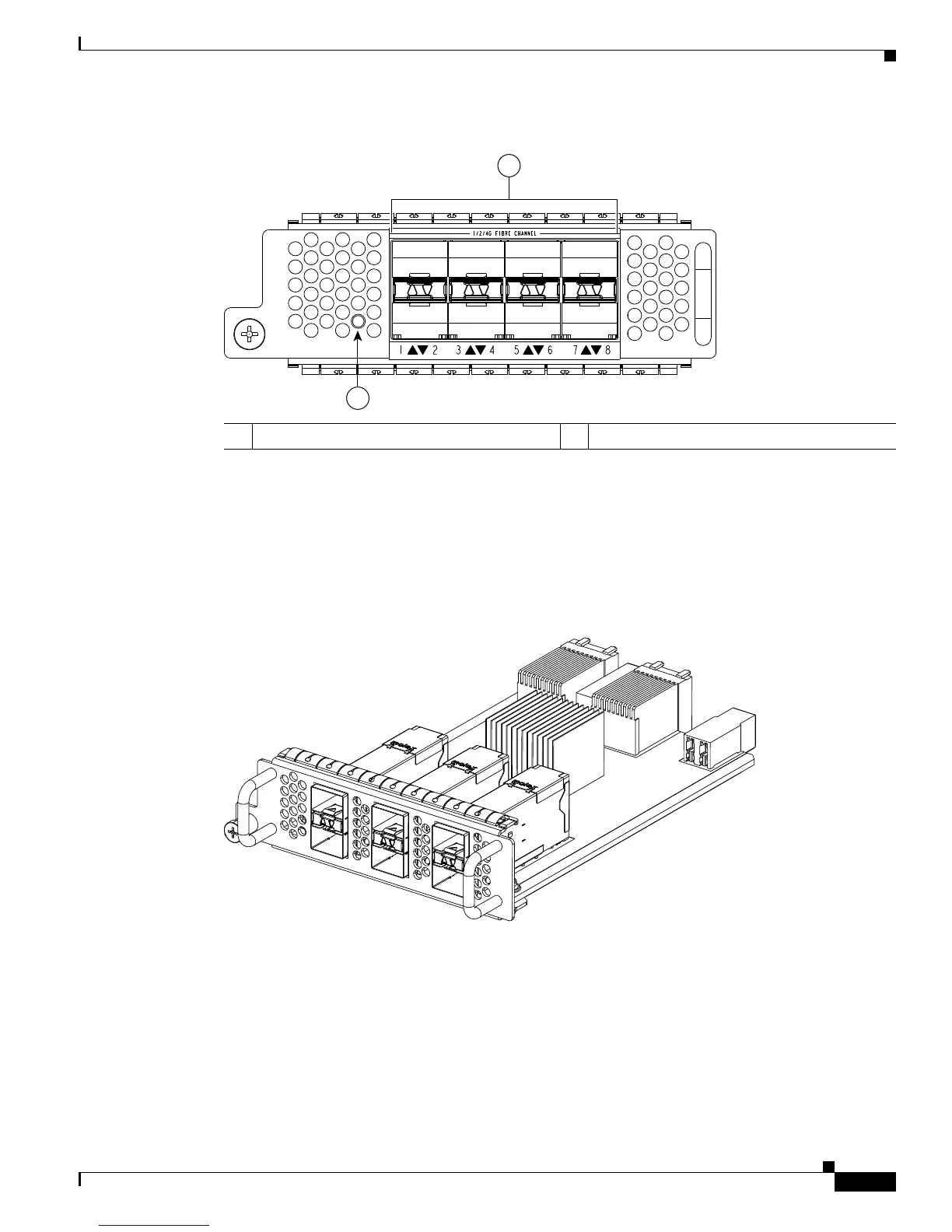

1 Eight 1-, 2-, 4-Gbps Fibre Channel ports 2 Module LED
189954
2
1
2
3
4
5
6
7
8
1
196118
