Send document comments to ucs-docfeedback@cisco.com
1-7
Cisco UCS 6100 Series Fabric Interconnect Hardware Installation Guide
OL-20036-02
Chapter 1 Product Overview
Expansion Modules
N10-E0440
The N10-E0440 supports four SFP+ transceiver modules and four 1-, 2-, 4-Gbps Fibre Channel
transceivers. The Fibre Channel plus Ethernet expansion module is a field-replaceable unit (FRU).

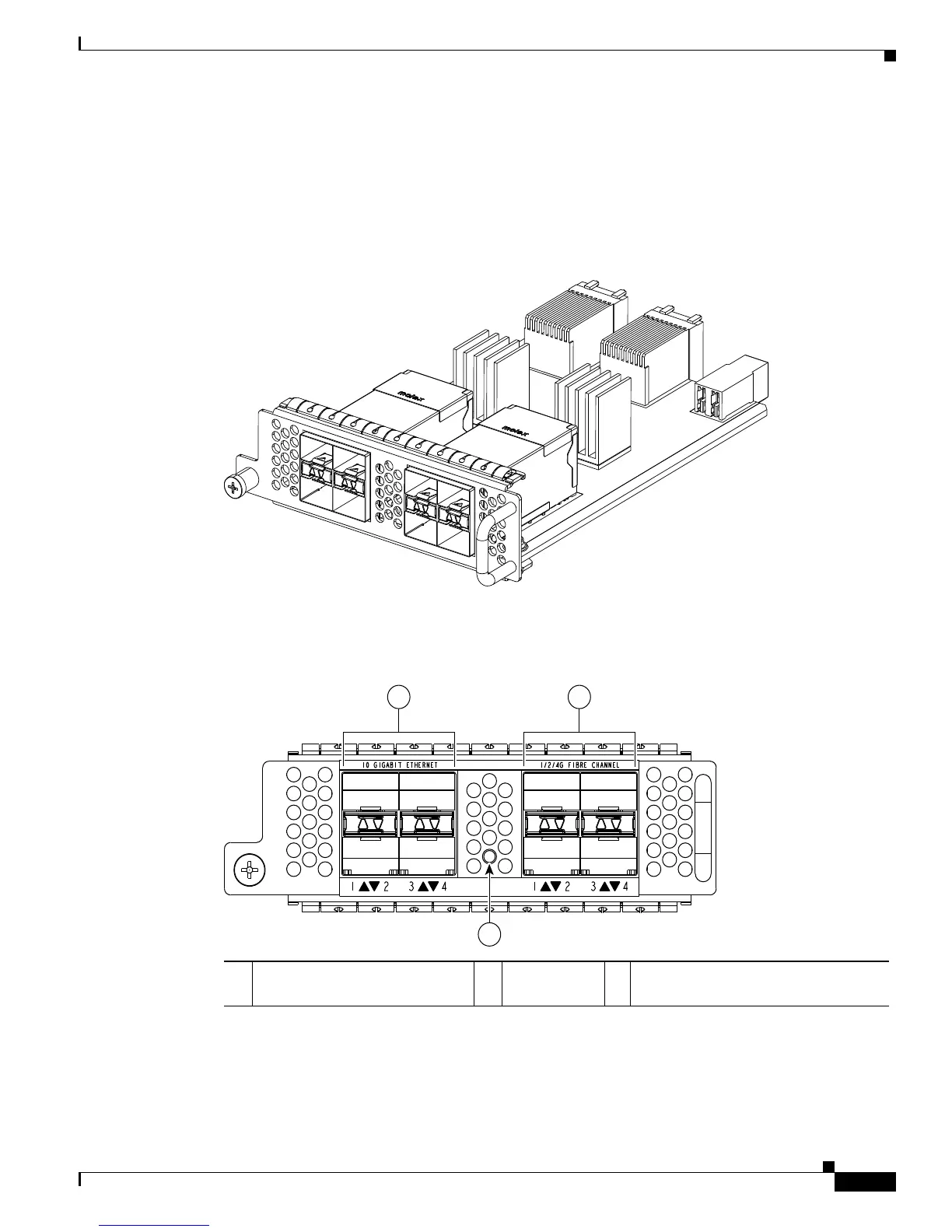

Figure 1-8 shows the Fibre Channel plus Ethernet expansion module.
Figure 1-8 N10-E0440 Expansion Module
Figure 1-9 shows the front of the Fibre Channel plus Ethernet expansion module, and shows how ports
are numbered on the Fibre Channel plus Ethernet expansion module.
Figure 1-9 Front of the N10-E0440 Expansion Module
186384
1 Four 10-Gigabit Ethernet ports 2 Module LED 3 Four 1, 2, or 4 Gbps Fibre Channel
ports
1234 1234
10 GIGABIT ETHERNET
1/2/4G FIBRE CHANNEL
186258
1 3
2
