Send document comments to ucs-docfeedback@cisco.com
1-6
Cisco UCS 6100 Series Fabric Interconnect Hardware Installation Guide
OL-20036-02
Chapter 1 Product Overview
Expansion Modules

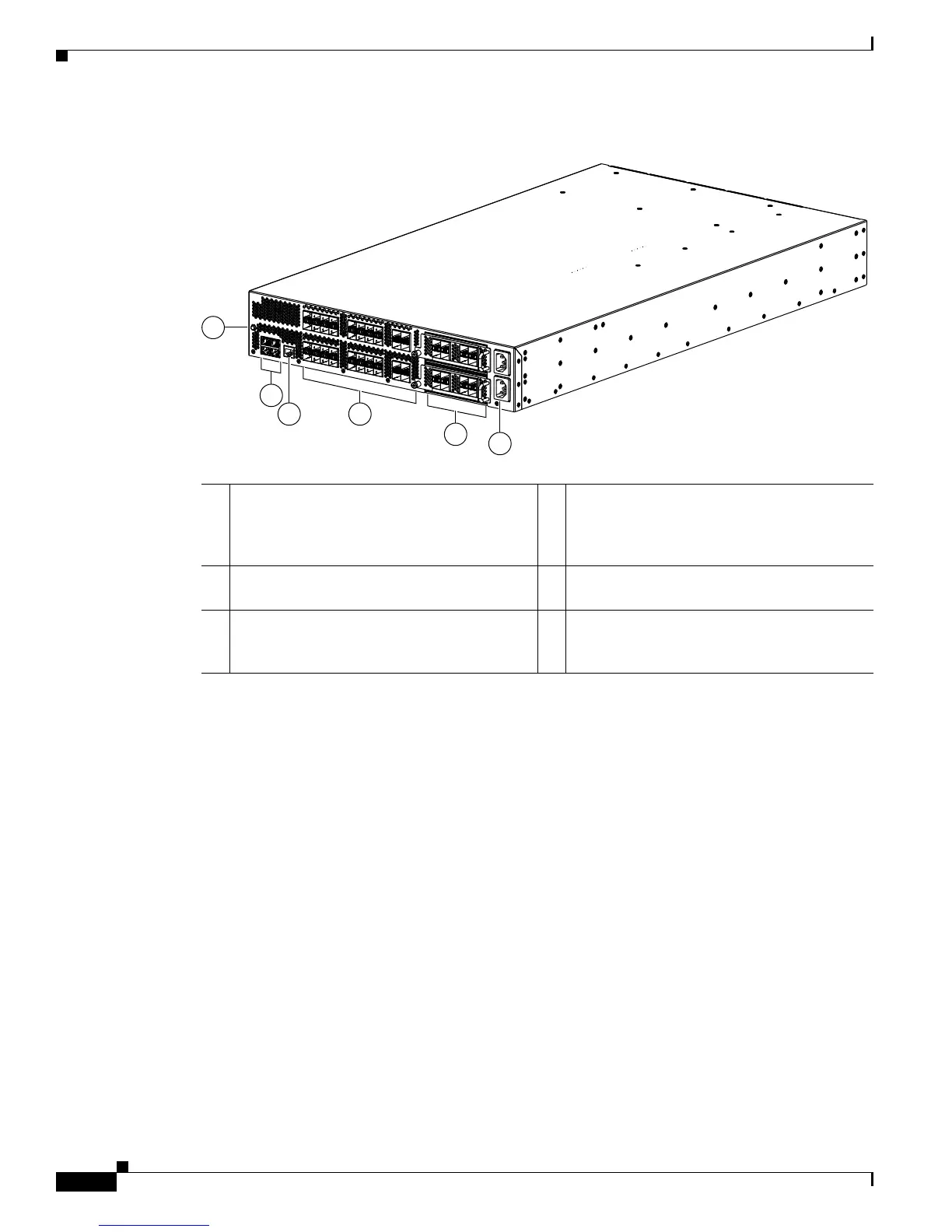

Figure 1-7 Cisco UCS 6140XP Rear View
Expansion Modules
Expansion modules allow Cisco UCS 6100 Series Fabric Interconnect to be configured as cost-effective
10-Gigabit Ethernet fabric interconnects and as I/O consolidation platforms with native Fibre Channel
connectivity. The Cisco UCS 6120XP has one slot for an optional uplink expansion module. The Cisco
UCS 6140XP has two slot for an optional uplink expansion module.There are several modules that can
be accommodated in this slot:
• N10-E0440 provides 4 10G SFP+, and 4 Fibre Channel 1/2/4G SFP-based uplink connections. The
10GE ports are encryption capable.
• N10-E0600 provides 6 10G SFP+ based uplink connections.
• N10-E0080 provides 8 1/2/4 G Fibre Channel, SFP-based uplink connection.
• N10-E0060 provides 6 8/4/2/1 G Fibre Channel uplink connections
The chassis supports hot swapping of the expansion modules. If the expansion modules are not in place,
a cover plate should be used to ensure proper airflow in the chassis.
1 System status LED 2 Ethernet connector with two cross-connect
ports on the left (top and bottom), and two
network management ports on the right (top
and bottom)
3 Console port 4 40 fixed SFP+ 10-Gigabit Ethernet ports (up
to 16 can be 1G SFP)
5 Expansion modules, shown here with two
4-port Fibre Channel plus 4-port 10-Gigabit
Ethernet expansion modules
6 AC power connectors
