B-2
Cisco UCS 6100 Series Fabric Interconnect Hardware Installation Guide
OL-20036-02
Appendix B Cable and Port Specifications
Console Cable
Console Cable
The console cable has an RJ-45 connector on one end and a DB9 connector on the other; this cable is
used to connect into the RS-232 console (see
Figure B-1).

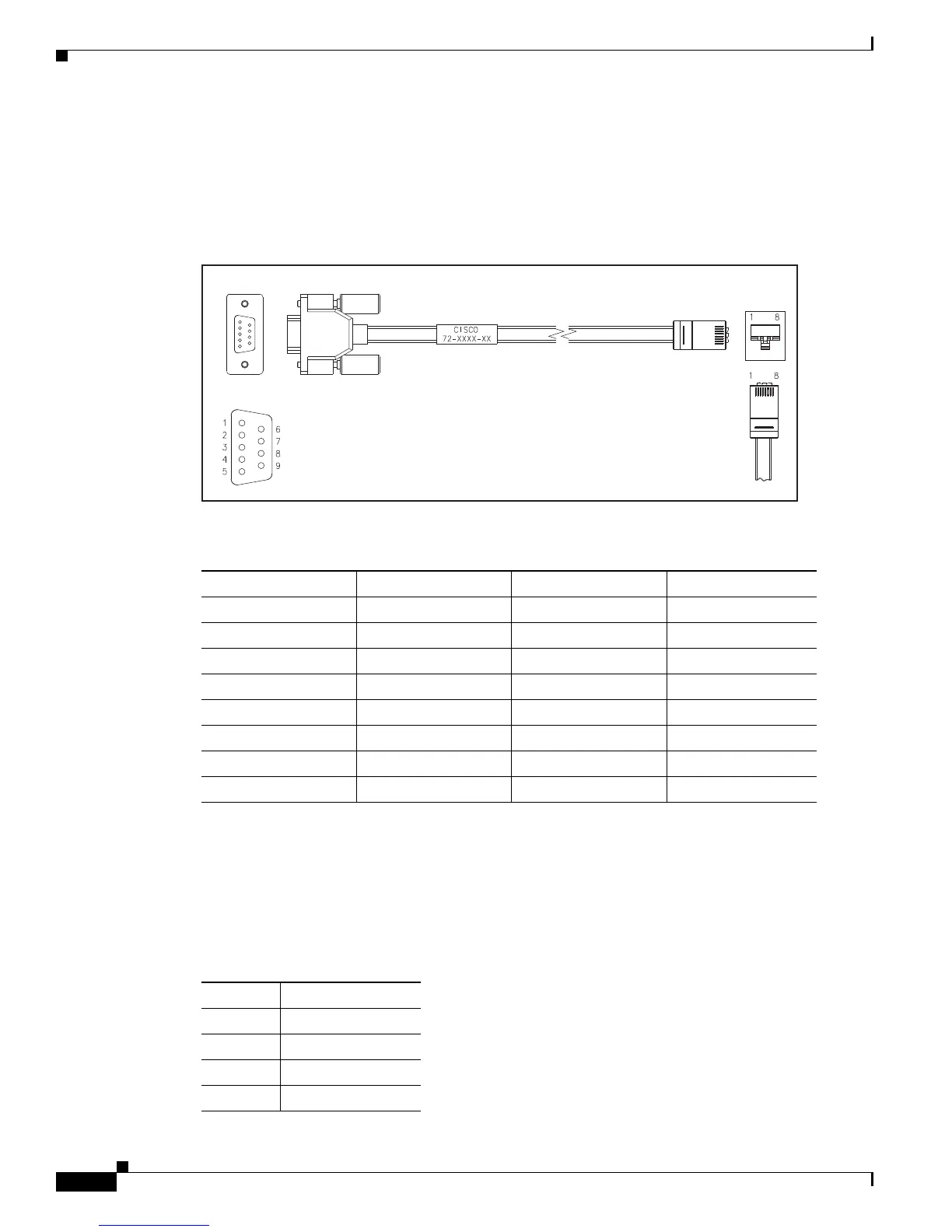

Figure B-1 Console Cable
Table B-1 lists the pinouts for the RJ-45 connector on the console cable.
Console Port
The console port is an asynchronous RS-232 serial port with an RJ-45 connector.
Table B-2 lists the pinouts for the console port on the Cisco UCS 6100 Series Fabric Interconnects.
187491
Ta b l e B-1 Cable Connector Pinouts
Signal Name P1, P1-45 Pins P2, DB-9 Pins Signal Name
RTS 1 8 CTS
DTR 2 6 DSR
TXD 3 2 ZXD
GND 4 5 GND
GND 5 5 GND
ZXD 6 3 TXD
DSR 7 4 DTR
CTS 8 7 RTS
Ta b l e B-2 Console Port Pinouts
Pin Signal
1 RTS
2 DTR
3 TxD
4 GND
