Cisco XR 12000 Series Getting Started Guide

3-32
Cisco IOS XR Getting Started Guide for the Cisco XR 12000 Series Router
OL-24755-01
Chapter 3 Configuring General Router Features
Connecting and Communicating with the Router

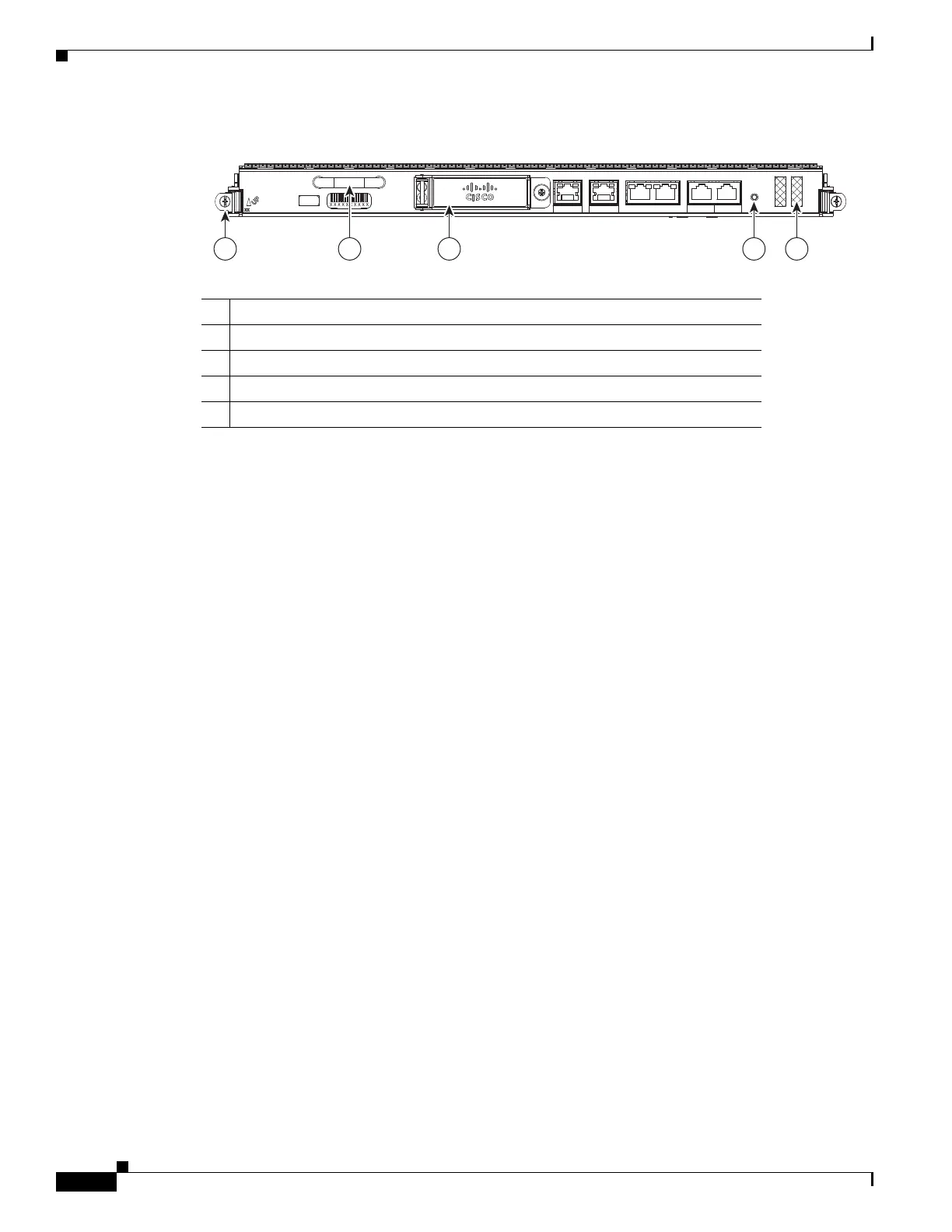

Figure 3-3 Communication Ports on the PRP-3
The following sections describe three ways to connect to the router:
• Establishing a Connection Through the Console Port, page 3-32
• Establishing a Connection Through a Terminal Server, page 3-34
• Establishing a Connection Through the Management Ethernet Interface, page 3-36
Establishing a Connection Through the Console Port
To connect to the router through the console port, perform the following procedure.
SUMMARY STEPS
1. Identify the active RP or DRP.
2. Connect a terminal to the Console port of the active RP or DRP.
3. Start the terminal emulation program.
4. Press Enter.
5. Log in to the router.
1 Ejector Lever
2 Handle
3 External Compact Flash
4 Reset button
5 Alphanumeric LEDs
272359
CONSOLE
AUXBITS 1BITS 0ETH 1ETH 0
PERFORMANCE RP 3
RESET
AC
T
S
I
G
AC
T
S
I
G
D
A
T
A
L
IN
K
D
A
TA
L
INK
1 3 4 52
