— 11 —
4. OPERATION

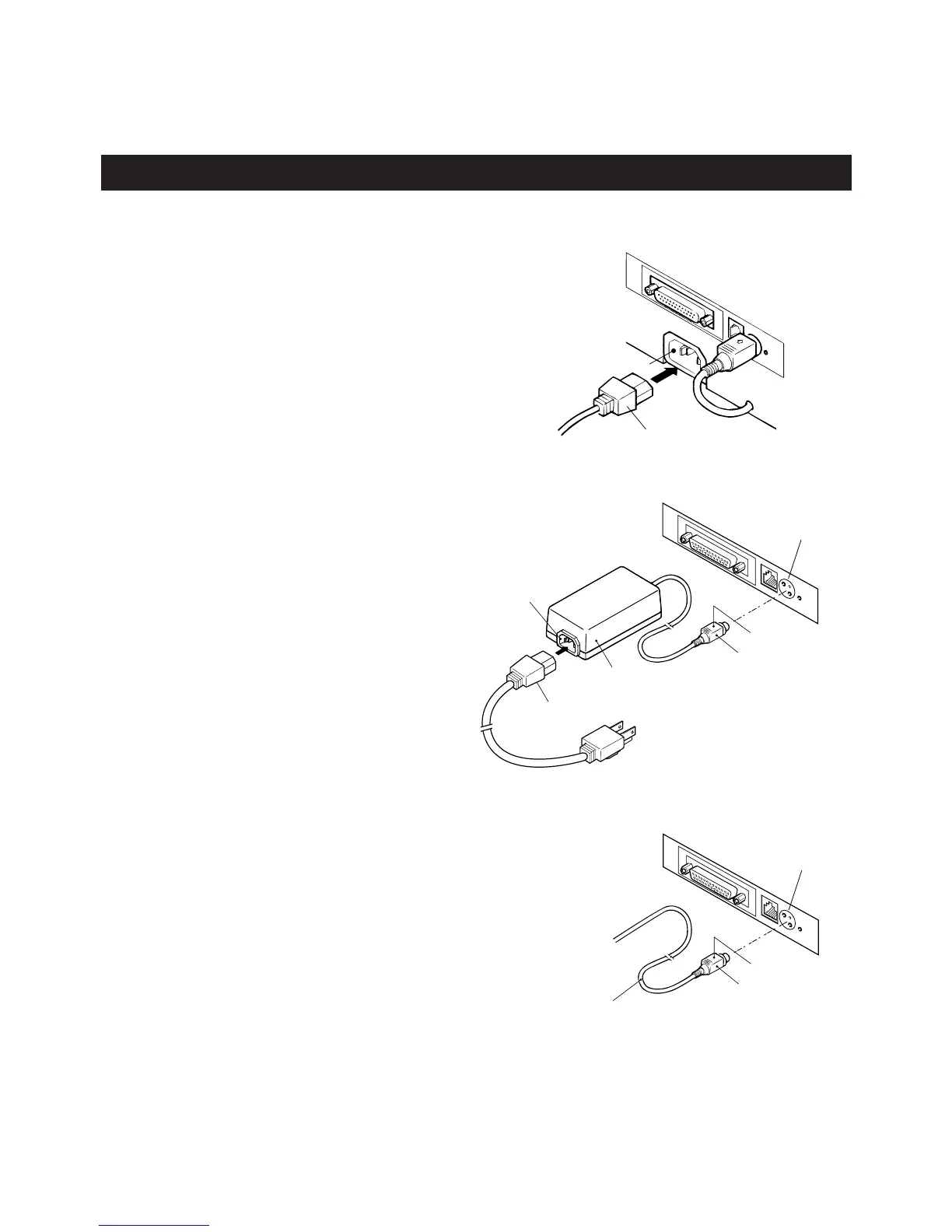

4.1 Connecting the AC Adapter and AC Power Cord
1
Turn off the power of the printer.
2
For the AC adapter type only: With
the flat side of the AC adapter’s
cable connector facing upward,
insert the cable connector into the
power connector on the back side of
the printer.
3
For the DC Input type only: Use a
cable connector which matches the
power connector and can input DC
24 V/1.9 A to the print.
4
Connect the AC power cord to the
inlet of the printer or the AC adapter,
and insert the AC power-cord plug
into a suitable wall outlet.
Power connector
Inlet
AC power cord
AC adapter
Cable connector
Flat side
CBM1000S (Standard type)
CBM1000A (AC adapter type)
Power connector
Cable connector
DC 24 V/1.9 A
(Power Voltage)
Flat side
CBM1000D (DC Input type)
Power connector: TCS7960-53-2010 (Hosiden) or equivalent
Applicable connector: TCP8927-63-1100 (Hosiden) or equivalent
TCP8927-53-1100 (Hosiden) or equivalent
To Next Page
