3. Appendix

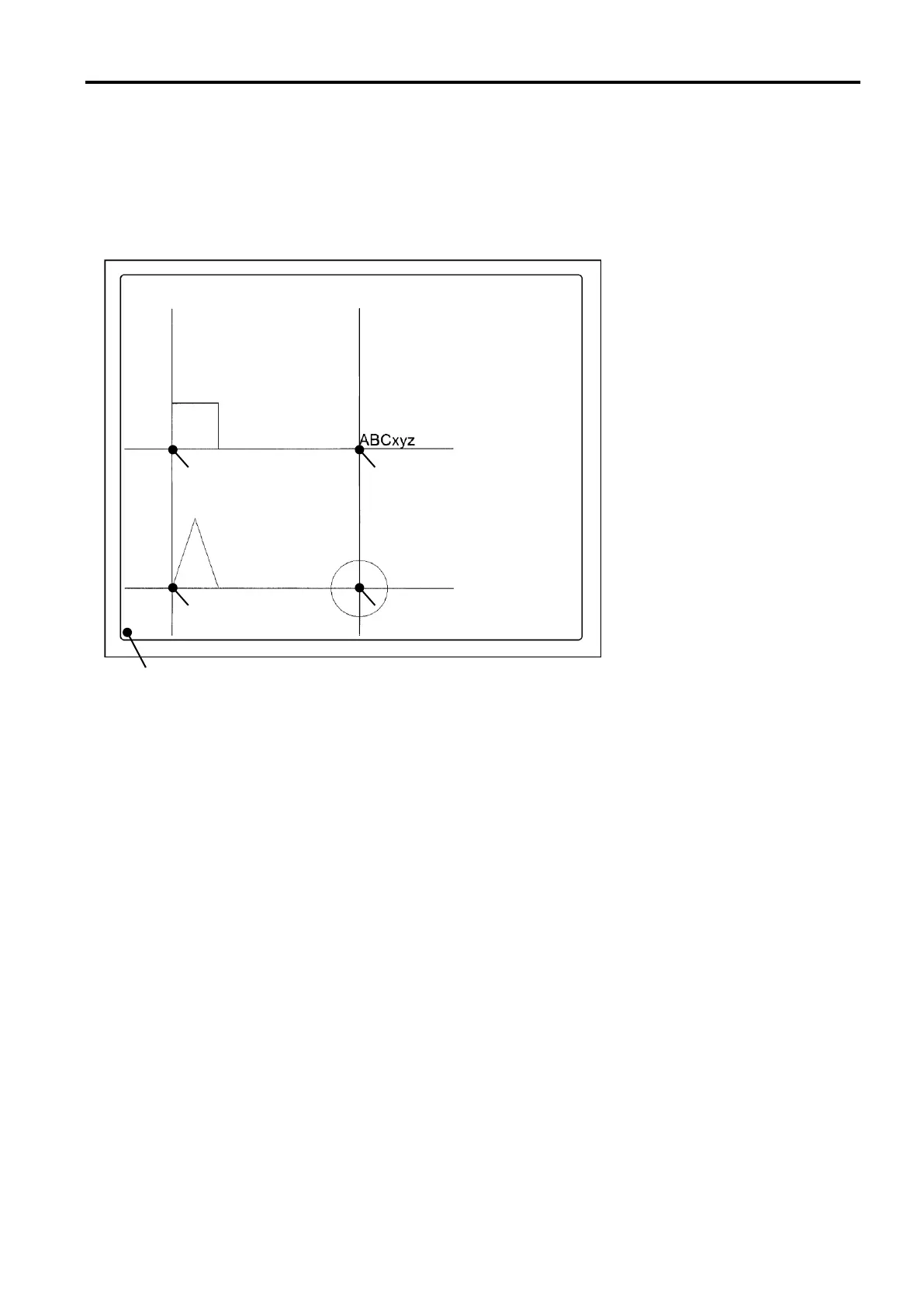

3.1. Specifying object position
The coordinate origin of the label design is at bottom-left. The measurement unit, either inches or
millimeters, is set in the printer. The MeasurementUnit property in the LabelPrinter class allows setting
the measurement unit.
Example
// Polygon
int[] x = new int[] {50, 75, 100};
int[] y = new int[] {50, 125, 50};
design.drawPolygon(x, y);
// Rect
design.drawRect(50, 200, 50, 50, 1);
// Circle
design.drawCircle(250, 50, 30);
// Text
design.drawTextLocalFont("ABCxyz", Typeface.SERIF,
LabelConst.CLS_RT_NORMAL, 100, 100, 12,
LabelConst.CLS_FNT_DEFAULT, 250, 200);
// Line
design.drawLine(0, 200, 350, 200, 1); // Line-1
design.drawLine(50, 0, 50, 350, 1); // Line-2
design.drawLine(0, 50, 350, 50, 1); // Line-3
design.drawLine(250, 0, 250, 350, 1); // Line-4
Origin
(0,0)
Rect
(50, 200)
Polygon
(50,50)
Text
(250, 200)
Circle
(250, 50)

Citizen CL-E321 Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Resolution	203 dpi
Power Supply	100-240V AC, 50/60 Hz
Max Print Width	4.1 inches (104 mm)
Media Sensor	Transmissive and reflective sensor
Interface	USB, Serial (RS-232)
Media Width	1.97 to 4.33 inches (50 to 110 mm)
Supported Barcode Types	Code 39, Code 128, ITF, Codabar, UPC-A, UPC-E, EAN-8, EAN-13, POSTNET
Supported Media Types	Continuous, Die-cut
Media Thickness	0.0635 – 0.254 mm (2.5 - 10 mil)
Print Speed	Up to 8 inches per second
