Citizen CL-E321 User Manual

50
——

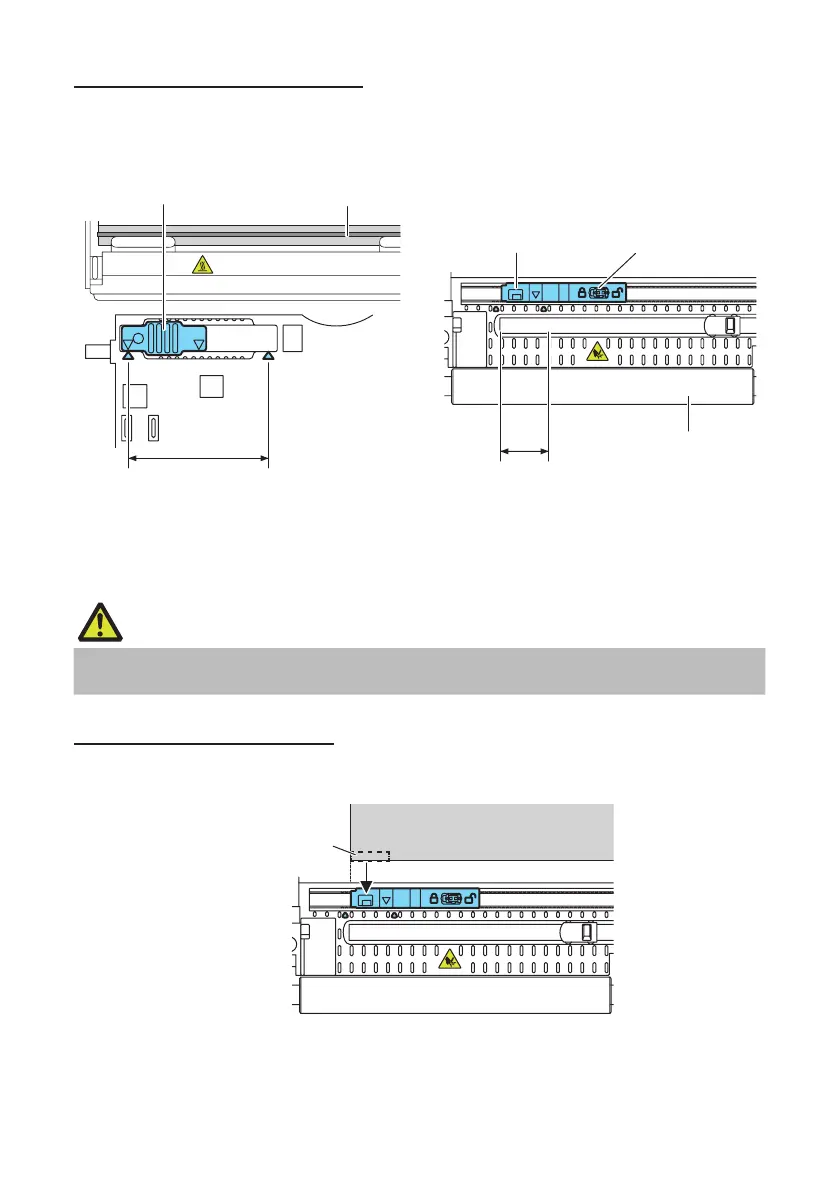

Transmissive Sensor Adjustment
 Adjust the position of the bottom sensor and upper sensor in accordance with the
media width.
Move the bottom sensor and upper sensor by the same number of steps from the position of
the triangle ().
variable range
Upper sensor
variable range
Bottom sensor Bottom sensor lock
Platen roller
Thermal head
The range of bottom sensor and upper sensor horizontal adjustment is 10 steps between the
triangle marks ().
Use a pen or other object with a narrow tip to unlock the bottom sensor and then reposition it.
Lock the sensor in place once the new position has been determined.
CAUTION
 The bottom sensor and upper sensor must be in alignment with each other.
 Attempting to move the sensor while still locked may damage it.
Reflective Sensor Adjustment
 Set the bottom sensor at a position so that the center of the sensor window is in align-
ment with the center of the black line.
Media (Face side)
Black mark
(Reverse side)

Citizen CL-E321 Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Resolution	203 dpi
Power Supply	100-240V AC, 50/60 Hz
Max Print Width	4.1 inches (104 mm)
Media Sensor	Transmissive and reflective sensor
Interface	USB, Serial (RS-232)
Media Width	1.97 to 4.33 inches (50 to 110 mm)
Supported Barcode Types	Code 39, Code 128, ITF, Codabar, UPC-A, UPC-E, EAN-8, EAN-13, POSTNET
Supported Media Types	Continuous, Die-cut
Media Thickness	0.0635 – 0.254 mm (2.5 - 10 mil)
Print Speed	Up to 8 inches per second
