Citizen CL-E321 User Manual

76
——
7.3 Conguration Print Mode
This mode is used to print the printer settings conguration when using continuous media mode.
Printing the current settings conguration is a quick way to check the current conguration.

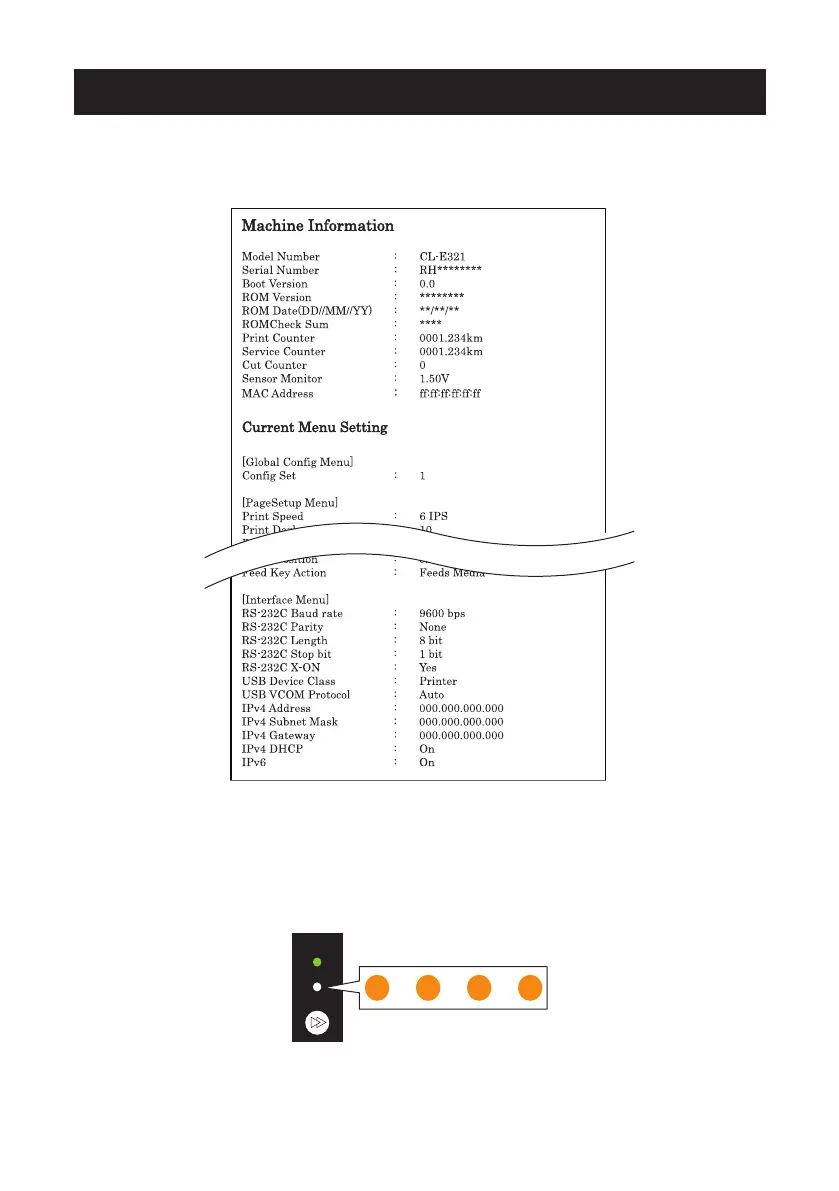

Example of printed settings conguration
Load media and then perform the following procedure.
1. Turn on the power to the printer while pressing and holding the FEED key to start the
printer in special function mode.
2. Press the FEED key 3 times to select conguration print mode.
The buzzer emits 3 short tone.
The status LED also ashes in amber.
3. Press and hold the FEED key for at least 3 seconds.
4. Release the FEED key once the buzzer emits a long tone.
The printer is now in settings print mode.

Citizen CL-E321 Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Resolution	203 dpi
Power Supply	100-240V AC, 50/60 Hz
Max Print Width	4.1 inches (104 mm)
Media Sensor	Transmissive and reflective sensor
Interface	USB, Serial (RS-232)
Media Width	1.97 to 4.33 inches (50 to 110 mm)
Supported Barcode Types	Code 39, Code 128, ITF, Codabar, UPC-A, UPC-E, EAN-8, EAN-13, POSTNET
Supported Media Types	Continuous, Die-cut
Media Thickness	0.0635 – 0.254 mm (2.5 - 10 mil)
Print Speed	Up to 8 inches per second
