- 3 -
1. SETTING UP THE BALANCE
Cut safety tape off. Take balance off the box. Take all necessary to correct
performance of balance elements off the box. After replace balance in place of use
put scale and rest of elements on.

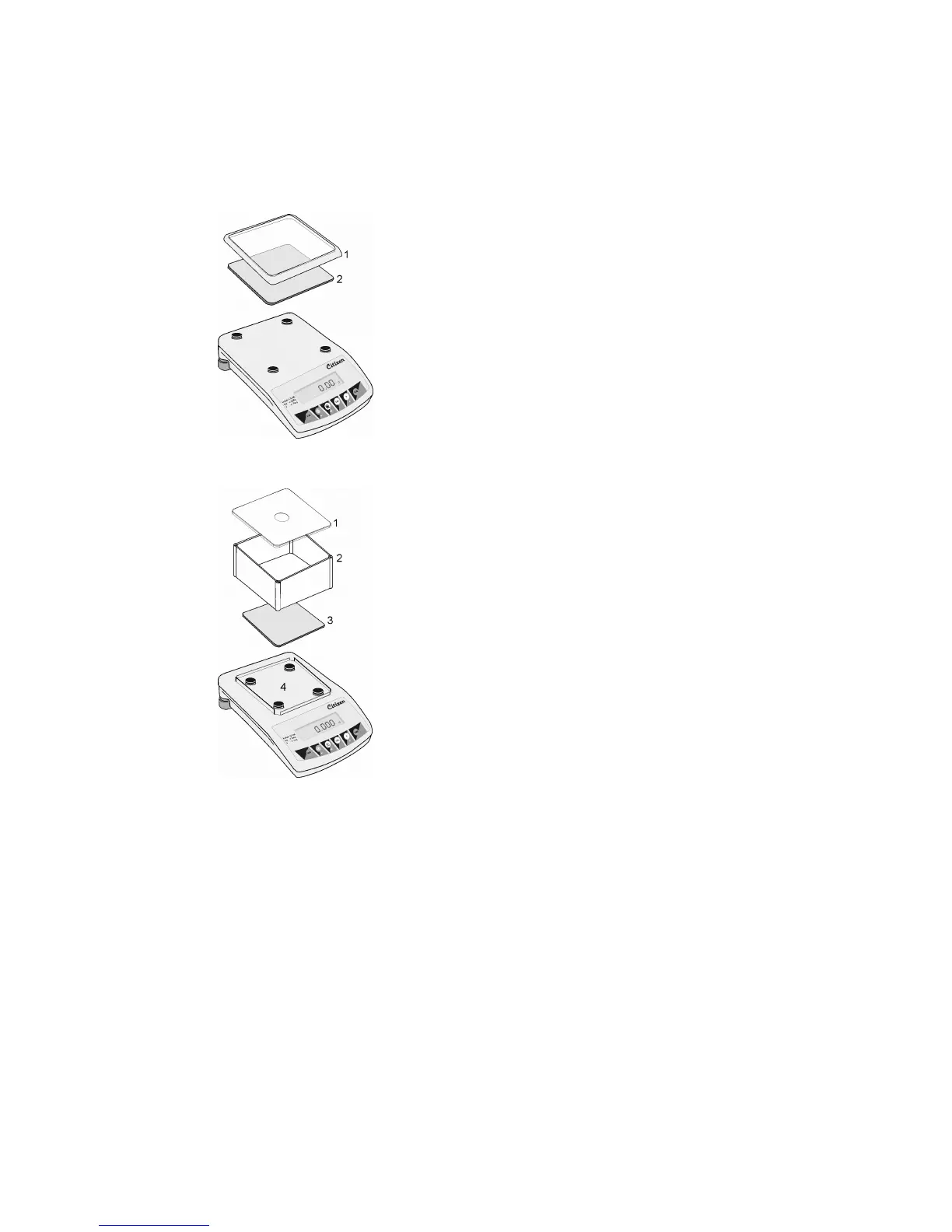

Assembly of elements for scale with precision 10mg:
- Put pan scale (2) on gum mandrels
- Put cover on scale (1) using pins in back part of
balance cover.
- After assembly check if scale touches gum
mandrels
- Turn power supply on
plug in feeder to socket at back of balance
casing
- Display shows digits (test of display) and then
display shows 0.00g
- If indication is not zero press tare key
Assembly elements for scale with precision 1mg:
- Put pan scale (3) on gum mandrels
- Put glass shield on scale (2) using masking
frame which is on balance cover (4), (scale
masking frame must be inside of scale)
- Put upper cover on cover of scale
- After assembly check if scale touches gum
mandrels
- Turn power supply on, plug in feeder to socket
at back of balance casing
- Display shows digits (test of display) and then
dislpay shows 0.000g
- If display doesn’t show zero press tara key
