6-1-4 Teaching (TEACH)
Parameter name Setting value Remarks
Teaching mode (TEACH)
Sets the method for automatic teaching of tolerance.
TCH.1 (One-point) / TCH.2 (Two-point) / TCH.3 (Three-point)
[Default: TCH.1]

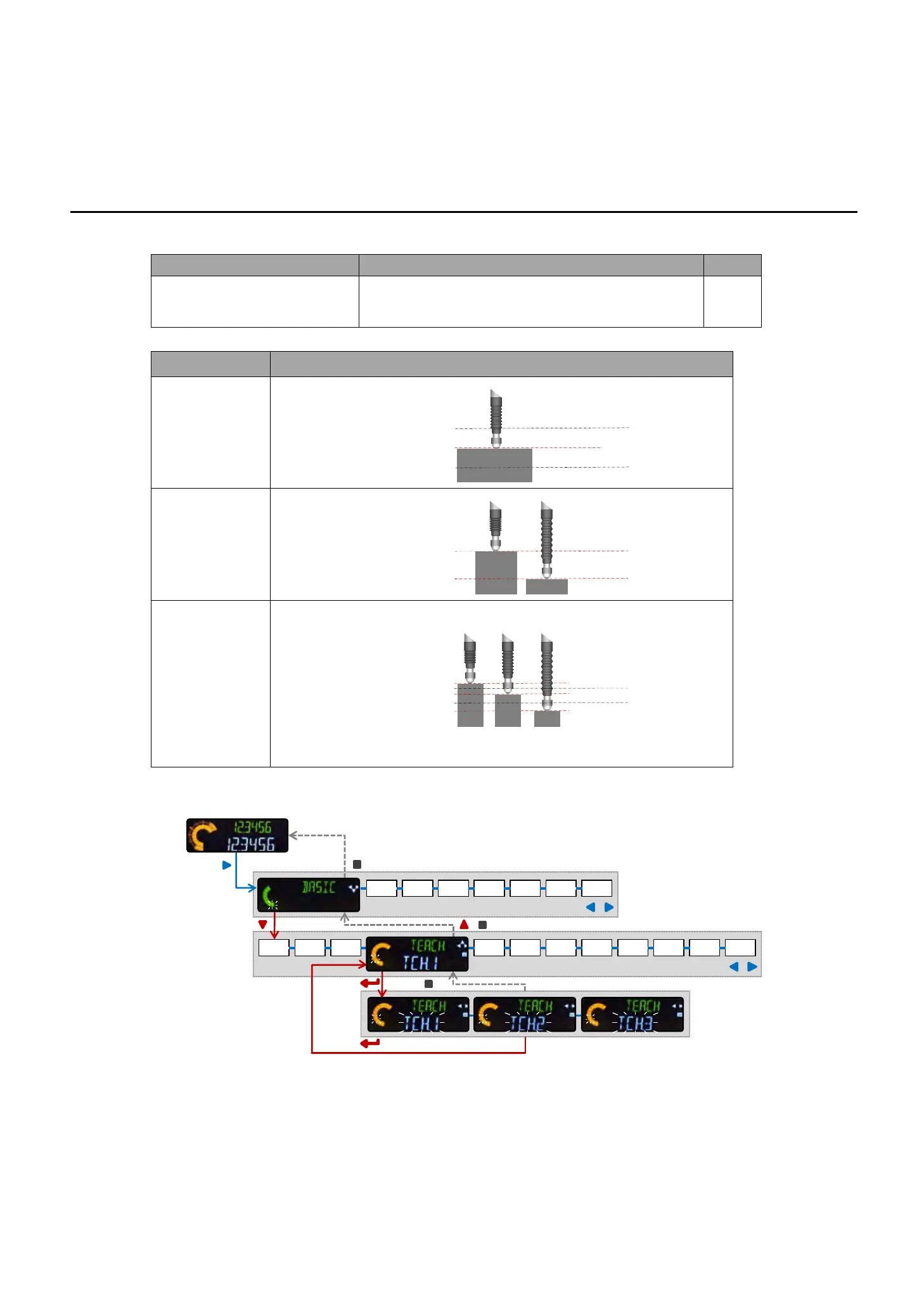

Teaching method Setting
One-point teaching
∗ Initial status
This sets the HIGH and LOW
setting values automatically
using one reference work.
This is used to judge work with
a ±tolerance.
Two-point teaching
This sets the HIGH and LOW
setting values automatically
using two reference works.
This is used to judge work
according to whether it falls
between an upper and lower
limit.
Three-point teaching
This sets the HIGH and LOW
setting values automatically using a
satisfactory work, HIGH defective
work, and LOW defective work.
It assumes the upper limit to be the
median of the satisfactory and
HIGH defective work values, and
the lower limit to be the median of
the satisfactory and LOW defective
work values. This type of teaching
is used to judge work according to
whether it falls between these
upper and lower limits.
Operation procedure
Related information

For details of how to set tolerance for the one-point teaching, refer to the following page.
 For details of the teaching methods, refer to "5-3 Teaching Mode."
■
■
2秒長押し
/
選択 キャンセル
確定
HI.SET LO.SET HYSTER TOL <±> PR.VAL
ADVANC CALC COPY BANK CALIB
PR.OBJ PR.SAVE DIRECT LEVER SPEED OUTPUT
MAINTERESET
Long press
for 2 s
Select
Commit
Cancel
S
etting value
HIGH setting value
LOW setting value
+Tolerance
−Tolerance
+Tolerance = −Tolerance
HIGH setting value
LOW setting value
HIGH setting value
S
etting value 1
S
etting value 2
S
etting value 3
HIGH setting value
= (Setting value 1 + Setting value 2) / 2
LOW setting value
= (Setting value 2 + Setting value 3) / 2
