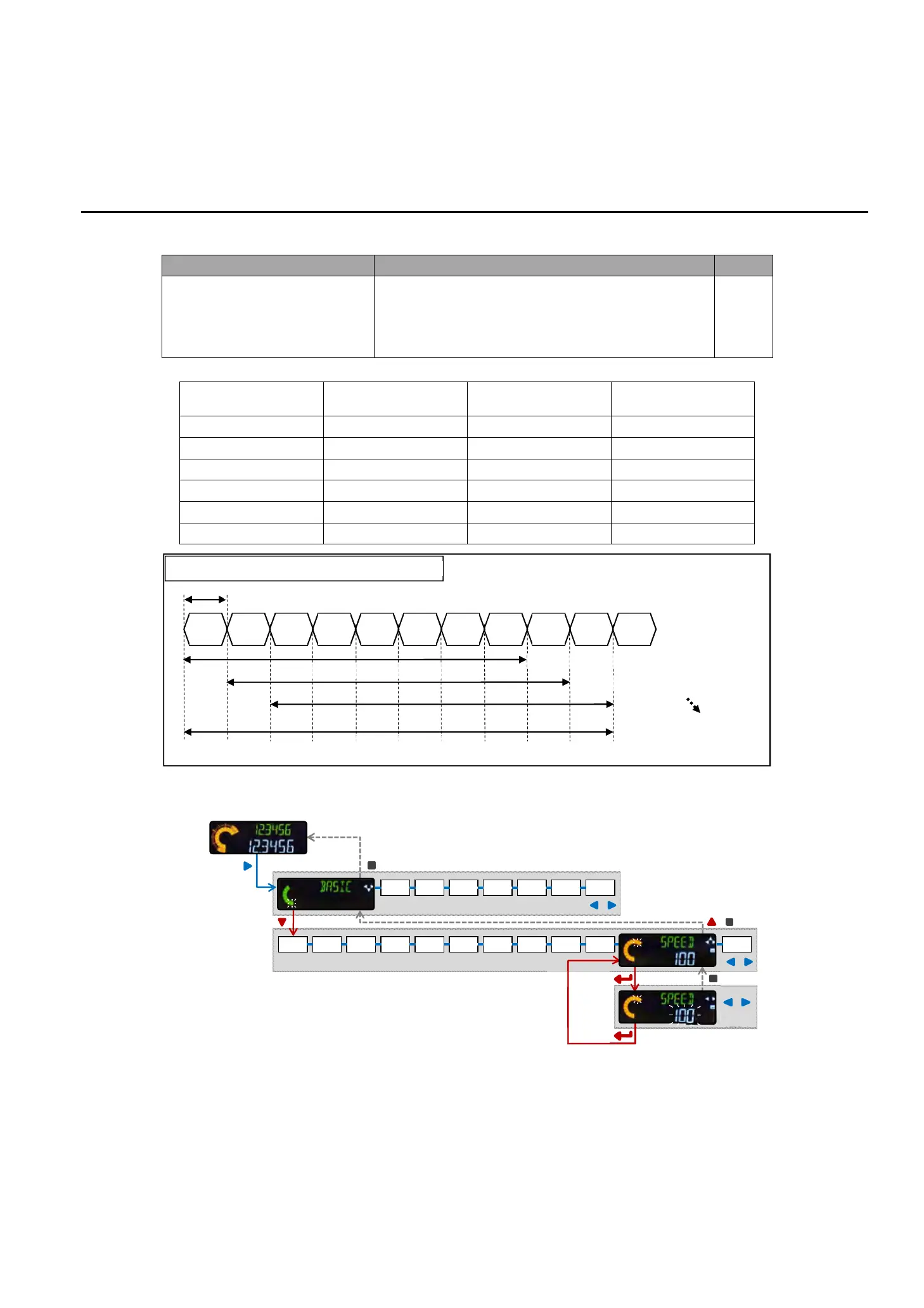

6-1-11 Response Time (SPEED)
Parameter name Setting value Remarks
Response time (SPEED)
Sets the period between the time the sensor head starts
measurement and that at which the measurement value is
determined.
This parameter is effective for stabilizing measurement values.
3 / 5 / 10 / 100 / 500 / 1,000 (ms) [Default: 100]
Response time (ms) No. of cycles per average Averaging time (ms)
Internal value update
period (ms)
3 1 1 1
5 3 3 1
10 8 8 1
100 96 96 4
500 480 480 16
1,000 960 960 32
Operation procedure
Note

When the reset input is turned ON, the display shows an indefinite value "------" until the device
reaches the number of cycles per average.
■
■
When response time is set to 10 ms:
Data
n-7
Data
n-6
Data
n-5
Data
n-4
Data
n-3
Data
n-2
Data
n-1
Data
n
Data
n+1
Data
n+2
Data
n+3
Sampling time (1 ms)
Average over eight cycles → internal value
Average over eight cycles → internal value
Averaging period (8 ms)
Response time (10 ms)
Internal value update
period (1 ms)
2秒長押し
/
選択 キャンセル
選択
確定
HI.SET LO.SET HYSTER TEACH TOL <±>
ADVANC CALC COPY BANK
PR.VAL PR.OBJ PR.SAVE DIRECT LEVER OUTPUT
MAINTECALIB RESET
Long press
for 2 s
Select
Commit
Cancel
Select
