6- 32
6-2-3 External Input
Parameter name Setting value Remarks
External input (EXT.IN)
For input 1/input 2/input 3 of external inputs, selects one of four
input signal types.
P/R/T (Preset/Reset/Trigger)
BANK/P (Bank A/B/Preset)
BANK/R (Bank A/B/Reset)
BANK/T (Bank A/B/Trigger) [Default: P/R/T]
External input Input 1 Input 2 Input 3
P/R/T [Default] Preset Reset Trigger
BANK/P
Bank A Bank B
Preset
BANK/R Reset
BANK/T Trigger

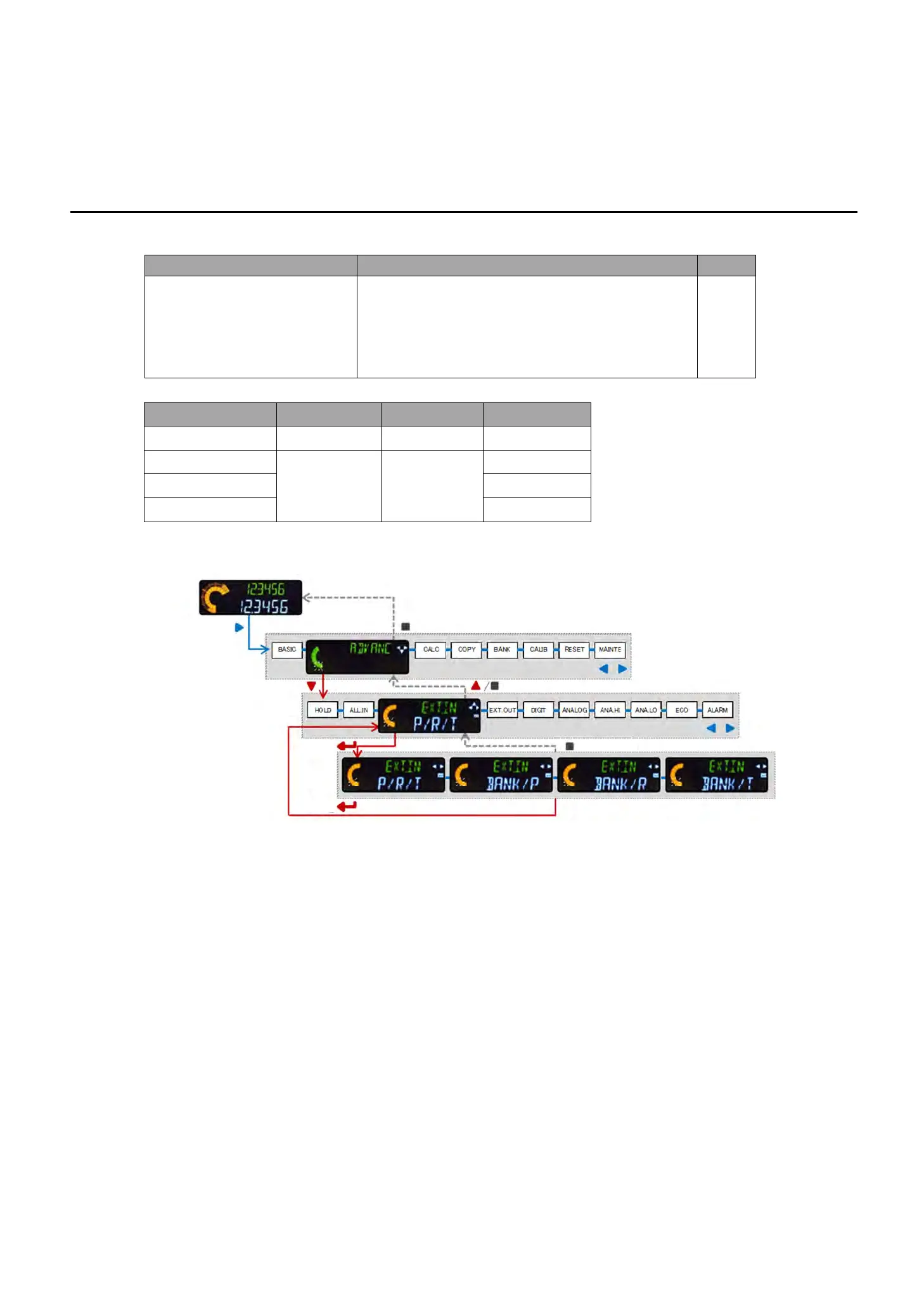

Operation procedure
Note
The ON and OFF times of the preset, reset, and bank inputs must be at least 20 ms.
Banks A and B have to be turned ON in order to select Bank 3. The rising delay time for Banks A
and B must be 8 ms or shorter.
If the Select bank storage parameter is set to ALL, the OFF time of Banks A and B must be at
least 50 ms.
The ON and OFF times of trigger input must be at least 2 ms.
Related information
For details of the input/output circuit, refer to "7-1-1 Input/Output Circuit."
For details of all input, refer to the preceding section.
for 2 s
Select
Commit
