Citizen SA-SD - Basic Settings (BASIC); HIGH Setting Value (HI.SET)

6- 5
6-1 Basic Settings (BASIC)
6-1-1 HIGH Setting Value (HI.SET)
Parameter name Setting value Remarks
HIGH setting value (HI.SET)
Sets a HIGH setting value for pass/fail judgment.
−199.9999 to 199.9999 (mm) [Default: 5.0000]
Operation procedure
Note

Configure the settings such that HIGH setting value > LOW setting value.
Although it is possible to set HIGH setting value < LOW setting value, the GO judgment will not be
output.
Related information

The HIGH setting value can always be displayed on digital display SUB (green).
For details, refer to "5-2 SUB Display Switching Mode."
 The HIGH and LOW setting values can be set by teaching using a master work, upper limit work,
and lower limit work.
For details, refer to "5-3 Teaching Mode."
■
■
■

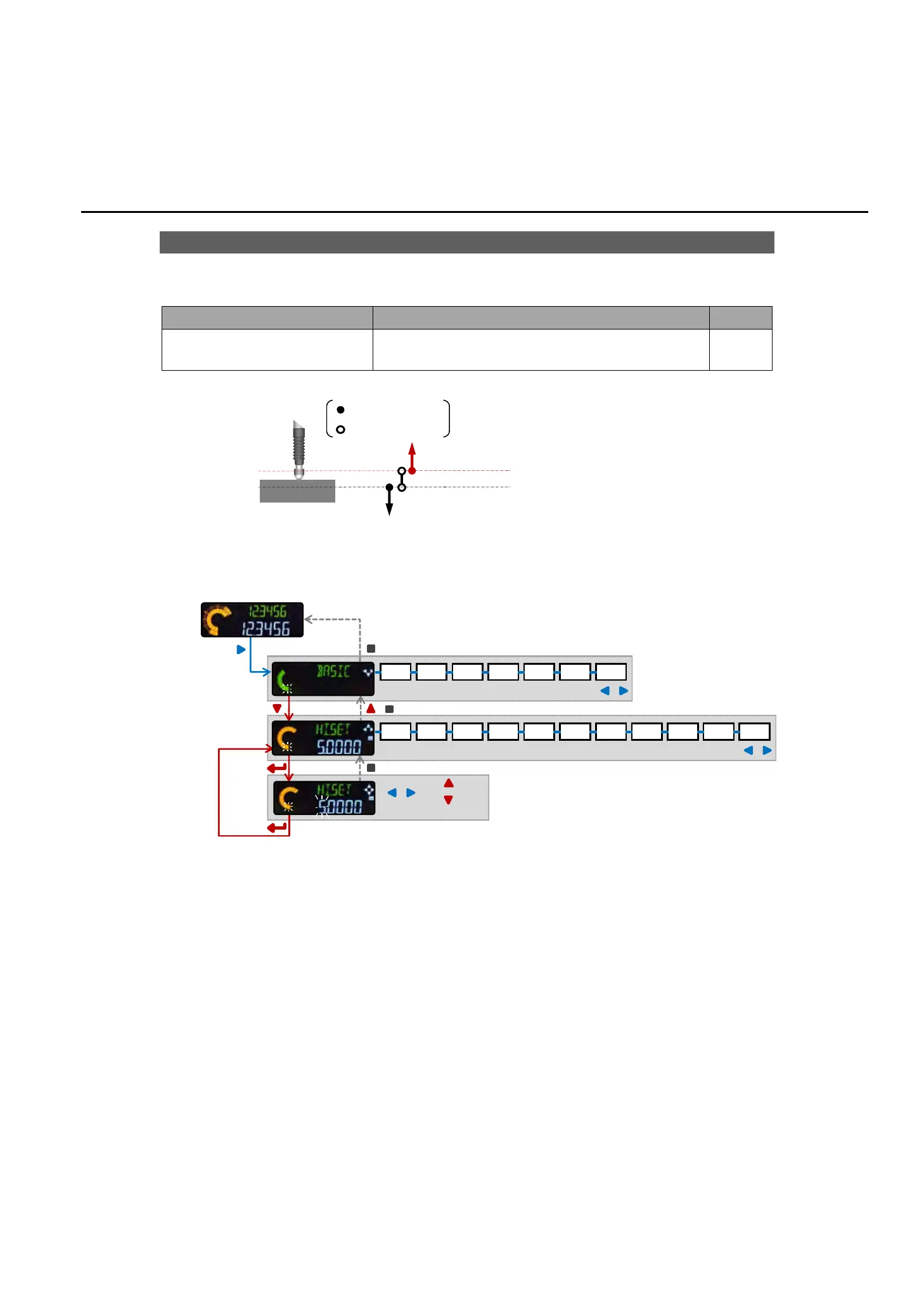

HIGH
GO
LOW
HIGH setting
value
LOW setting value
: Included
: Not included
2秒長押し
/
選択 キャンセル
桁移動 数値変更
確定
LO.SET HYSTER TEACH TOL <±> PR.VAL PR.OBJ PR.SAVE
ADVANC CALC COPY BANK CALIB RESET
DIRECT LEVER SPEED OUTPUT
MAINTE
Long press
for 2 s
Select
Commit
Cancel
Shift between
digits
Change numerical
values
