Citizen SA-SD - Lever Ratio (LEVER)

6- 14
6-1-10 Lever Ratio (LEVER)
Parameter name Setting value Remarks
Lever ratio (LEVER)
If a measurement point is on a lever, the measurement value can
be displayed as detected value × lever ratio.
0.1 to 100.0 [Default: 1.0]

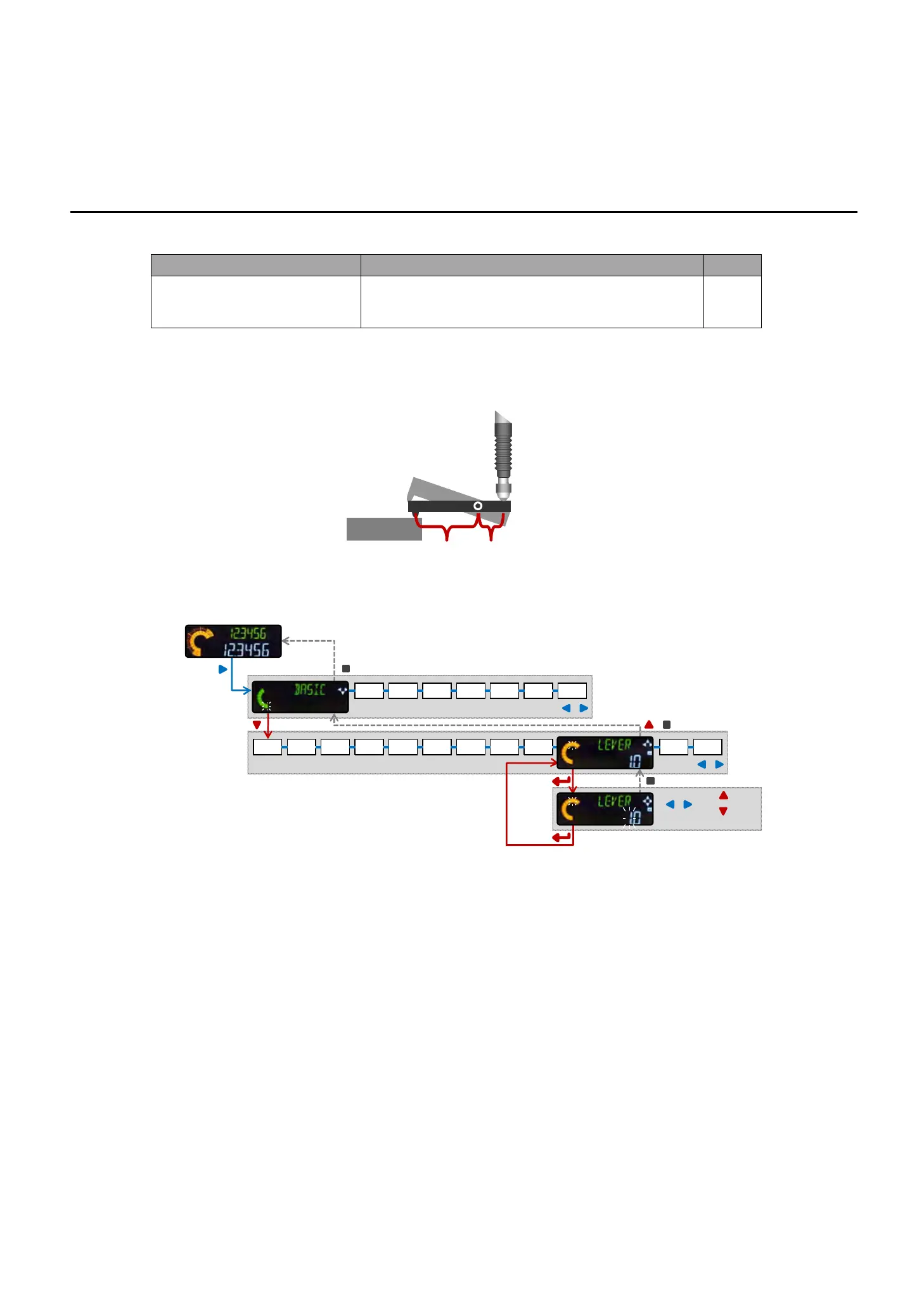

The figure below shows a lever ratio of 2:1.
When the lever ratio is set to "2," the judgment value will be twice a normal measurement value.
Operation procedure
Note

If the lever ratio is set to a value that is out of range, digital display MAIN (white) shows ######.
The display then returns to the lever ratio setting screen, allowing the lever ratio to be set again.
■
■
2秒長押し
/
選択 キャンセル
桁移動 数値変更
確定
HI.SET LO.SET HYSTER TEACH TOL <±>
ADVANC CALC COPY BANK
PR.VAL PR.OBJ PR.SAVE DIRECT SPEED OUTPUT
MAINTECALIB RESET
Long press
for 2 s
Select
Commit
Cancel
Shift between
digits
Change numerical
values
2 : 1
