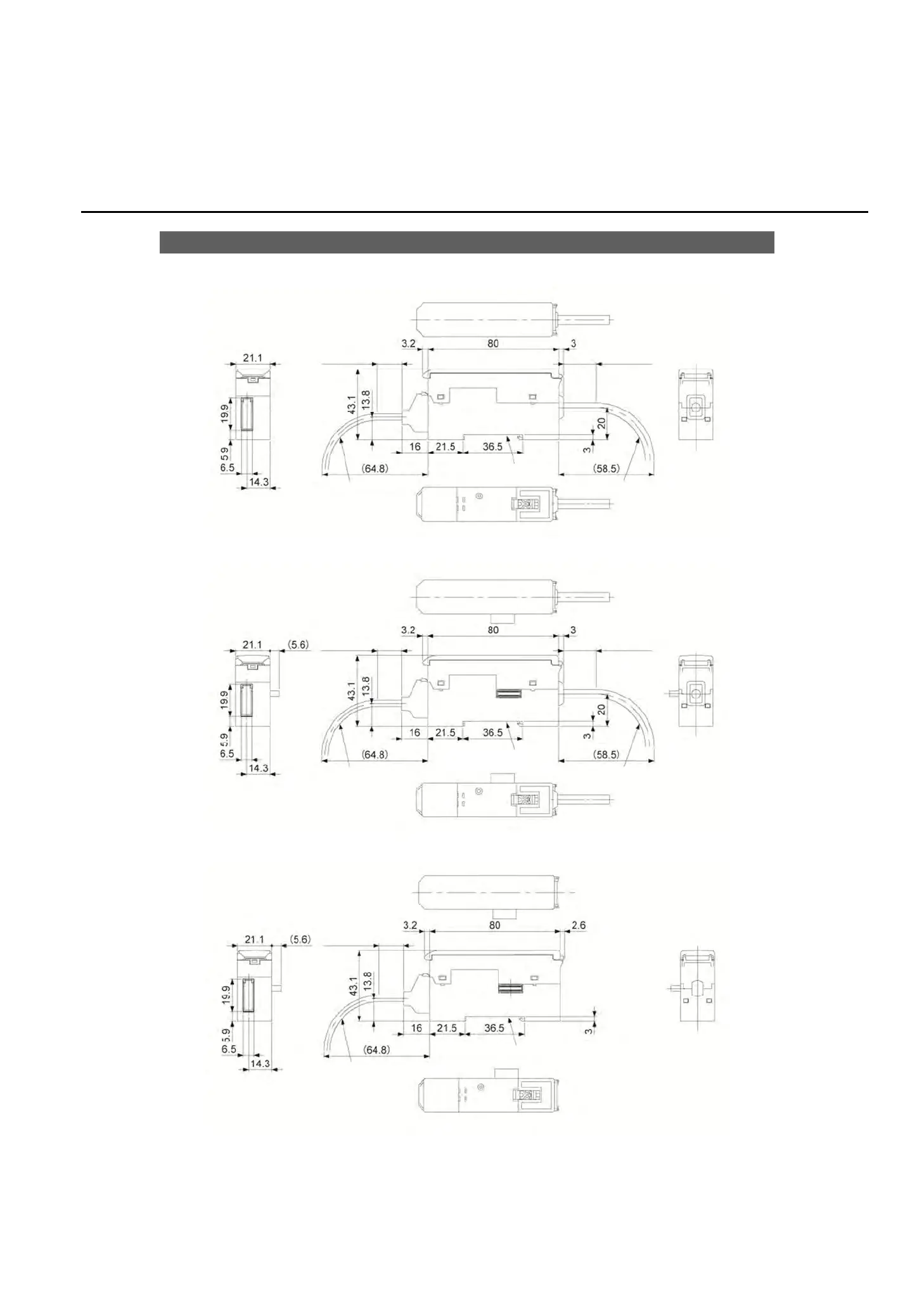

9-2 Outline Dimensional Drawings
SA-SD1AP and SA-SD1AP-P
SA-SD1AC, SA-SD1AC-P, SA-SD1C, and SA-SD1C-P
SA-SDNC
20 mm or more 15 mm or more
R 30 mm or
more
Compliant with 35-
mm
width DIN rail
R 30 mm or
more
20 mm or more
15 mm or more
R 30 mm or
more
Compliant with 35-
mm
width DIN rail
R 30 mm or
more
15 mm or more
R 30 mm or more
Compliant with 35-
mm
width DIN rail
