Citizen SA-SD - External Output

6- 33

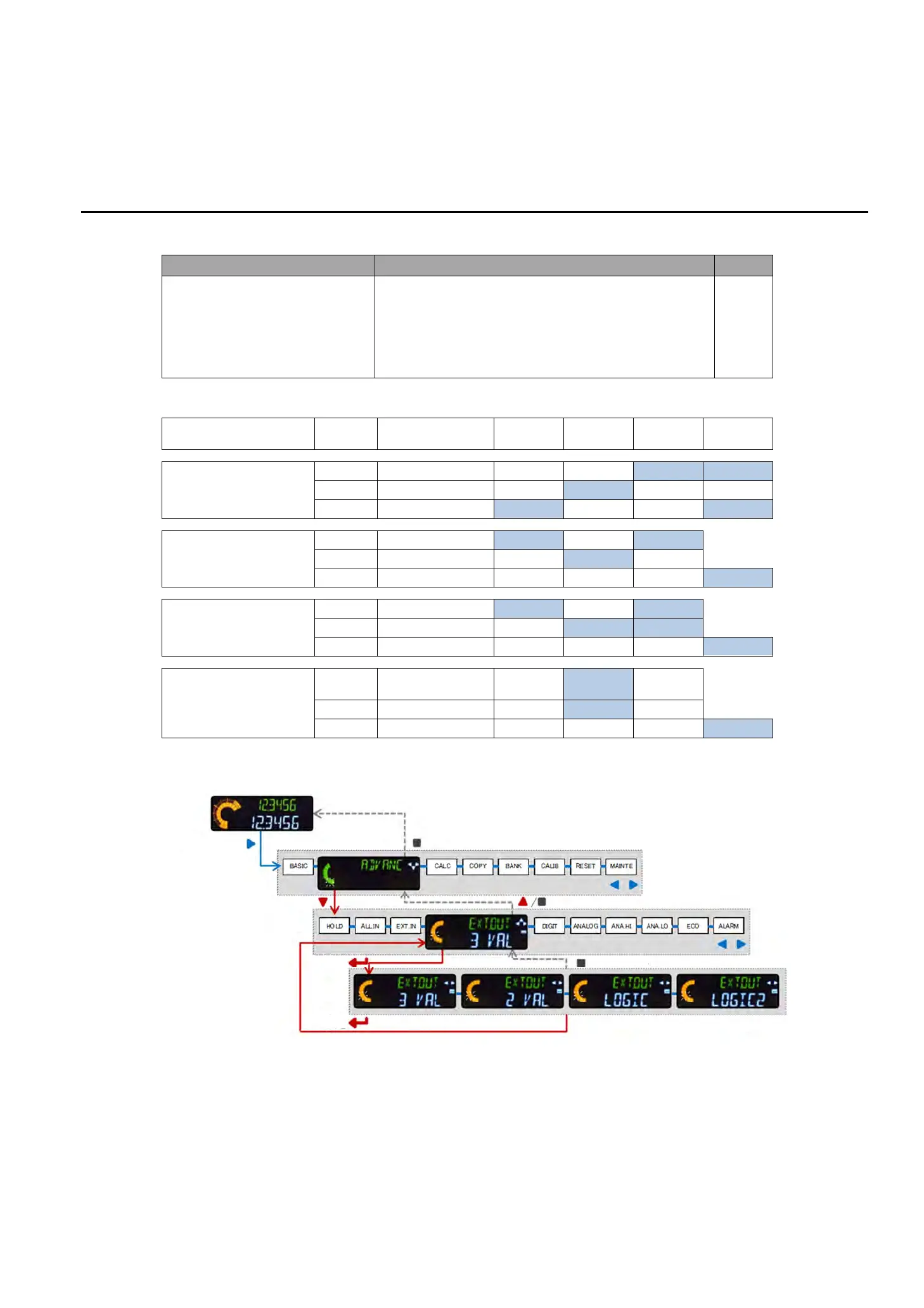

6-2-4 External Output
Parameter name Setting value Remarks
External output (EXT.OUT)
For output 1/output 2/output 3 of external outputs, selects one of
four output signal types.
3VAL (HI, GO, LO)
2VAL (HIorLO, INRANGE, ALARM)
LOGIC (LOGIC, ALARM)
LOGIC2 (ALLGO, GO, ALARM) [Default: 3VAL]
Details of outputs are as follows:
L
OW
judgment
GO
judgment
HIGH
judgment
Alarm
OUT1 HIGH OFF OFF ON ON
3VAL [Default] OUT2 GO OFF ON OFF OFF
OUT3 LOW ON OFF OFF ON
OUT1 Out of range ON OFF ON
2VAL OUT2 GO OFF ON OFF
OUT3 Alarm ON ON ON OFF
OUT1 Judgment 1 ON OFF ON
LOGIC OUT2 Judgment 2 OFF ON ON
OUT3 Alarm ON ON ON OFF
OUT1
ALL GO
(all connected)
OFF ON OFF
LOGIC2 OUT2 GO (master unit) OFF ON OFF
OUT3 Alarm (connected) ON ON ON OFF
Operation procedure
Note

When any one of 2VAL/LOGIC/LOGIC2 is set, the alarm output (OUT3) is ON for normal operation,
and OFF when an alarm is active.
■
■
Long press
for 2 s
Select
Cancel
Commit
