Note

 An indefinite state is held on occurrence of any of the following:

 The power is turned ON

 The reset input is ON

 A sensor head disconnection error or upthrust error (alarm) is canceled



If the input value falls below the self trigger level before settling within the static width, the

controller enters an alarm state. (In the case of the self trigger edge direction being set to UP)

 Note that, with this type of self sample hold, the judgment output is not the same as the judgment

value. After the input value exceeds the specified self trigger level (in the case of the self trigger

edge direction being UP), the judgment output is all OFF until the normal measurement value

settles within the specified static width.

 When self sample hold is selected, external trigger input has no effect.

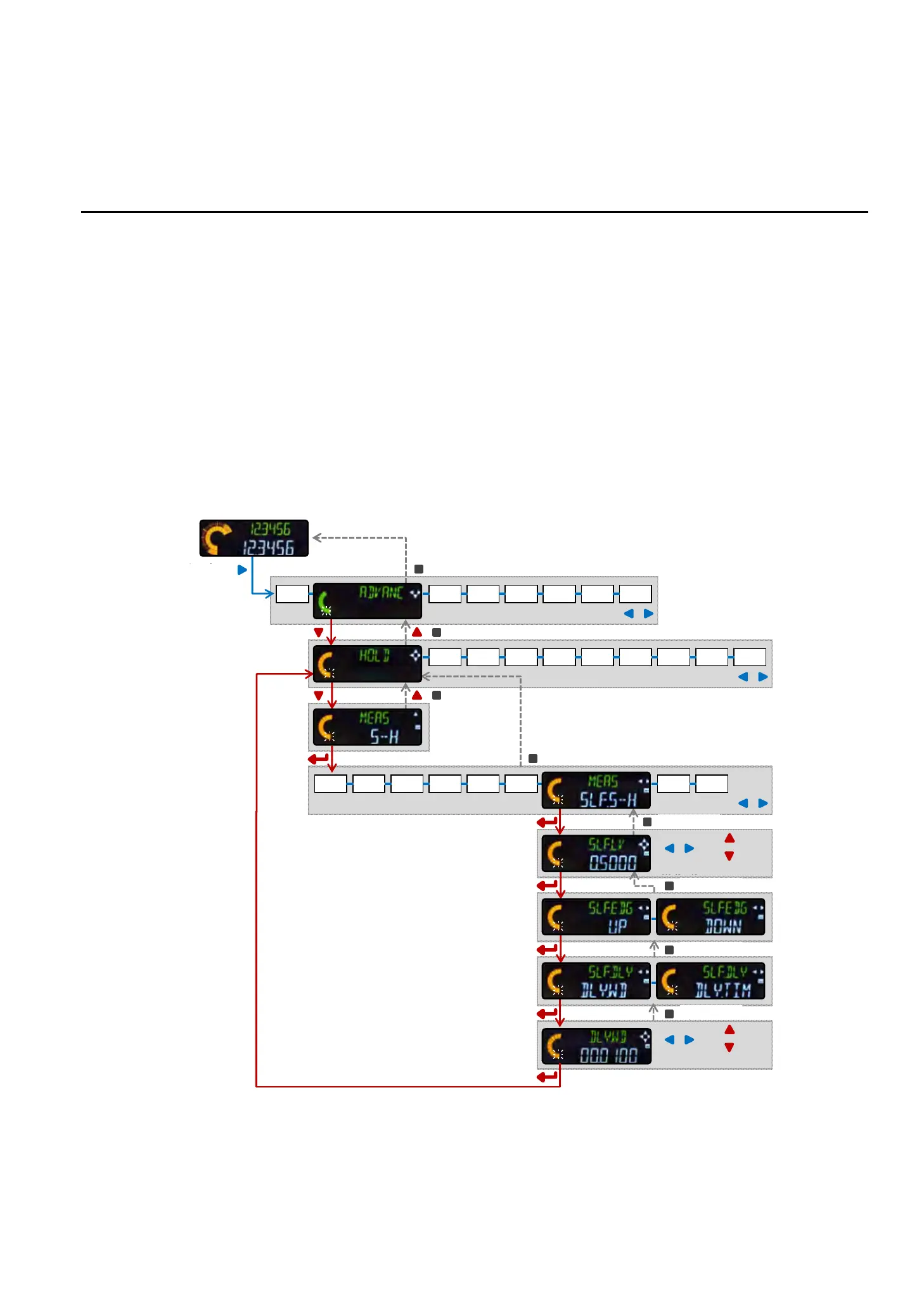

Operation procedure

■

2秒長押し

選択キャンセル

桁移動数値変更

選択キャンセル

桁移動数値変更

確定

BASIC

ALL.IN EXT.IN EXT.OUT DIGIT ANALOG ANA.HI ANA.LO ECO ALARM

CALC COPY BANK CALIB RESET MAINTE

P-H B-H P-P P-P/2 NG-HS-H SLF.P-H SLF.B-H

Long press

for 2 s

Select

Cancel

Select

Commit

Shift between

digits

Change numerical

values

Change numerical

values

Shift between

digits
