6-2-6-2 Scaling Upper Limit/Scaling Lower Limit
Parameter name Setting value Remarks
Scaling upper limit (ANA.HI)
This can be set only when analog scaling is set to FREE.
It sets the judgment value that outputs a current of 20 mA
−199.9999 to 199.9999 (mm) [Default: 10.0000]
Scaling lower limit (ANA.LO)
This can be set only when analog scaling is set to FREE.
It sets the judgment value that outputs a current of 4 mA.
−199.9999 to 199.9999 (mm) [Default: 0.0000]

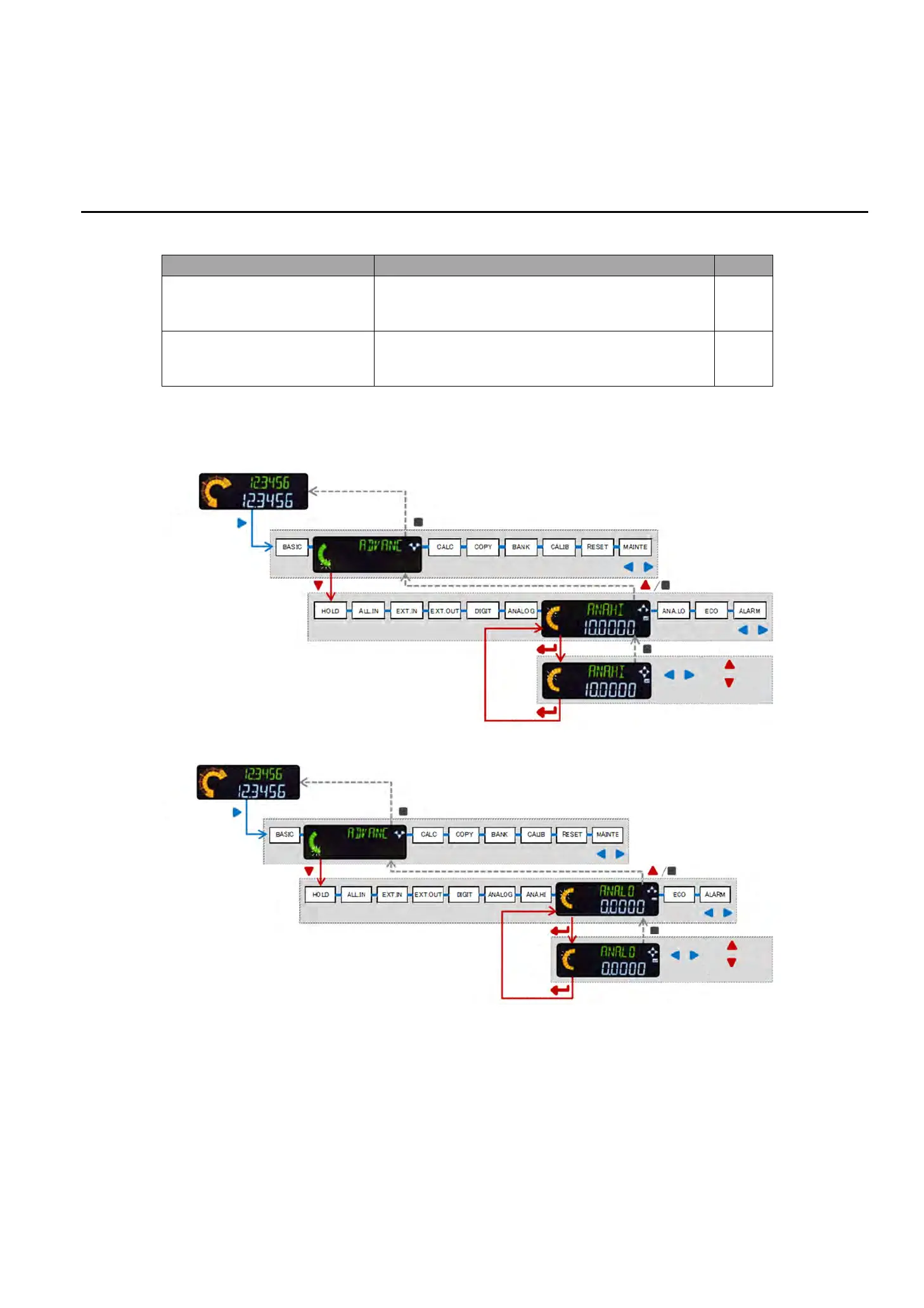

Operation procedure
 Setting the scaling upper limit

Setting the scaling lower limit
■
Long press
for 2 s
Select
Cancel
Commit
Change numerical
values
Shift between
digits
Long press
for 2 s
Select
Cancel
Commit
Change numerical
values
Shift between
digits
