clare H101 - Downloading to Computer Software; Serial Port

Downloading to Computer Software
Serial Port

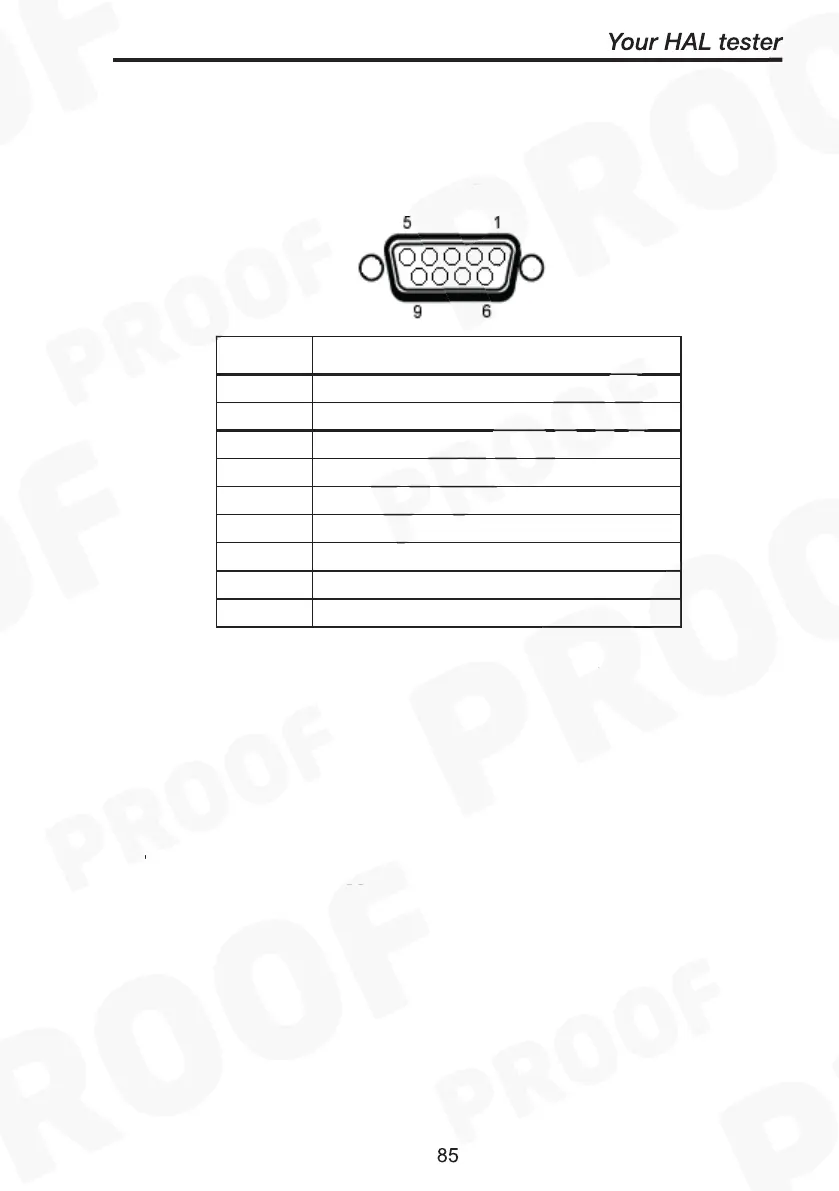

The serial port uses a standard 9-way D-type connector
Pin Description
1. N.C.
2. RX
3. TX
4. DTR
5. 0V
6. N.C.
7. 0V
8. N.C.
9. +5V
Baud Rate: 9600, 19200, 28800 (selectable)
Start Bits: 2
Data Bits 8
Stop Bits: 1 (2 Scan)
Parity: None
Flow-control Xon/Xoff (not on Scan)
Inter-character Delay: 20ms
