Inspection and Maintenance
7-24
750-96 (revised 2010)
Model CB Packaged Boiler Manual

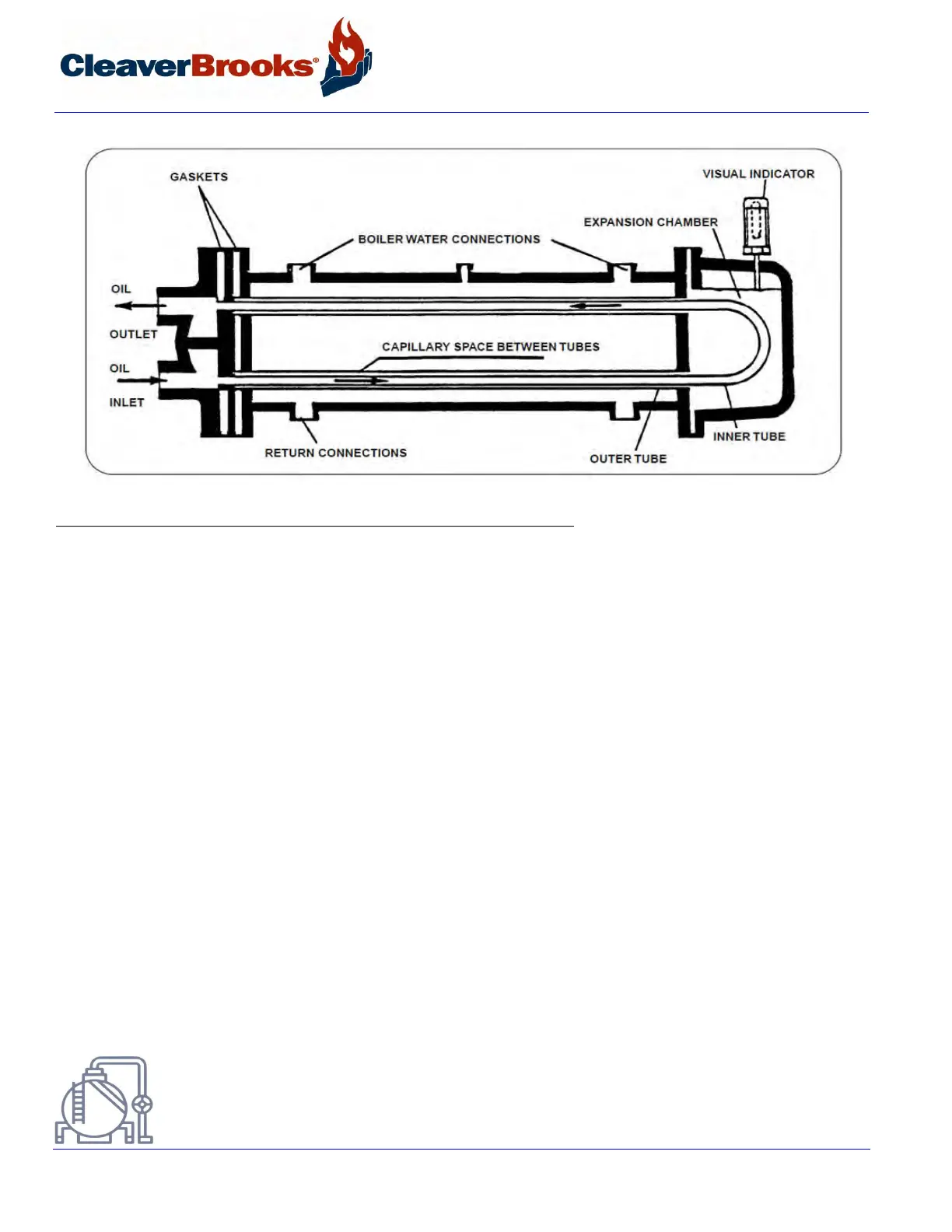

FIGURE 7-11. Circulation Layout of Hot Water Oil Heater (Alstrom)
Evidence of oil in either the steam heater condensate or in the water heater indicator demands prompt repairs.
