Should a pressure adjusting or relief valve become clogged, disassemble by releasing the locknut and backing off
the screw to relieve tension on the diaphragm. Remove the valve cover and diaphragm. This will expose any dirt or
foreign material which may have entered the valves. Clean out carefully and reassemble. It is recommended that
the diaphragms be replaced annually.
7.15 — Air Pump and Lubricating System
7.15.1 — Air Pump
The air pump itself requires little maintenance. However, the life of the pump is dependent upon a sufficient supply
of clean cool lubricating oil. The oil level in the air-oil tank must be observed closely. Lack of oil will damage the
pump making replacement necessary. disassembly or field repairs to the pump are not recommended.

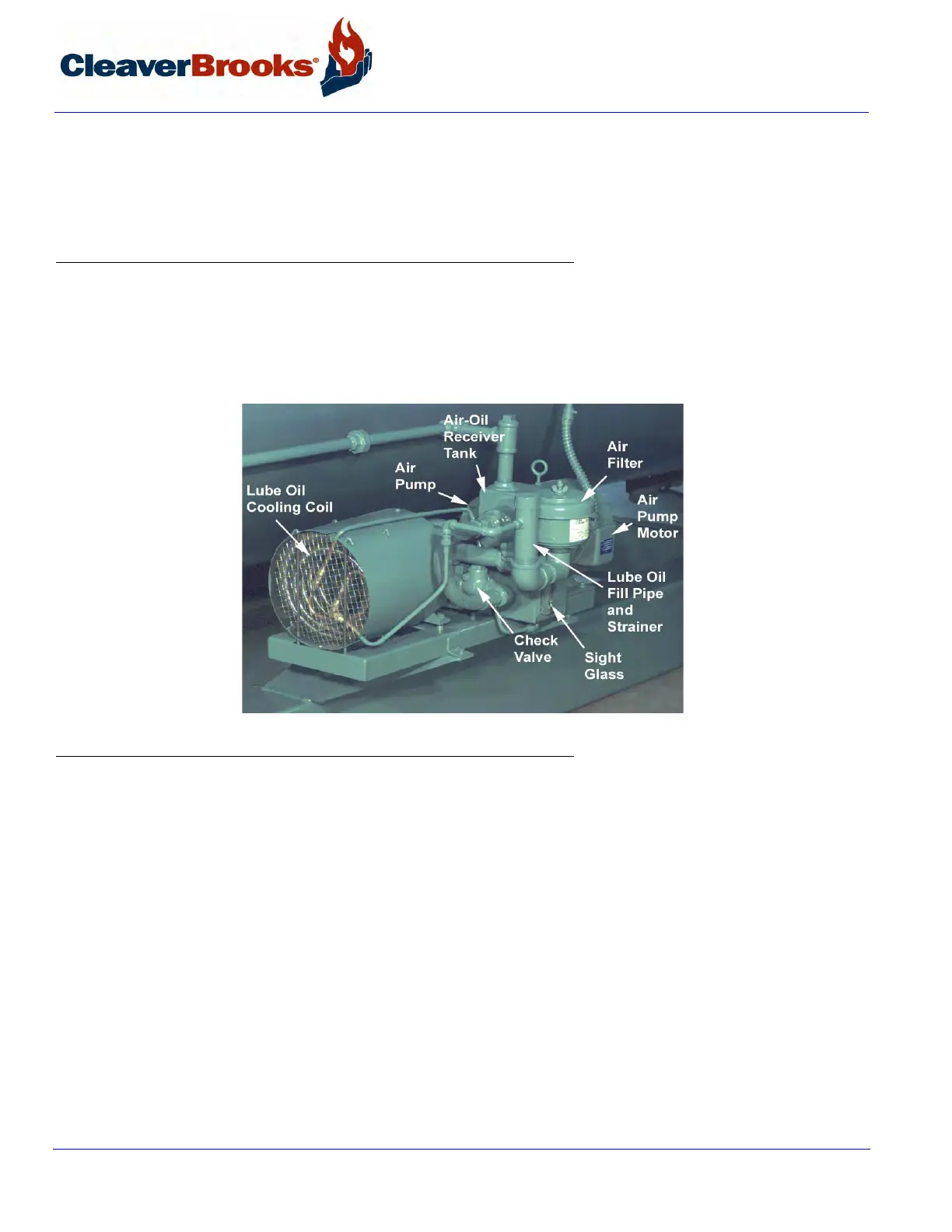

FIGURE 7-6. Air Pump
7.15.2 — Lubricating Oil
Lubricating oil must be visible in the gauge glass at all times. There is no specific level required as long as oil is
visible. Do not operate if oil is not visible.
Oil with proper viscosity must be used. SAE 20 detergent is recommended, although SAE 10 detergent is also per-
missible. Name brands know to perform satisfactorily include:
• Havoline (Texaco)
• Mobil Oil (Mobil)
• Shell X100 (Shell)
• Permalube (American)
To add oil:
1. Remove the cover from the fill pipe and add oil through the conical strainer in this pipe with the unit running. Oil
must never be added unless the pump is in operation and the strainer screen in place.
