1.15 — Oil Fuel Flow: Light Oil
assist in this regulating, back pressure is created by an orifice nozzle located in the oil return line immediately
downstream of the fuel oil controller.

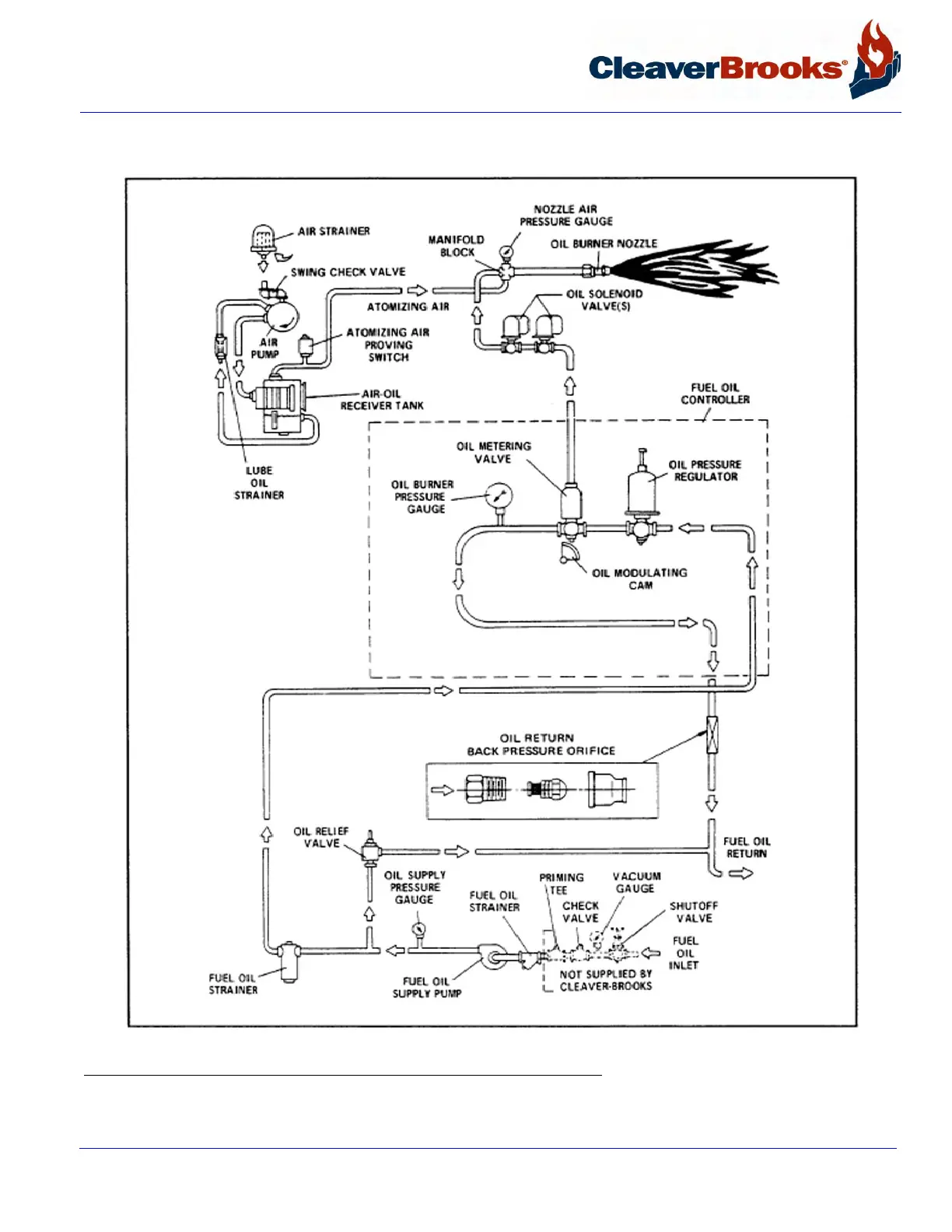

FIGURE 1-7. Light Oil Flow Diagram
