WARNING! When the disconnect switch is closed, high
voltage is present in some areas of the electrical panel.
Exercise caution when working with energized equipment.
CAUTION! Verify that ALL water control valves are open and
allow water fl ow prior to engaging the compressor. Freezing
of the coax or water lines can permanently damage the heat
pump.

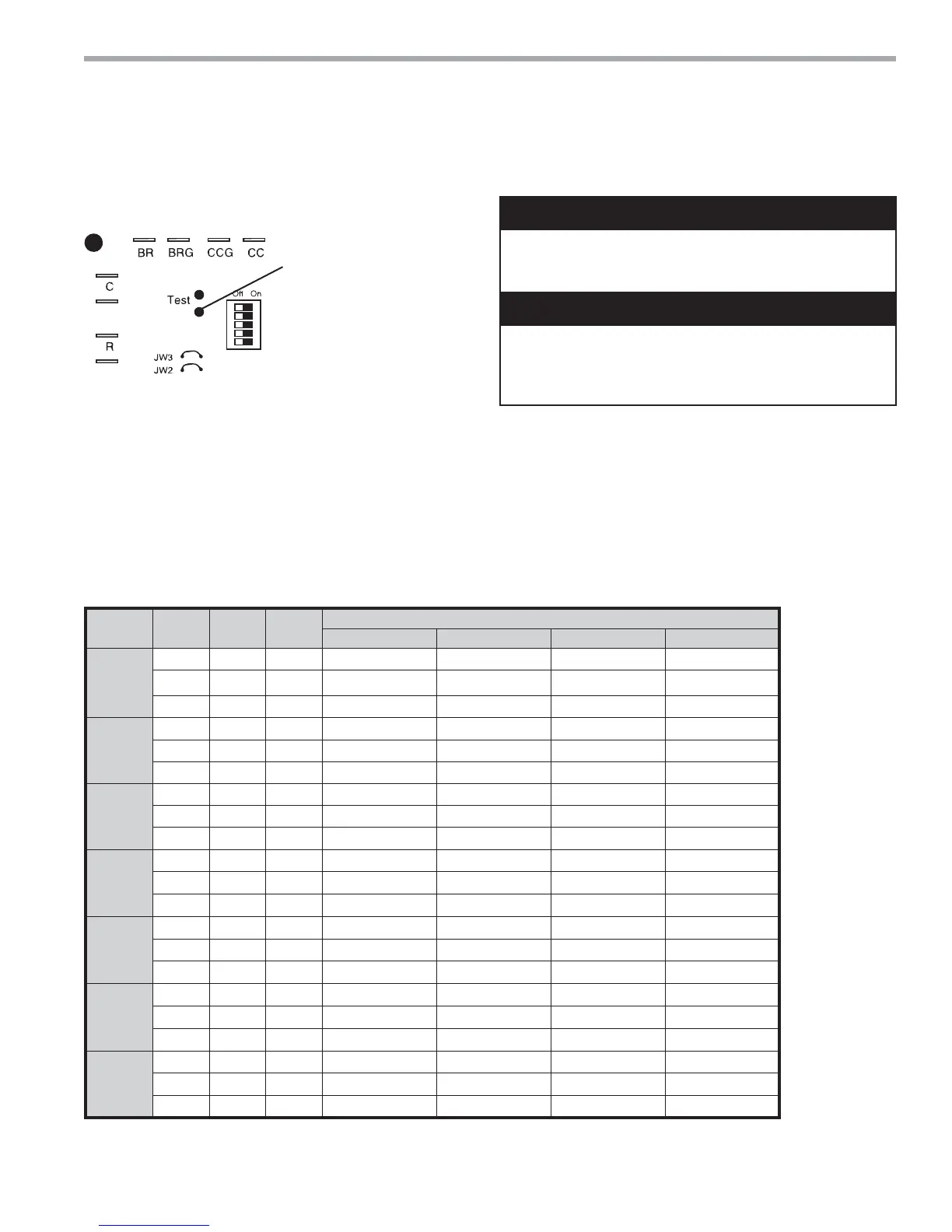

Figure 21: Test Mode Pins
 WARNING! 
 CAUTION! 
Table 10a: TC Coax Water Pressure Drop
UNIT OPERATING CONDITIONS
Model
U.S.
GPM
l/s l/m
Pressure Drop, psi [kPa]*
30°F [-1°C] 50°F [10°C] 70°F [21°C] 90°F [32°C]
TCH/V072
10 0.631 37.85 1.2 [8.3] 0.9 [6.2] 0.5 [3.4] 0.3 [2.1]
15 0.946 56.781 3.3 [22.8] 2.8 [19.1] 2.1 [14.5] 1.8 [12.4]
20 1.262 75.708 6.2 [42.7] 5.3 [36.5] 4.2 [29.0] 3.8 [26.2]
TCH/V096
12 0.757 45.425 2.1 [14.5] 1.7 [11.7] 1.3 [9.0] 1.1 [7.6]
18 1.136 68.137 5.3 [36.5] 4.5 [31.0] 3.6 [24.8] 3.3 [22.8]
24 1.514 90.85 9.3 [64.1] 7.9 [54.5] 6.6 [45.5] 6.1 [42.1]
TCH/V120
15 0.946 56.781 4 [27.6] 3.2 [22.1] 2.2 [15.2] 2 [13.8]
22.5 1.42 85.172 8.6 [59.3] 7.2 [49.6] 5.5 [37.9] 5.1 [35.2]
30 1.893 113.562 14.5 [100.0] 12.2 [83.4] 9.8 [67.6] 9.2 [63.4]
TCV160
21.0 1.32 79.20 7.6 [52.5] 4.4 [30.3] 4.0 [27.6] 3.8 [26.3]
31.5 1.99 119.40 14.3 [98.8] 9.1 [62.9] 8.4 [58.02] 7.9 [54.6]
42.0 2.65 159.00 22.3 [154.0] 15.2 [105.0] 14.1 [97.4] 13 [89.8]
TCV192
24.0 1.51 90.60 10.1 [69.8] 7.6 [52.5] 6.2 [42.8] 5.9 [40.8]
36.0 2.27 136.20 18.6 [128.5] 12.6 [87.0] 11.6 [80.1] 11.1 [76.7]
48.0 3.03 181.80 28.7 [198.2] 20.2 [139.5] 18.8 [129.9] 17.7 [122.3]
TCV240
30.0 1.89 113.40 8.3 [57.3] 6.6 [45.6] 5.6 [38.7] 5.3 [36.6]
45.0 2.84 170.40 15.5 [107.1] 11.1 [76.7] 10.4 [71.8] 9.9 [68.4]
60.0 3.79 227.40 24.4 [168.5] 17.8 [122.9] 16.8 [116.0] 15.9 [109.8]
TCV300
37.5 2.37 142.20 11.6 [80.1] 7.9 [54.6] 6.4 [44.2] 5.9 [40.8]
56.3 3.55 213.00 21.3 [147.1] 13.6 [93.9] 12.6 [87.0] 11.8 [81.5]
750.0 4.73 283.80 32.9 [227.2] 22.3 [154.0] 20.8 [143.6] 19.6 [135.4]
*Note: To convert kPa to millibars, multiply by 10.
LT1
LT2
Short test pins together to enter
Test Mode and speed-up timing
and delays for 20 minutes.
