Overview - Vertical unit control box can be fi eld
converted from front to any other corner for 160-300 or
opposite corner (water coil side) for 072-120.
Preparation - Place in a well-lighted area. Conversion
should only be attempted by a qualifi ed service technician.
 WARNING! 
WARNING! To avoid possible injury or death due to
electrical shock, open the power supply disconnect switch
and secure it in an open position during installation or
conversion.

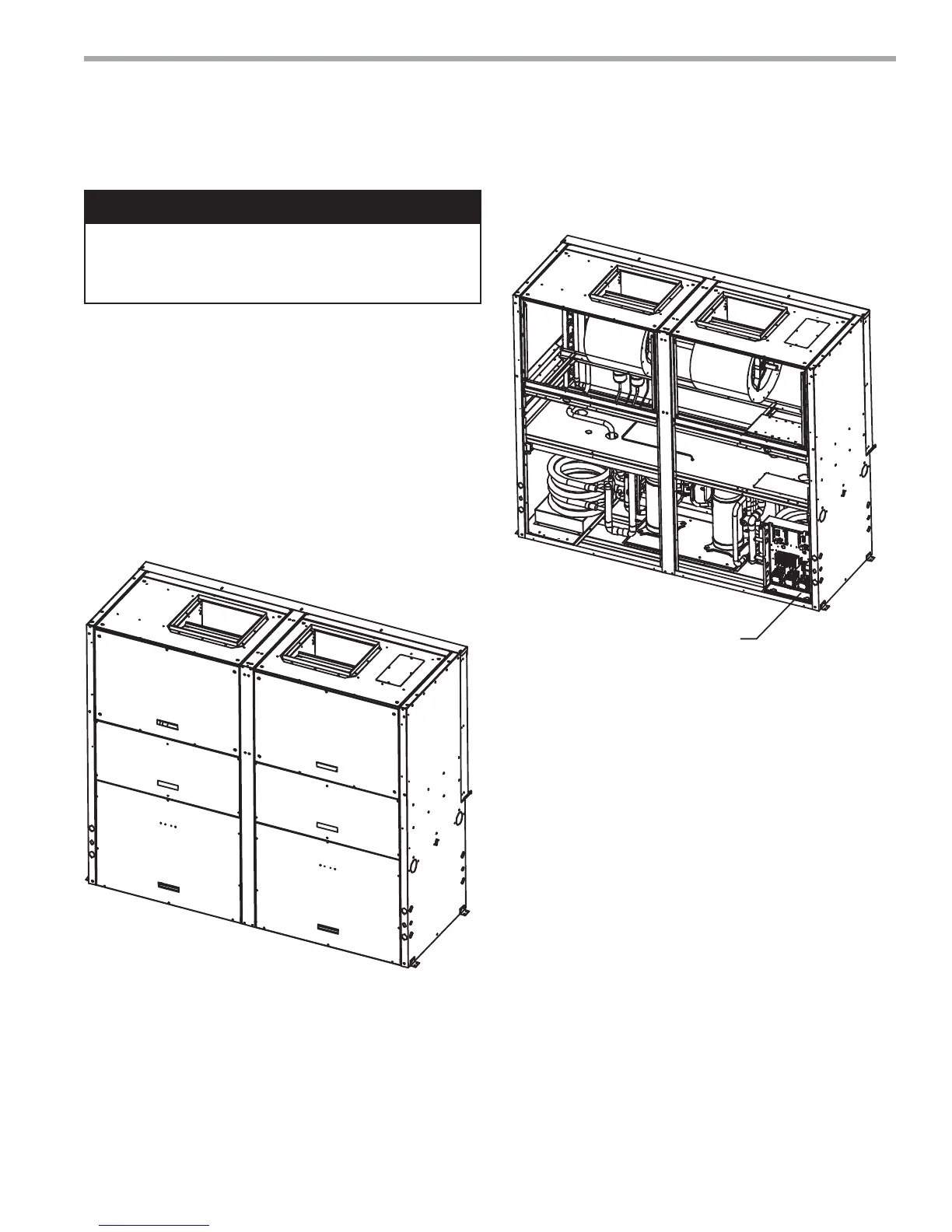

Figure 9: TCV160-240 Shown, Typical All TCV Models
Note: Must provide 3 feet (or code requirement)
service access for new control box location.
TCV Field Conversion of Control Box
Step 1 - Remove control box access panel and
panel box will be relocated to.
Original Control Box Location
for Back Return Top Discharge
Step 2: Unattach all wires from components, remove the control box,
tag wires. Pull wires out of box.
Step 3: Attach box to new location.
Step 4: Reroute wires. (Note: Keep wires away from hot lines and
sharp edges).
Step 5: Reattach wires. (Note: Models with 2 compressors, rewire
circuit 1 to same compressor. (I.E., compressor confi guration does not
change. Only location of control box changes.
Step 6: Check wiring is per wire diagram.
Step 7: Replace panels.
Step 1 - For TCV072-120 remove 3 panels.
For TCV160-240 remove 6 panels, middle
dividers, and panel mounting brackets.
