TCV300 Field Conversion of Air Discharge

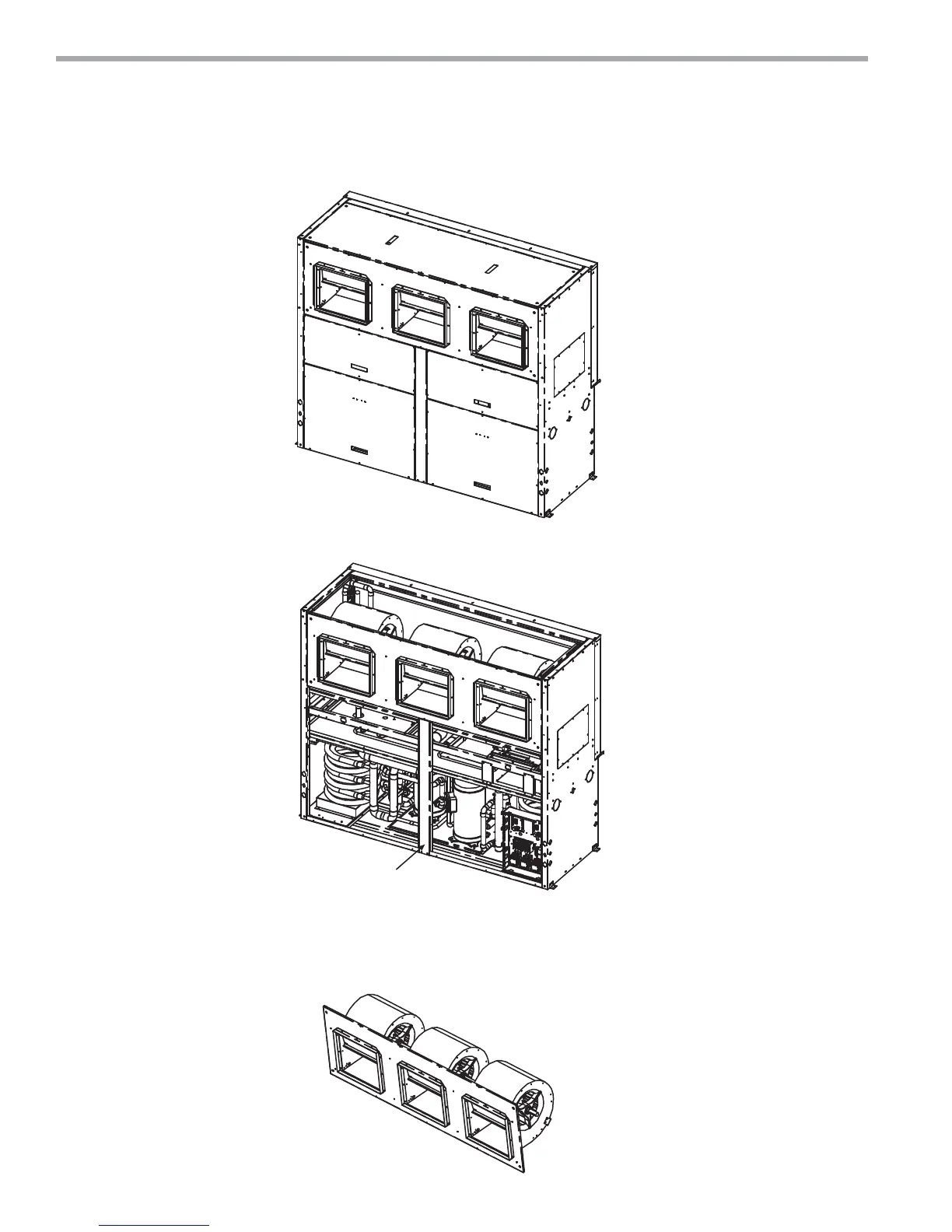

Step 5 - Rotate the blower assembly 90 degrees counter
clockwise. The belly of the blowers should be facing upward.
Step 4 - Attach middle divider.
Step 6 - Reattach blower assembly to the front of the unit. Put belt
on and retighten.
Step 7 - Replace brackets and 5 panels.
Reverse steps to convert straight discharge to top discharge.
