TCV300 Field Conversion of Air Discharge
Note: Unlike the 160-240, the TCV300 only
has 1 location for the motor mount assembly.
Do not remove.

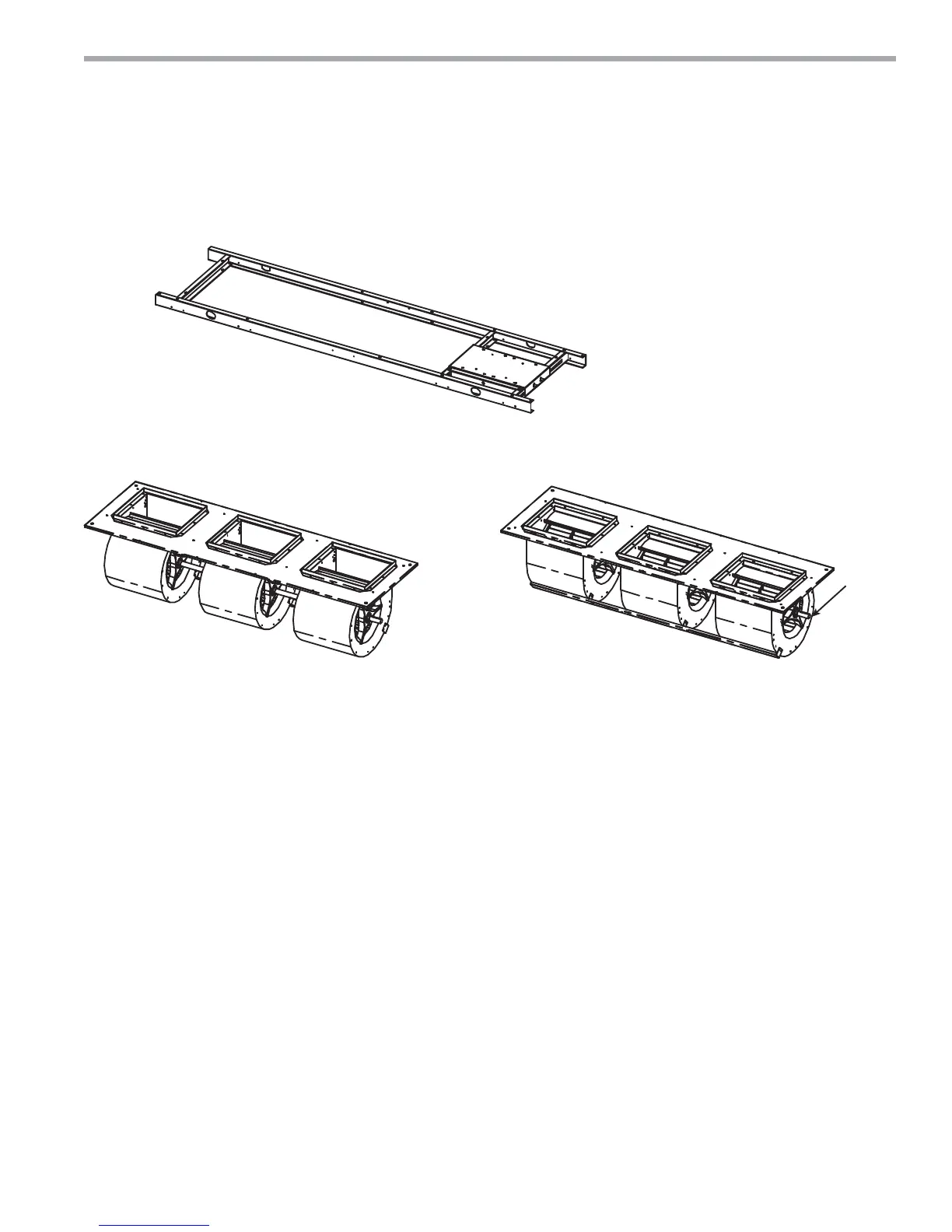

Step 2 - Unattach and lift entire 3 blower sub
assembly out of the unit.
Step 3 - Rotate blower assembly 180 degrees.
Remove blower sheave and put on opposite side.
Sheave End
To Next Page
