TCV300 Field Conversion of Air Discharge
Step 1 - Remove 5 panels, dividers, and panel
mount brackets.

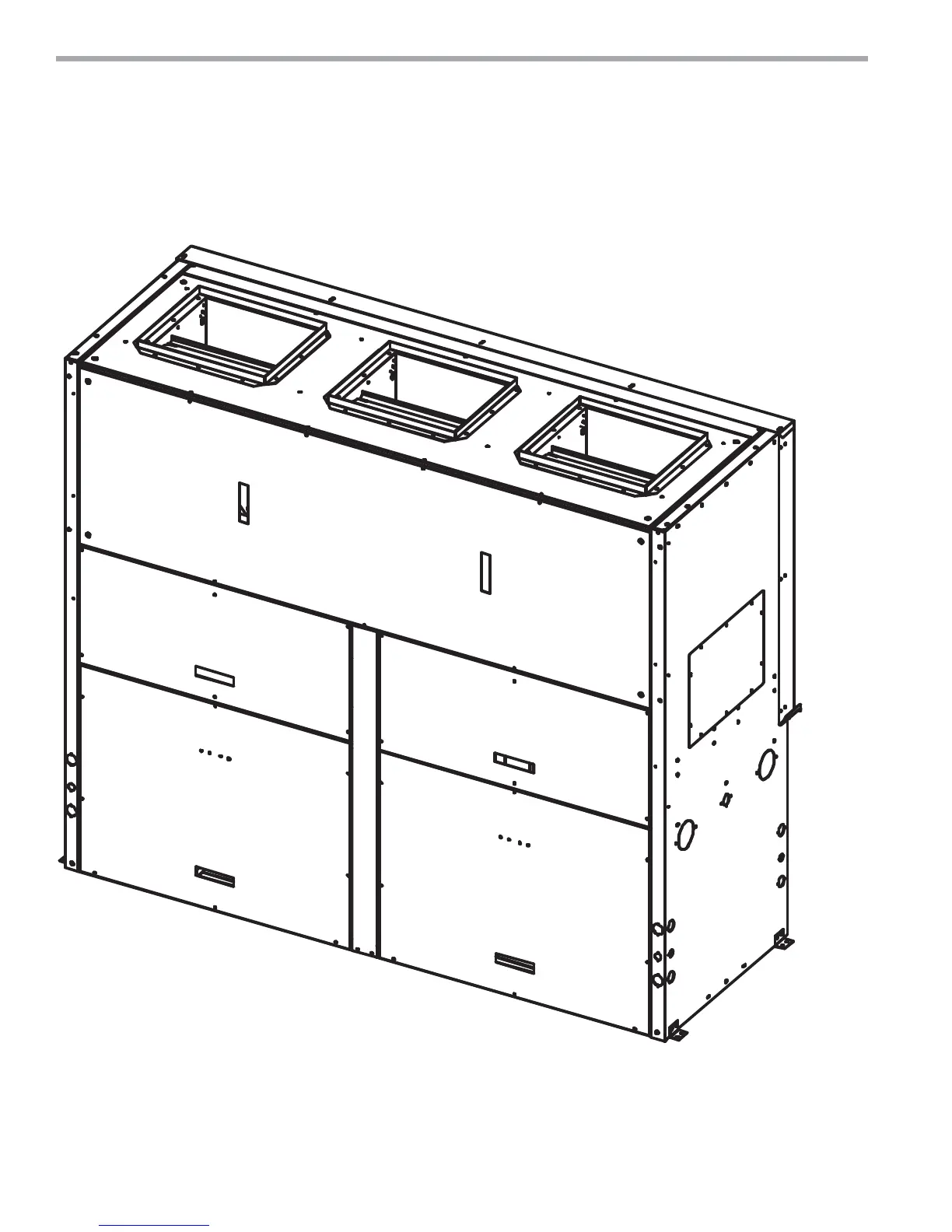

Figure 8: TCV300 Top Discharge Steps to Convert to Straight Discharge
