TCV072-240 Field Conversion of Air Discharge

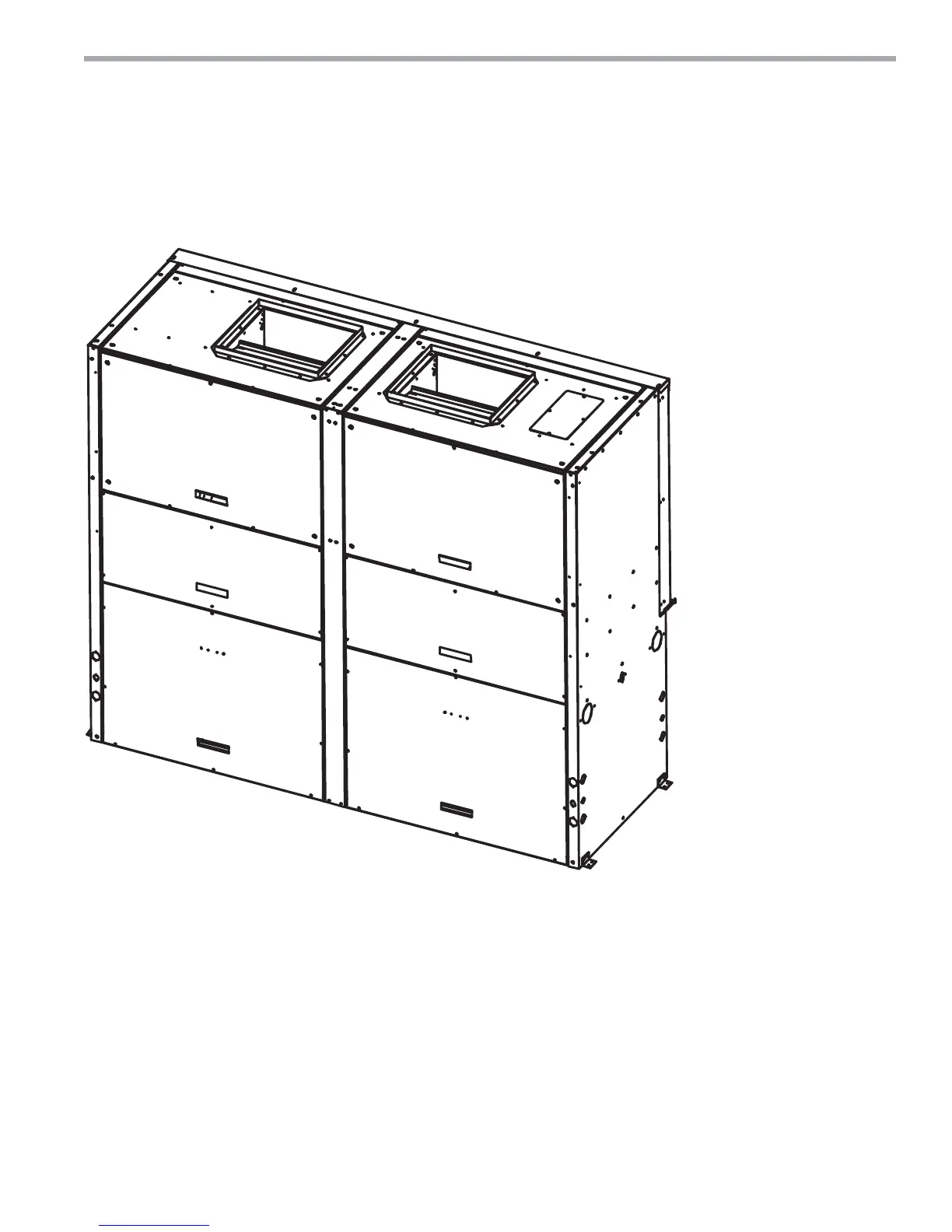

Figure 8: TCV072 - 120 and TCV160-240 Pictorally Shown Top Discharge Steps to Convert
to Straight Discharge
Step 1 - For TCV072-120 remove 3 panels.
For TCV160-240 remove 6 panels, middle
dividers, and panel mounting brackets.
To Next Page
