ClimateMaster TCH072 - Step 2 - Remove motor and then unscrew and remove motor mount assembly. Put motor mount assembly back in lower mount position.

CLIMATEMASTER WATER-SOURCE HEAT PUMPS
Tranquility
®
Compact Belt Drive (TCH/V) Series
Rev.: July 25, 2017
24
ClimateMaster Water-Source Heat Pumps
TCV072-240 Field Conversion of Air Discharge

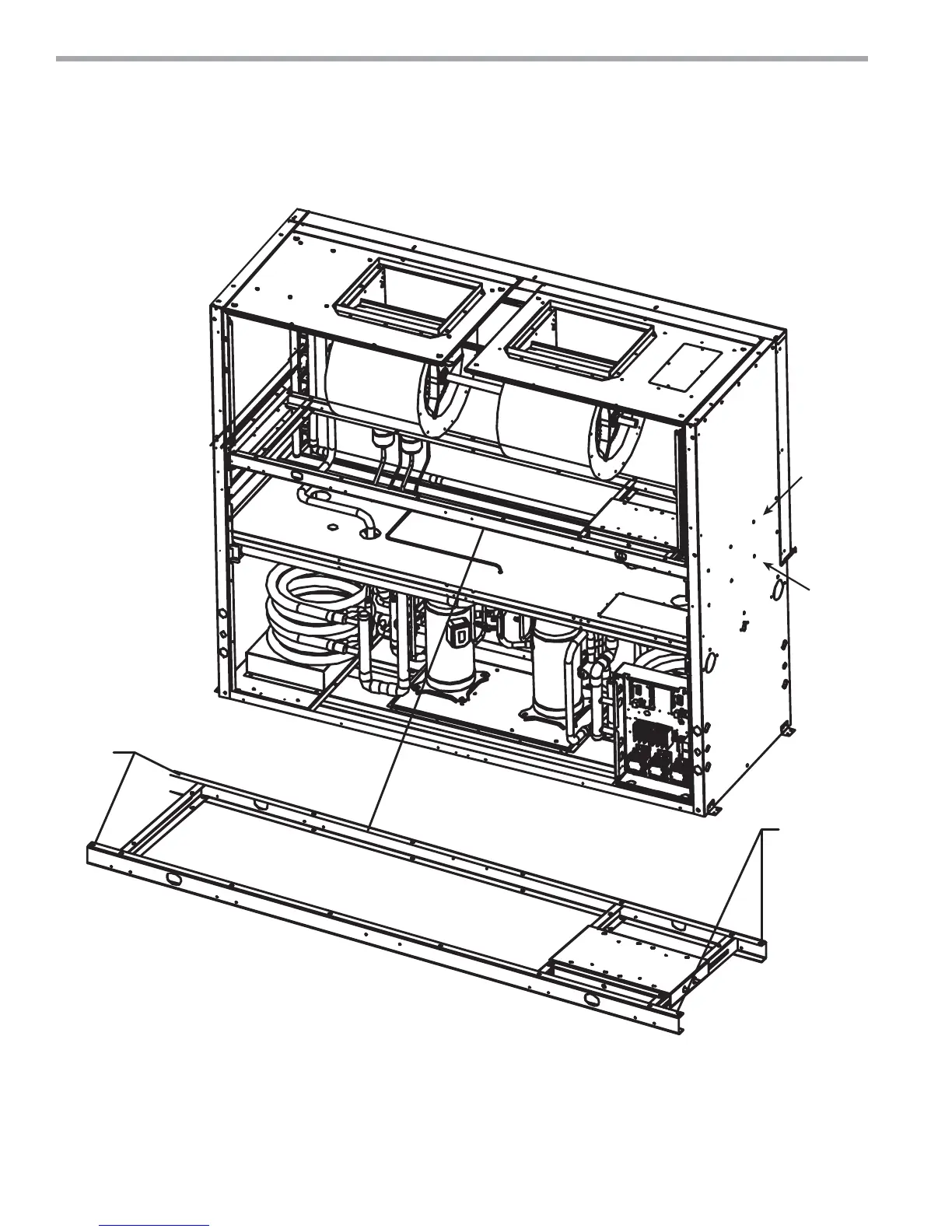

Step 2 - Remove motor and then unscrew and
remove motor mount assembly. Put motor
mount assembl
y
back in lower mount
p
osition.
(2X) Bolts
(2X) Bolts
Upper Mount
Holes for Top
Discharge
Lower Mount
Holes for
Straight
Discharge
