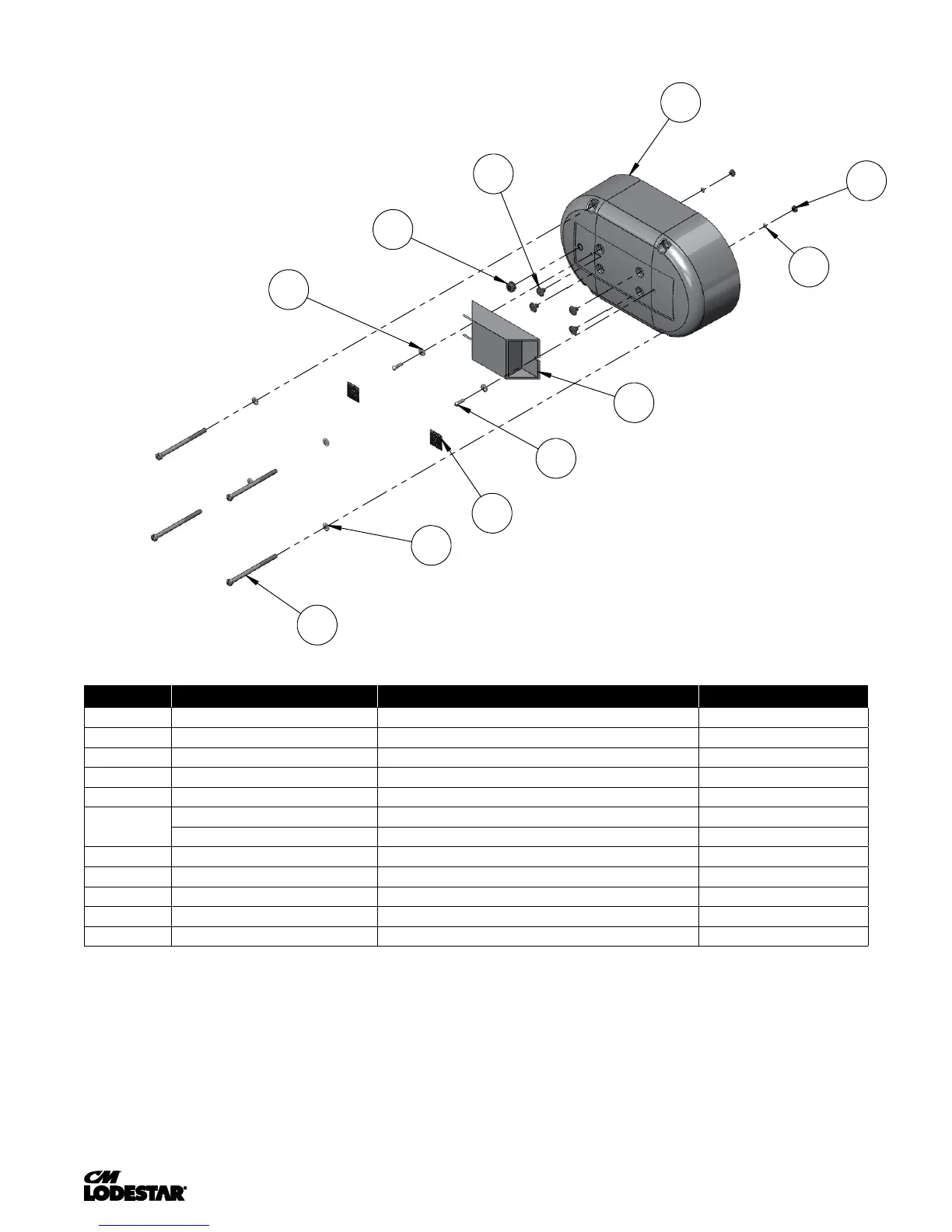

CM Lodestar A - V2 and RRS Brake End Cover Detail

13
P/N: 10001609 (REV AB) 627NH December 2014
V2 AND RRS BRAkE END COVER DETAIL
ITEM NO. PART NUMBER DESCRIPTION QTY
1 35262 CVR BACK FRAME MOD. J THRU RRT 1
2 968752 SCREW BRAKE COVER 4
3 982251 WASHER - .252 ID X .19 WALL 4
4 28731 GROMMET 1/4ID X 3/16 PANEL THK 1
5 00000574 HOLE PLUG 4
6
28960 DYNAMIC BRAKING RESISTOR - 150 OHMS 1
28961 DYNAMIC BRAKING RESISTOR - 250 OHMS 1
7 982537 SLOTTED ROUND HEAD SCREW-#8-32 2
8 982210 WASHER - #10 2
9 27024NH WARNING LABEL 2
10 982472 NUT #8-32 UNC-2B 11/32 X 1/8 2
11 957844 LOCKWASHER 2
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 35262 CVR BACK FRAME MOD. J THRU RRT 1
2 968752 SCREW BRAKE COVER 4
3 982251 WASHER - .252 ID X .19 WALL 4
4 28731 GROMMET 1/4ID X 3/16 PANEL THK 1
4GULP ELOH475000005
6
28960 DYNAMIC BRAKING RESISTOR - 150 OHMS 1
28961 DYNAMIC BRAKING RESISTOR - 250 OHMS 1
7 982537 SLOTTED ROUND HEAD SCREW-#8-32 2
201# - REHSAW0122898
2LEBAL GNINRAWHN420729
10 982472 NUT #8-32 UNC-2B 11/32 X 1/8 2
2REHSAWKCOL44875911
6
4
5
11
10
2
3
9
7
8
1
V2 AND RRS BRAKE END COVER DETAIL
