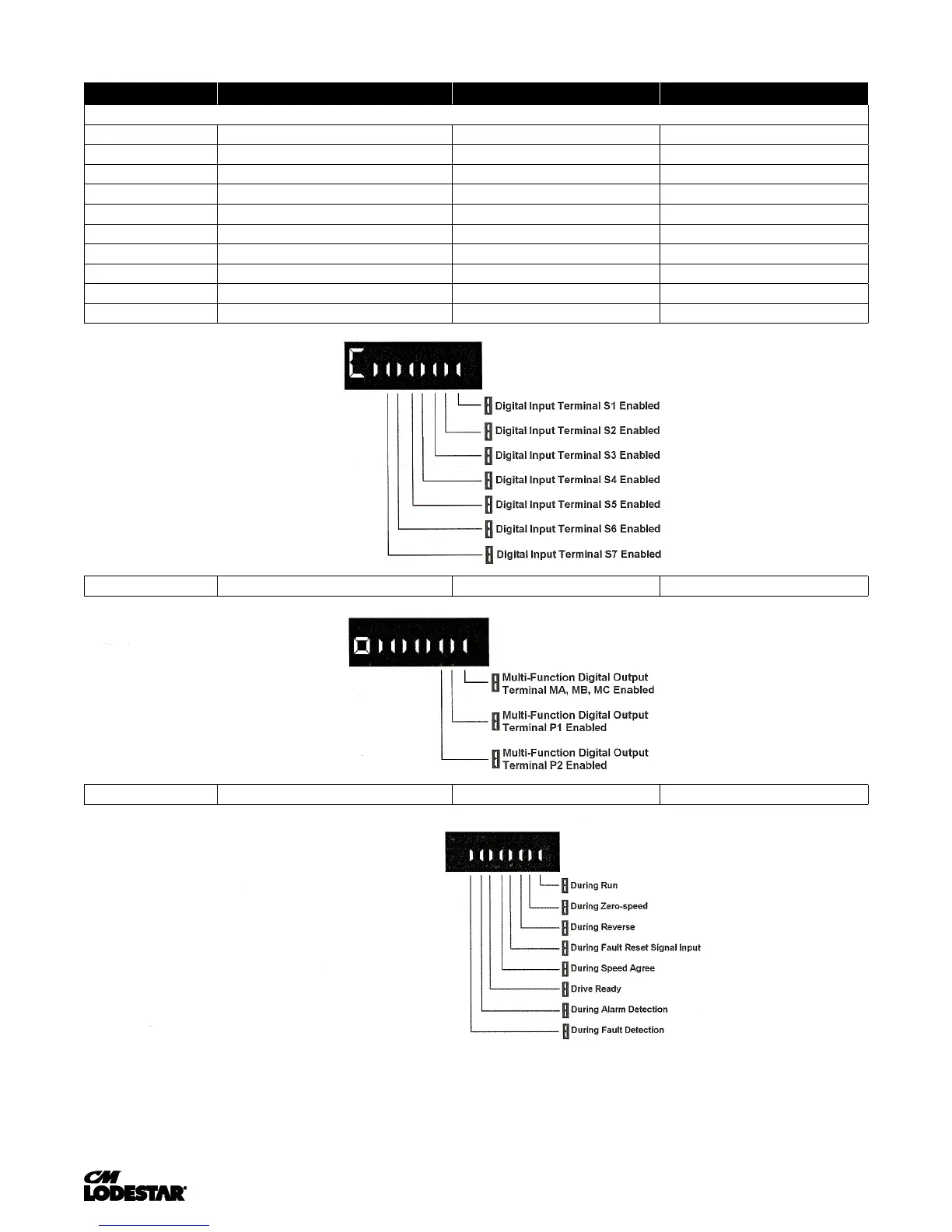

MONITOR PARAMETERS
PARAMETER CODE NAME FUNCTION UNITS
MONITOR
U01.01 Frequency Reference Frequency Reference Hz
U01.02 Output Frequency Inverter Output Frequency Hz
U01.03 Output Current Inverter Output current A
U01.04 Control method Displays the value of A01.02 —
U01.05 Motor Speed Motor Speed (OLV only) —
U01.06 Output Voltage Inverter Output Voltage (Reference) V
U01.07 DC Bus Voltage DC Bus Voltage (Measured) V
U01.08 Output Power Inverter Output Power (Calculated) HP
U01.09 Motor Torque Motor Torque (OLV only) %
U01.10 Input Terminal Status Input Terminal Status —
U01.10
U01.11 Output Terminal Status Output Terminal Status —
U01.12 Inverter Control Status Operation Status —
U01.11
U01.12
