CM Lodestar A - DC Brake - Single Models

73
00001996 (REV AC) 627NH October 2014
DC BRAKE - SINGLE MODELS
A, A-2, AA, AA-2, B, B-2, C, C-2, E, E-2, F, F-2, H & H-2

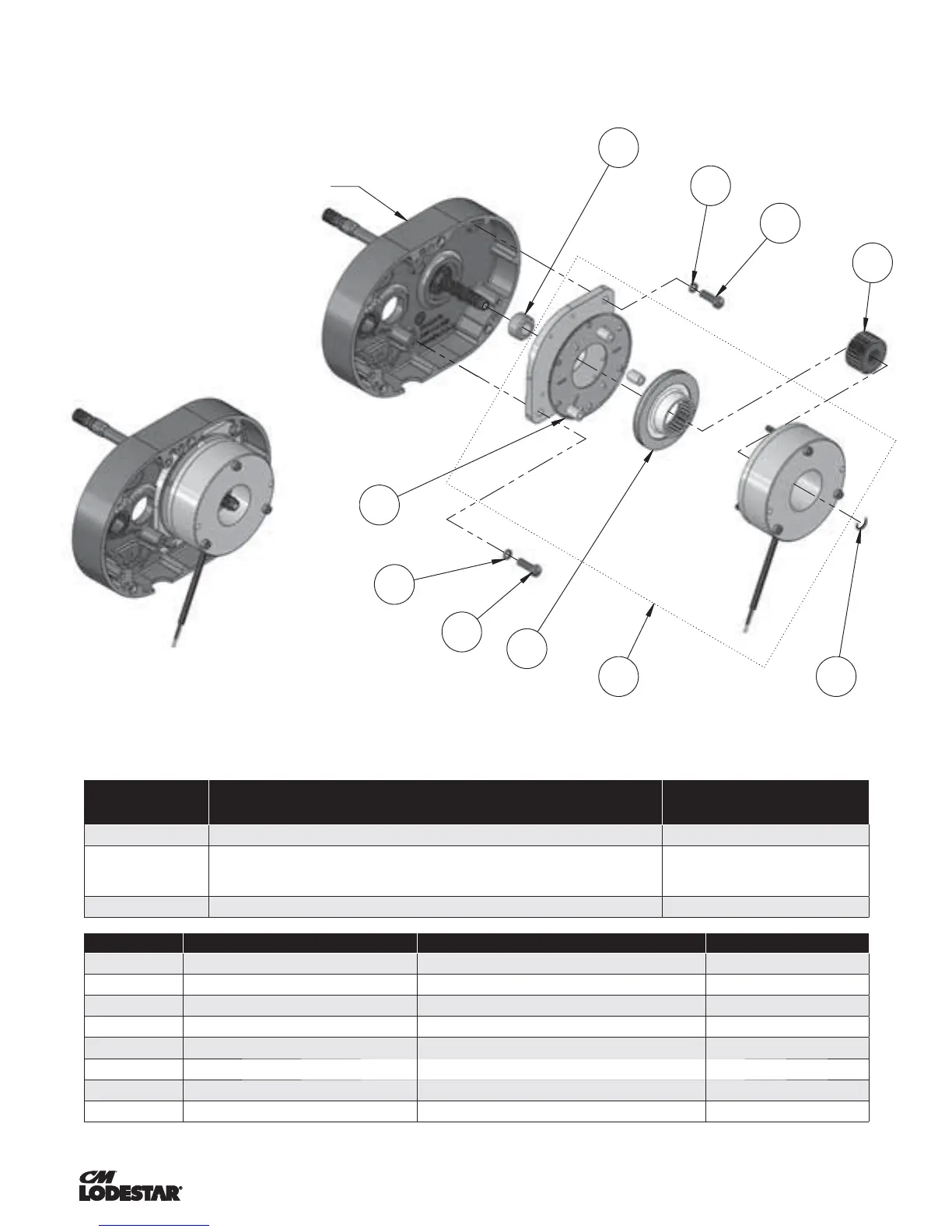

BRAKE ASSEMBLY
ITEM 1
Hoist Motor Brake Coil Voltage
10001243 110/115-1-50/60 103VDC
10001244
220/230-1-50/60
220/230-3-50/60
380/415/480-3-50/60
205VDC
10001245 550/575-3-50/60 255VDC
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 SEE TABLE V1 LODESTAR SIZE 8 1
1.1 10001252 V1 LODESTAR SIZE 8 ROTOR 1
1.2 10001251 V1 LODESTAR SIZE 8 FRICTION PLATE 1
2 00001430 V1 LODESTAR SIZE 8 HUB 1
3 00001432 HUB SPACER V1 DC BRAKE 1
4 982708 SCREW 1/4-20 X .75" SL FIL HD 2
5 940802 LOCK WASHER 1/4 x .109 X .062" 2
6 10409710 ROTOR CLIP RETAINING RING 1
1.1
3
1
1.2
4
5
4
5
BACK FRAME
w/ DRIVE SHAFT
2
6
ASSEMBLED VIEW
