pRogRamming tHe adJustabLe FRequency dRiVe
USING THE kEYPAD
All functions of the drive are accessed using the keypad. The information needed to congure the drive’s application is entered into the drive
by using the functional LEDs. This information is stored into the drive’s memory.

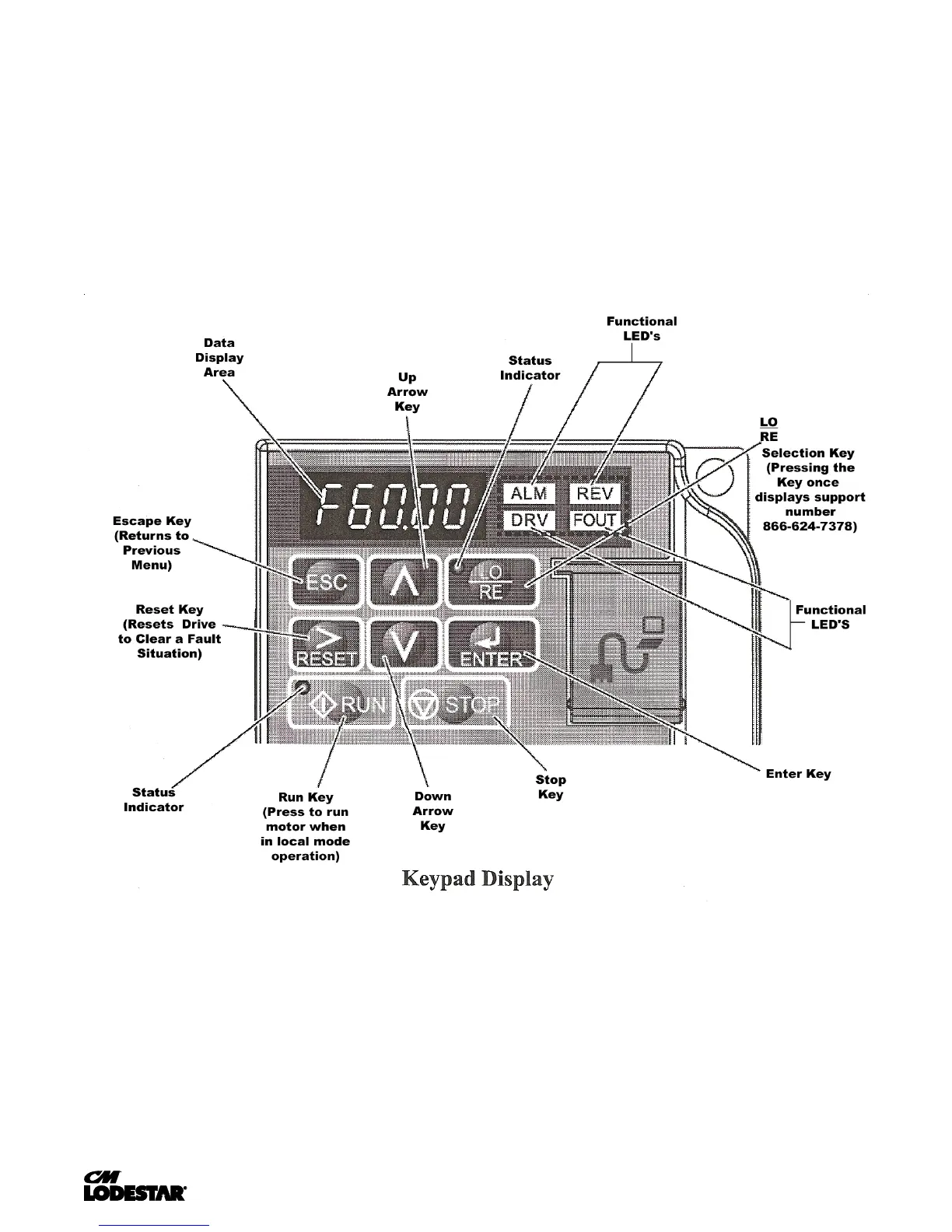

kEYPAD FUNCTIONS
The keypad has a 5-digit LED display. Both numeric and alpha-numeric data can appear on the display.
Indicators and keys on the keypad are described below.
Note: The STOP key is always active and will cause any run command to come to an immediate stop.
