CM Lodestar A - Contactor Plate Assemblies for 2-Speed Models A-H

80
00001996 (REV AC) 627NH October 2014

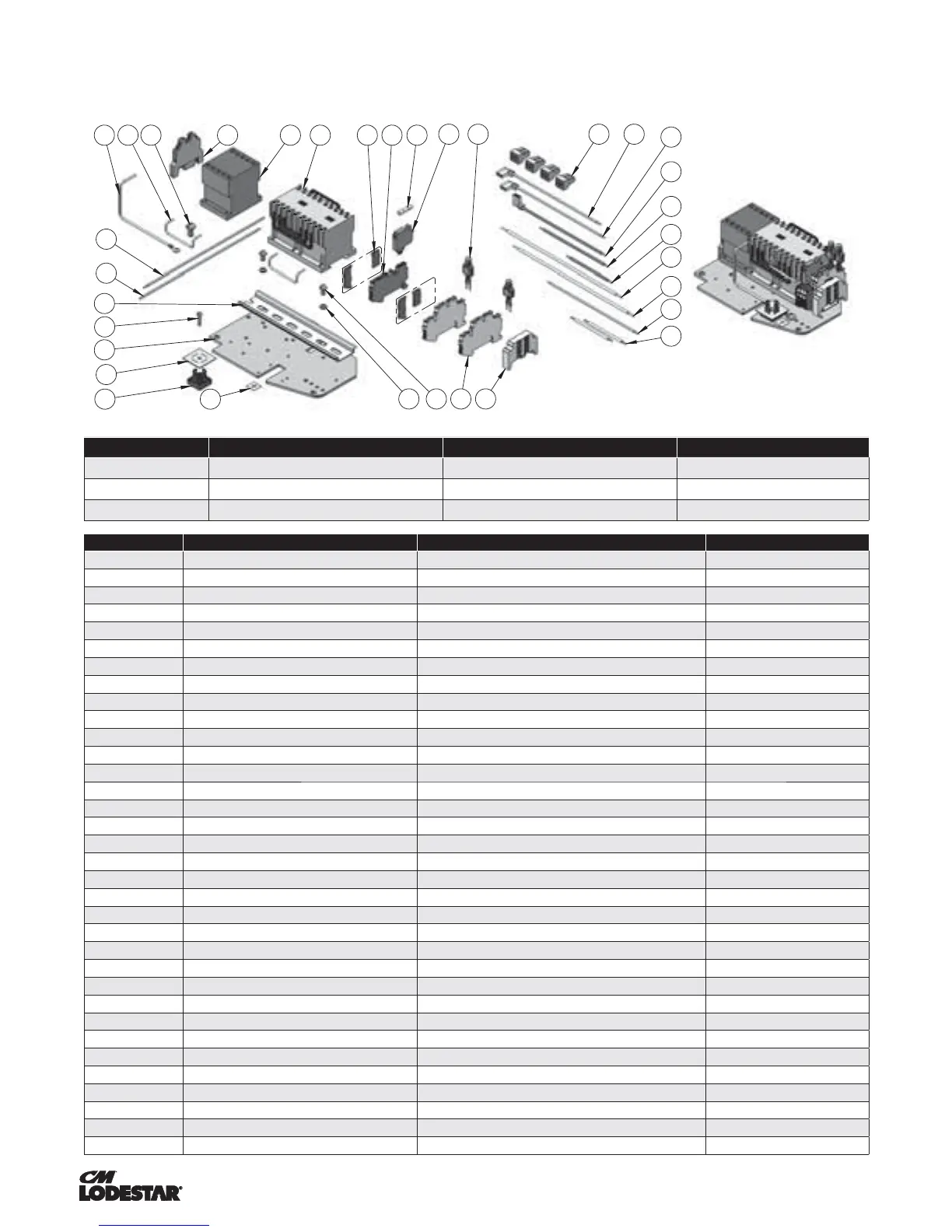

CONTACTOR PLATE ASSEMBLY FOR USE WITH DC BRAKE 2-SPEED UNITS
220/230-3-50/60 MODELS A-2, AA-2, B-2, C-2, E-2, F-2 & H-2
CONTACTOR BKT S/A REVERSING CONTACTOR SPEED SELECTOR SECONDARY VOLTAGE
00001683 28860 28878 24 V
00001684 24797 28871 48 V
00001685 24799 28870 110 V
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 SEE TABLE CONTACTOR PLT S/A 2-SPEED 1
1.1 31633 CONTACTOR PLATE
1.2 29010 DIN-RAIL 6.50" LONG 1
1.3 987873 LOCK WASHER #10 ASA MEDIUM 2
1.4 982686 SCREW #10-32 UNF-2A X 3/8" SL 2
1.5 909J13 TERMINAL STRIP END CLAMP 1
1.6 29018 FUSIBLE TERMINAL STRIP 1
1.7 00000398 TERMINAL STRIP COVER SEGMENT 2
1.8 29019 TERMINAL STRIP CARTRIDGE 1
1.9 00000393 FUSE-5MM X 20MM-500MA 1
1.10 27189 JUMPER-G/Y-#16 AWG 1
1.11 987827 SCREW 1/4-20 UNC-2A X 1/2" 1
1.12 20940 GROUND LABEL 1
1.13 51847 JUMPER 6
1.14 00001503 JUMPER-B2 1
1.15 SEE TABLE CONTACTOR 1
1.16 51845 JUMPER 1
1.17 27609 JUMPER 1
1.18 27610 JUMPER 1
1.19 SEE TABLE REVERSING CONTACTOR 1
1.20 00001502 JUMPER-B1 1
1.21 00001506 TERMINAL STRIP 2
1.22 70246 RECTIFIER 1
1.23 70274 RECTIFIER INSULATOR 1
1.24 957854 ROUND HEAD MACHINE SCREW 1
1.25 00000535 SURGE SUPPRESSOR 2
1.26 00001504 JUMPER-B7 1
1.27 00000537 B8 JUMPER 1
1.28 00000538 B9 JUMPER 1
1.29 00000205 B6 JUMPER 1
1.30 00001500 B3-JUMPER 1
1.31 00001501 B4-JUMPER 1
1.32 11782704 CONNECTOR PUSHWIRE ORANGE 4
1.33 10001433 EARTH GROUNDING BLOCK 1
