CM Lodestar A - Contactor Plate Assemblies for Models A-H (550;575 V)

81
00001996 (REV AC) 627NH October 2014

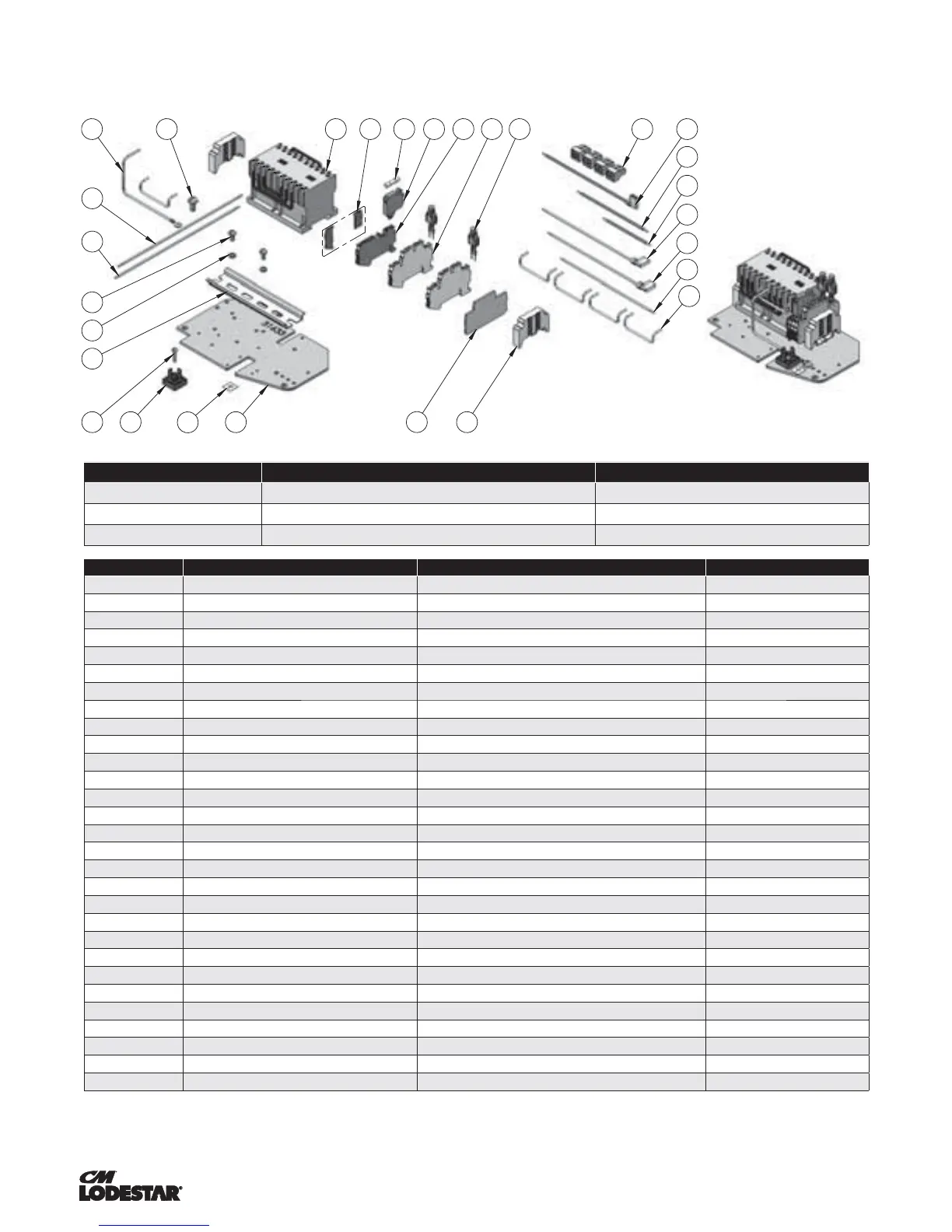

CONTACTOR PLATE ASSEMBLY FOR USE WITH DC BRAKE 550/575-3-50/60
MODELS A, AA, B, C, E, F & H
CONTACTOR BKT S/A REVERSING CONTACTOR SECONDARY VOLTAGE
00001689 28860 24 V
00001690 24797 48 V
00001691 24799 110 V
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 SEE TABLE CONTACTOR PLT S/A 1
1.1 31633 CONTACTOR PLATE 1
1.2 29312 DIN-RAIL 5.00" LONG 1
1.3 909J13 TERMINAL STRIP END CLAMP 2
1.4 29018 FUSIBLE TERMINAL STRIP 1
1.5 00000398 TERMINAL STRIP COVER SEGMENT 1
1.6 SEE TABLE REVERSING CONTACTOR 1
1.7 987873 LOCK WASHER #10 ASA MEDIUM 2
1.8 982686 SCREW #10-32 UNF-2A X 3/8" SL 2
1.9 987827 SCREW 1/4-20 UNC-2A X 1/2" 1
1.10 51847 JUMPER 5
1.11 20940 GROUND LABEL 1
1.12 27189 JUMPER-G/Y-#16 AWG 1
1.13 00001502 JUMPER-B1 1
1.14 00001503 JUMPER-B2 1
1.15 29019 TERMINAL STRIP CARTRIDGE 1
1.16 00000393 FUSE-5MM X 20MM-500MA 1
1.17 00001551 RECTIFIER 1
1.18 957854 ROUND HEAD MACHINE SCREW 1
1.19 00001506 TERMINAL STRIP 2
1.20 00001507 TERMINAL STRIP PARTITION 1
1.21 00001505 SURGE SUPPRESSOR 2
1.22 00001500 B3-JUMPER 1
1.23 00001501 B4-JUMPER 1
1.24 00001504 JUMPER-B7 1
1.25 00000537 B8 JUMPER 1
1.26 00000538 B9 JUMPER 1
1.27 00000205 B6 JUMPER 1
1.28 11782704 CONNECTOR PUSHWIRE ORANGE 4
1.17
1.14
1.26
1.13
1.6
1.18
1.8
1.3
1.151.5
1.2
1.11
1.4
1.7
1.12 1.9
1.21
1.20
1.22
1.27
1.25
1.1
1.23
1.28
1.16
1.19
1.10
1.24
