CM Lodestar A - Contactor Plate Assemblies for Models J, L, R, RT (1-Speed)

82
00001996 (REV AC) 627NH October 2014

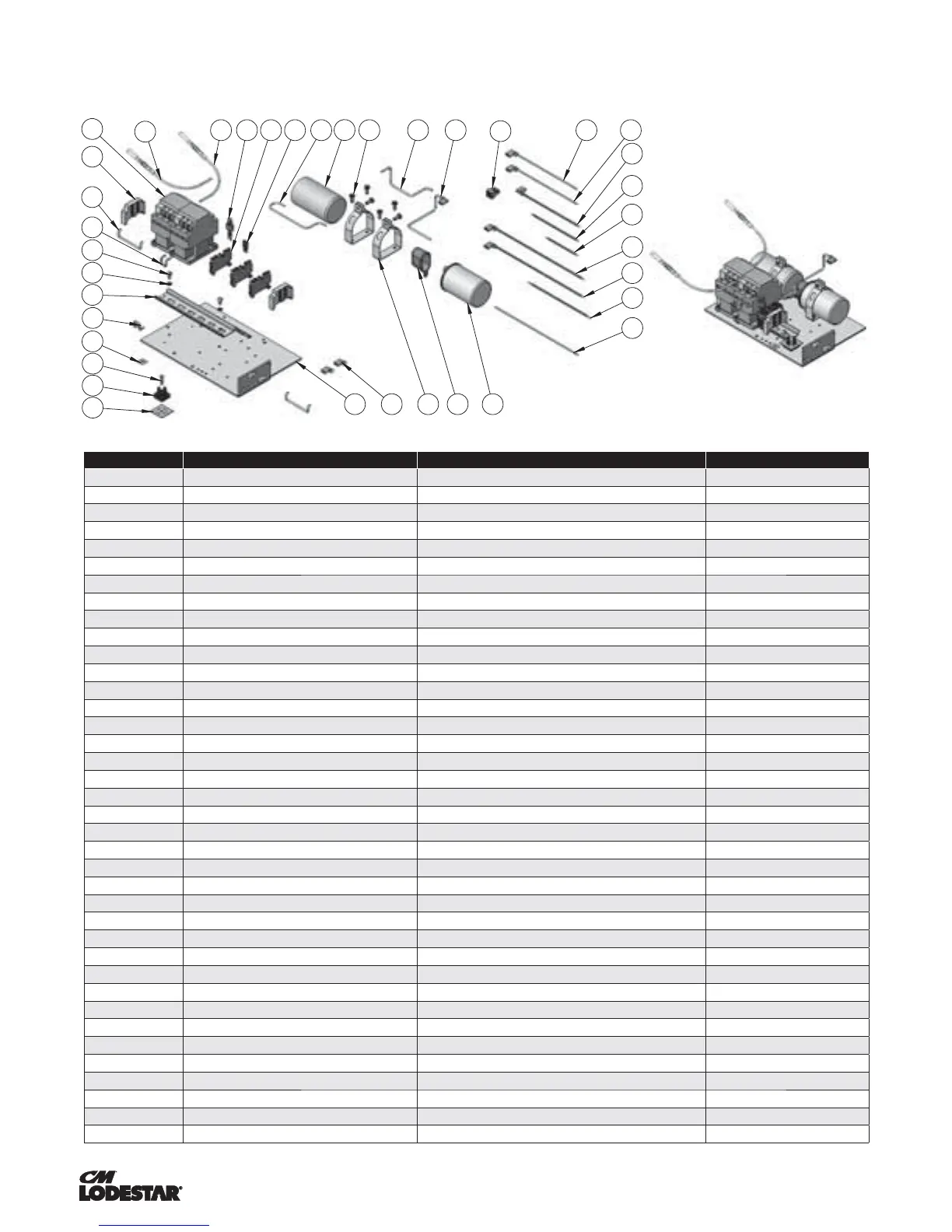

CONTACTOR PLATE ASSEMBLY FOR USE WITH DC BRAKE 110/115-1-50/60
MODELS J, L, R & RT
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 00001695 CONTACTOR BRACKET S/A 1
1.1 00000278 CONTACTOR BRACKET 1
1.2 35268 CLAMP 2
1.3 982873 MACHINE SCREW PAN HEAD 6
1.4 35279 START CAPACITOR 1
1.5 35285 RUN CAPACITOR INSULATOR 1
1.6 35278 CAPACITOR, RUN 1
1.7 20940 GROUND LABEL 1
1.8 29010 DIN-RAIL 6.50" LONG 1
1.9 982686 SCREW #10-32 UNF-2A X 3/8" SL 2
1.10 987873 LOCK WASHER #10 ASA MEDIUM 2
1.11 28905 REVERSING CONTACTOR 1
1.12 909J13 TERMINAL STRIP END CLAMP 2
1.13 51845 JUMPER 2
1.14 51847 JUMPER 2
1.15 29034 JUMPER (R10) 1
1.16 29035 JUMPER (R4) 1
1.17 00000758 JUMPER V2 1 PHASE (R9) 1
1.18 29036 JUMPER (R2) 1
1.19 29037 JUMPER (R3) 1
1.20 00000755 JUMPER V2 1 PHASE (R7) 1
1.21 00000757 JUMPER V2 1 PHASE (R6) 1
1.22 70274 RECTIFIER INSULATOR 1
1.23 70246 RECTIFIER 1
1.24 957854 ROUND HEAD MACHINE SCREW 1
1.25 982470 HEX HEAD MACHINE NUT 1
1.26 29014 TERMINAL STRIP 3
1.27 29047 TERMINAL STRIP BRIDGE 1
1.28 00000535 SURGE SUPPRESSOR 1
1.29 00000336 JUMPER (R12) 1
1.30 00000537 B8 JUMPER 1
1.31 00000538 B9 JUMPER 1
1.32 00000376 B5 JUMPER 1
1.33 00001500 B3-JUMPER 1
1.34 00001501 B4-JUMPER 1
1.35 00001503 JUMPER-B2 1
1.36 11782704 CONNECTOR PUSHWIRE ORANGE 1
1.37 983197 WIRING TERMINAL 2
1.18
1.21
1.22
1.30
1.1
1.24
1.9
1.17
1.34
1.5
1.15 1.33
1.11
1.26
1.8
1.10
1.12
1.14
1.13
1.7
1.20
1.19
1.13
1.6
1.3
1.35
1.29
1.161.28
1.4
1.2
1.27
1.31
1.32
1.23
1.36
1.37
