83
00001996 (REV AC) 627NH October 2014
1.36 1.16
1.47
1.11
1.33
1.31
1.23
1.24
1.32
1.27
1.22
1.2
1.34
1.8
1.3
1.4
1.18
1.35
1.10
1.20
1.7
1.9
1.5
1.21
1.46
1.13
1.15
1.28
1.6
1.26
1.29
1.17
1.25
1.14 1.38 1.39 1.41
1.40
1.42
1.44
1.19
1.37
1.45
1.12
1.30
1.1
1.43

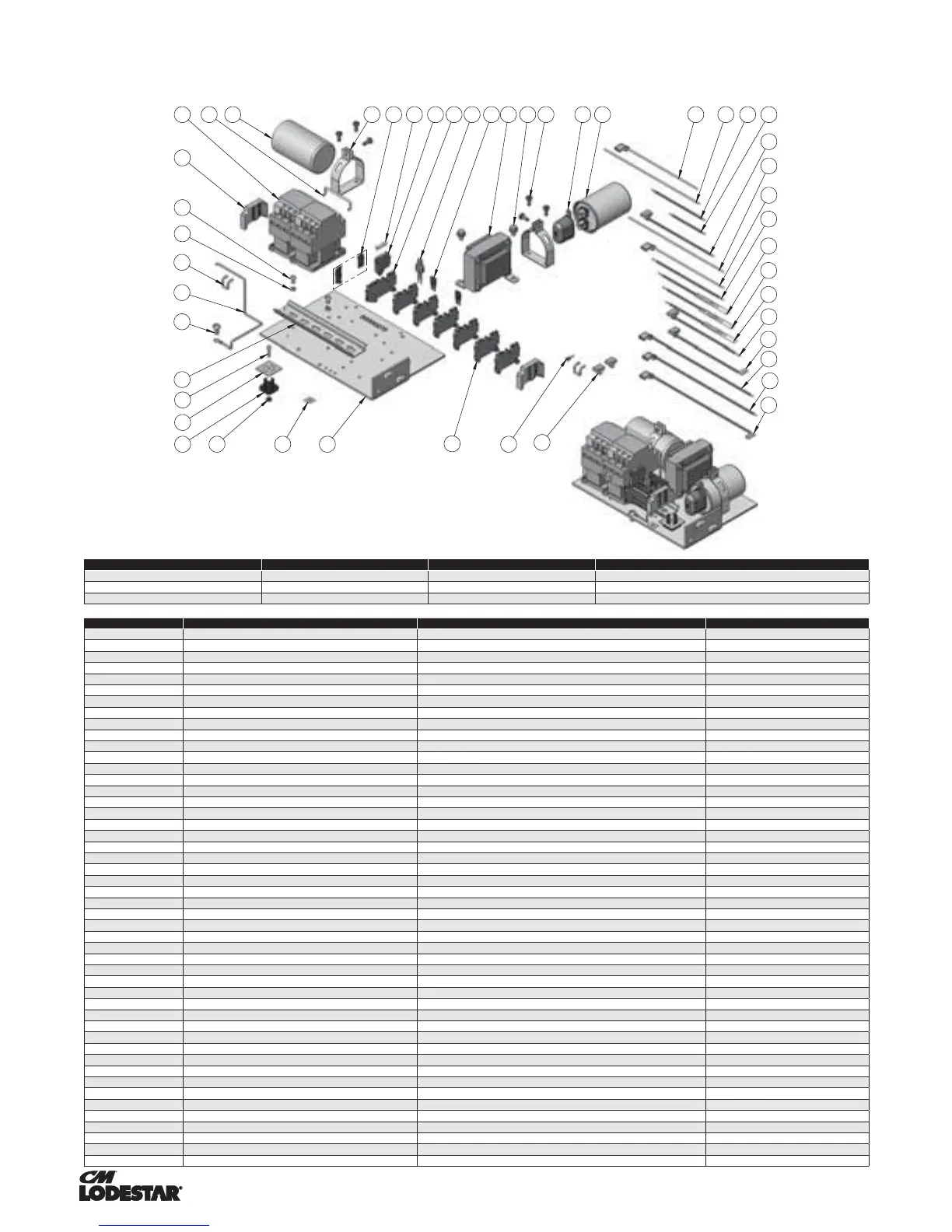

CONTACTOR PLATE ASSEMBLY FOR USE WITH AC BRAKE AND
TRANSFORMER 110/115-1-50/60 MODELS J, L, R & RT
CONTACTOR BKT S/A REVERSING CONTACTOR P/N TRANSFORMER P/N SECONDARY VOLTAGE
00001696 24791 00000592T 24 V
00001697 28906 00000593T 48 V
00001698 24791 00000594T 110 V
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 SEE TABLE CONTACTOR BKT S/A 1
1.1 00000278 CONTACTOR BRACKET 1
1.2 29010 DIN-RAIL 6.50" LONG 1
1.3 982686 SCREW #10-32 UNF-2A X 3/8" SL 2
1.4 987873 LOCK WASHER #10 ASA MEDIUM 2
1.5 909J13 TERMINAL STRIP END CLAMP 2
1.6 SEE TABLE REVERSING CONTACTOR 1
1.7 00000398 TERMINAL STRIP COVER SEGMENT 1
1.8 29018 FUSIBLE TERMINAL STRIP 1
1.9 29019 TERMINAL STRIP CARTRIDGE 1
1.10 00000393 FUSE-5MM X 20MM-500MA 1
1.11 29014 TERMINAL STRIP 6
1.12 29047 TERMINAL STRIP BRIDGE 2
1.13 35279 START CAPACITOR 1
1.14 35278 CAPACITOR, RUN 1
1.15 35268 CLAMP 2
1.16 982873 MACHINE SCREW PAN HEAD 6
1.17 35285 RUN CAPACITOR INSULATOR 1
1.18 SEE TABLE TRANSFORMER-V2-110/115 PRIMARY 1
1.19 25861 SCREW 1/4-20 UNC-2A X 3/8" HEX 2
1.20 20940 GROUND LABEL 1
1.21 987827 SCREW 1/4-20 UNC-2A X 1/2" 1
1.22 51845 JUMPER 2
1.23 29038 JUMPER (R5) 1
1.24 29037 JUMPER (R3) 1
1.25 29036 JUMPER (R2) 1
1.26 29034 JUMPER (R10) 1
1.27 29035 JUMPER (R4) 1
1.28 00000755 JUMPER V2 1 PHASE (R7) 1
1.29 00000757 JUMPER V2 1 PHASE (R6) 1
1.30 00000758 JUMPER V2 1 PHASE (R9) 1
1.31 00000336 JUMPER (R12) 1
1.32 70246 RECTIFIER 1
1.33 70274 RECTIFIER INSULATOR 1
1.34 957854 ROUND HEAD MACHINE SCREW 1
1.35 982237 DUAL ENTRY WIRE FERRULE 1
1.36 00000535 SURGE SUPPRESSOR 1
1.37 00001501 B4-JUMPER 1
1.38 00001500 B3-JUMPER 1
1.39 00001737 JUMPER 'B6' 1
1.40 00000537 B8 JUMPER 1
1.41 00000538 B9 JUMPER 1
1.42 00000376 B5 JUMPER 1
1.43 982470 HEX HEAD MACHINE NUT 1
1.44 00001503 JUMPER-B2 1
1.45 983197 WIRING TERMINAL 2
1.46 51847 JUMPER 1
1.47 GROUND JUMPER JUMPER-G/Y-#16 AWG 1
