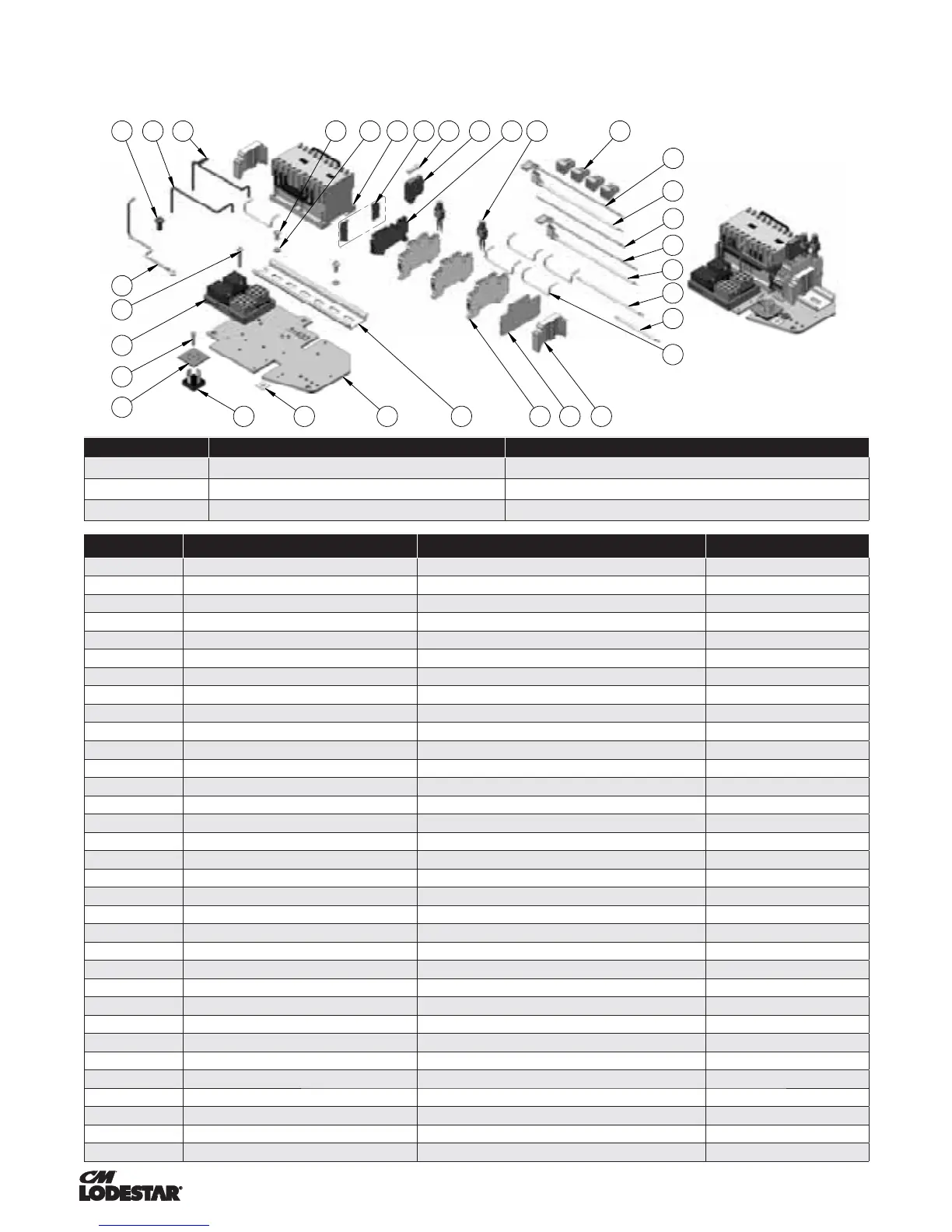

CM Lodestar A - Contactor Plate Assemblies for Models A-H (Dual Voltage)

To Next Page

To Previous Page

00001996 (REV AC) 627NH October 2014

1.8

1.19 1.33 1.4

1.20

1.15

1.31

1.30

1.27

1.29

1.28

1.9 1.12

1.14

1.6

1.22

1.23

1.16

1.11

1.10

1.17

1.18 1.211.31.5 1.32

1.21.1

1.13

1.24

1.25

1.26

CONTACTOR PLATE ASSEMBLY FOR USE WITH DC BRAKE 1-SPEED, DUAL

VOLTAGE UNITS 220/230-380/415/460-3-50/60 MODELS A, AA, B, C, E, F & H

CONTACTOR BKT S/A REVERSING CONTACTOR SECONDARY VOLTAGE

00001680 28860 24 V

00001681 24797 48 V

00001682 24799 110 V

ITEM NO. PART NUMBER DESCRIPTION QTY.

1 SEE TABLE CONTACTOR BKT S/A BHSE 1

1.1 29010 DIN-RAIL 6.50" LONG 1

1.2 909J13 TERMINAL STRIP END CLAMP 2

1.3 29018 FUSIBLE TERMINAL STRIP 1

1.4 00000398 TERMINAL STRIP COVER SEGMENT 1

1.5 29019 TERMINAL STRIP CARTRIDGE 1

1.6 10001233 VOLTAGE CHANGE BOARD 1

1.8 987862 SCREW #8-32UNC-2A X 1" 1

1.9 982686 SCREW #10-32 UNF-2A X 3/8" SL 2

1.10 987827 SCREW 1/4-20 UNC-2A X 1/2" 1

1.11 957854 SCREW #6-32 NC-2 X 5/8" ROUND 1

1.12 987873 LOCK WASHER #10 ASA MEDIUM 2

1.13 51847 Jumper 14 AWG Black, 5

1.14 20940 GROUND LABEL 1

1.15 00000393 FUSE-5MM X 20MM-500MA 1

1.16 31633 CONTACTOR PLATE 1

1.17 27189 JUMPER-G/Y-#16 AWG 1

1.18 00000750 JUMPER WIRE 1

1.19 00000751 JUMPER WIRE 1

1.20 00001506 TERMINAL STRIP 3

1.21 00001505 SURGE SUPPRESSOR 2

1.22 70246 RECTIFIER 1

1.23 70274 RECTIFIER INSULATOR 1

1.24 00000537 B8 JUMPER 1

1.25 00000538 B9 JUMPER 1

1.26 00000376 B5 JUMPER 1

1.27 00000205 B6 JUMPER 1

1.28 00001507 TERMINAL STRIP PARTITION 1

1.29 00001501 B4-JUMPER 1

1.30 00001500 B3-JUMPER 1

1.31 00001504 JUMPER-B7 1

1.32 11782704 CONNECTOR PUSHWIRE ORANGE 4

1.33 SEE TABLE REVERSING CONTACTOR 1
