CM Lodestar A - RRS Metal and Fabric Chain Container Installation Instruction

93
00001996 (REV AC) 627NH October 2014

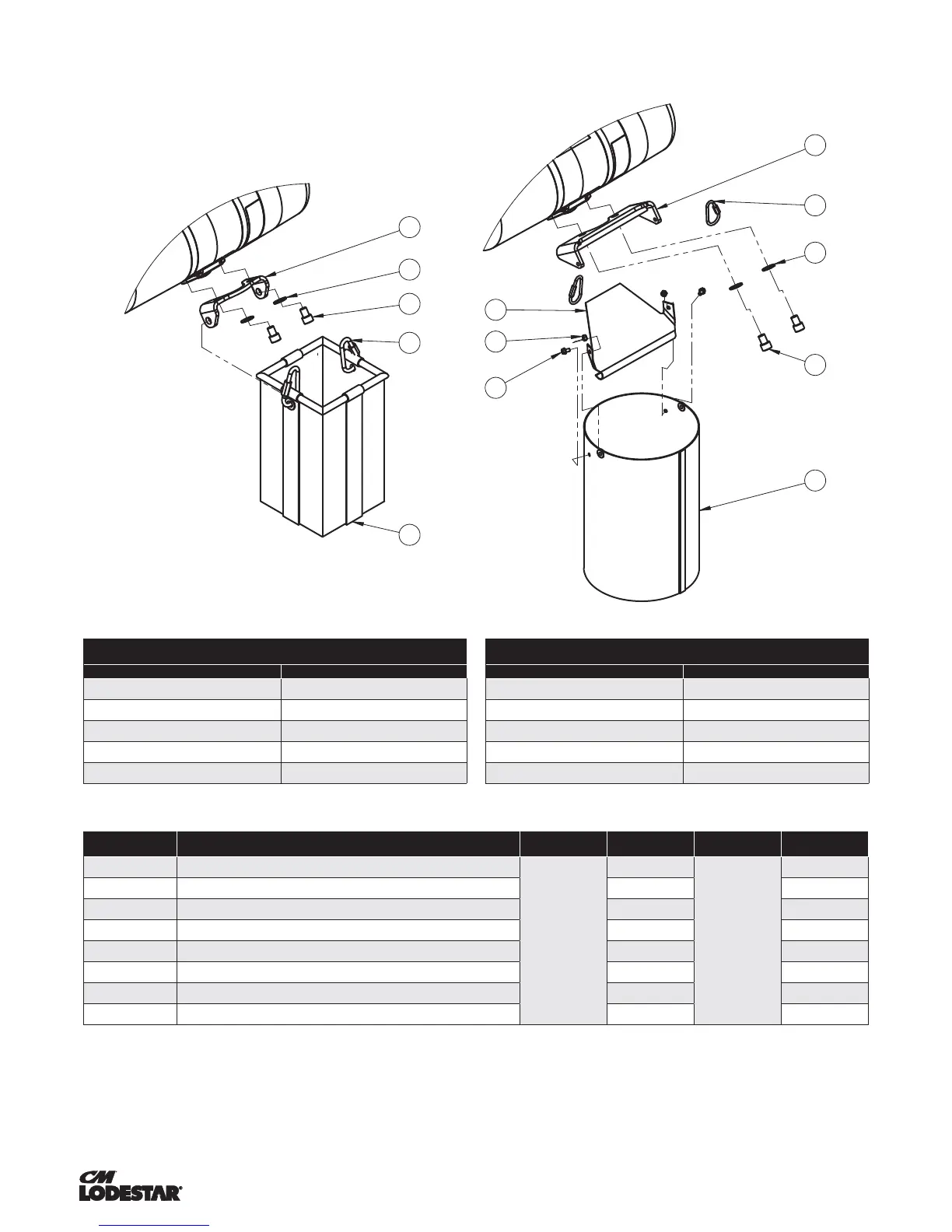

RRS METAL AND FABRIC CHAIN CONTAINER INSTALLATION INSTRUCTION
CANVAS CHAIN CONTAINER
BUCKET LENGTH VS LIFT
Lift in Feet Canvas Container Kit
20 10001562
30 10001568
40 10001569
50 10001570
60 10001571
METAL CHAIN CONTAINER
BUCKET LENGTH VS LIFT
Lift in Feet Canvas Container Kit
30 10001563
55 10001564
80 10001565
105 10001566
130 10001567
Item # Description Metal Kit Part # Qty.
Canvas Kit
Part #
Qty.
1 CHAIN CONTAINER BRACKET
SEE TABLE FOR
PART NUMBER
BASED
ON LIFT
1
SEE TABLE
FOR PART
NUMBER
BASED
ON LIFT
1
2 WASHER 2 2
3 SOCHET HEAD CAP SCREW 2 2
4 QUICK LINK 2 2
5 CHAIN CONTAINER 1 1
6 CHAIN CONTAINER RAMP 1 -
7 RAMP NUT 2 -
8 RAMP HEX BOLT 2 -
1
4
2
3
5
5
7
8
1
4
2
3
6
