77
00001996 (REV AC) 627NH October 2014
1.19 1.9
1.28
1.26
1.5
1.18
1.16
1.15
1.1
1.13 1.4 1.3
1.25
1.10
1.11
1.27
1.39
1.38
1.36
1.20
1.21
1.22
1.23
1.24
1.12
1.37
1.35
1.32
1.33
1.40
1.2
1.31
1.14
1.29
1.30
1.17
1.34
1.41
1.61.81.7

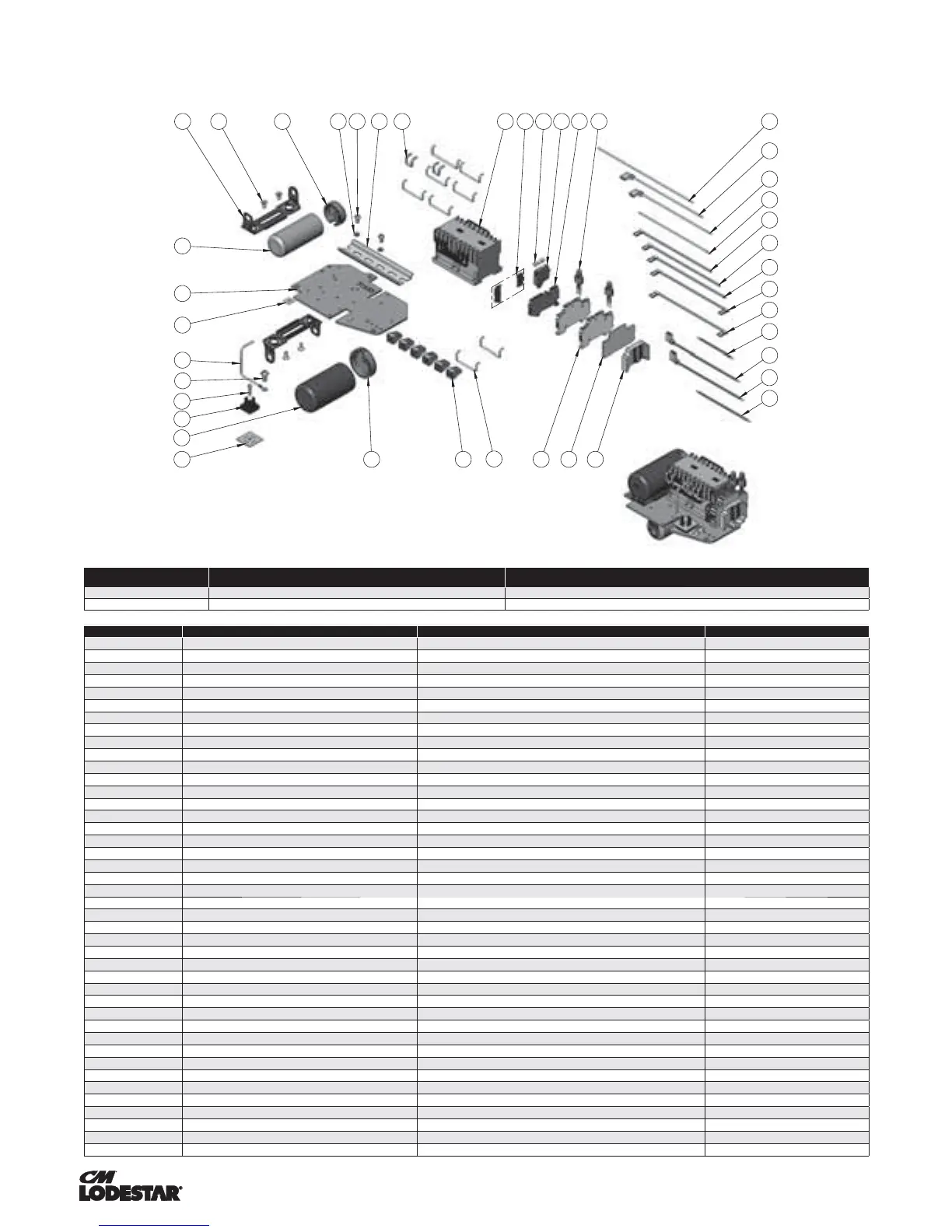

CONTACTOR PLATE ASSEMBLY FOR USE WITH DC BRAKE AND
TRANSFORMER 110/115-1-50/60 MODELS A, AA, B, C, E, F & H
CONTACTOR BKT S/A REVERSING CONTACTOR SECONDARY VOLTAGE
00001675 28860 24 V
00001676 24797 48 V
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 SEE TABLE CONTACTOR PLATE S/A 1
1.1 31633 CONTACTOR PLATE 1
1.2 29312 DIN-RAIL 5.00" LONG 1
1.3 982686 SCREW #10-32 UNF-2A X 3/8" SL 2
1.4 987873 LOCK WASHER #10 ASA MEDIUM 2
1.5 909J13 TERMINAL STRIP END CLAMP 1
1.6 29018 FUSIBLE TERMINAL STRIP 1
1.7 00000398 TERMINAL STRIP COVER SEGMENT 1
1.8 29019 TERMINAL STRIP CARTRIDGE 1
1.9 00000393 FUSE-5MM X 20MM-500MA 1
1.10 27716 CAPACITOR 1
1.11 29910 CAPACITOR CAP 1
1.12 27910 CAPACITOR MOUNTING BRACKET 2
1.13 982696 SCREW 10-32 UNF-2A X 3/8 LG 4
1.14 987827 SCREW 1/4-20 UNC-2A X 1/2" 1
1.15 27189 JUMPER-G/Y-#16 AWG 1
1.16 20940 GROUND LABEL 1
1.17 27925 SOLID STATE SWITCH CAP 1
1.18 27257 REVERSE SWITCH 1
1.19 51845 JUMPER 2
1.20 27156 JUMPER R14 1
1.21 29911 JUMPER R5 1
1.22 29912 JUMPER R6 1
1.23 29913 JUMPER R7 1
1.24 29914 JUMPER R8 1
1.25 SEE TABLE REVERSING CONTACTOR 1
1.26 00001506 TERMINAL STRIP 2
1.27 00001507 TERMINAL STRIP PARTITION 1
1.28 00000535 SURGE SUPPRESSOR 2
1.29 70246 RECTIFIER 1
1.30 70274 RECTIFIER INSULATOR 1
1.31 957854 ROUND HEAD MACHINE SCREW 1
1.32 00001500 B3-JUMPER 1
1.33 00001501 B4-JUMPER 1
1.34 00001504 JUMPER-B7 1
1.35 00001502 JUMPER-B1 1
1.36 00000376 B5 JUMPER 1
1.37 00000205 B6 JUMPER 1
1.38 00000537 B8 JUMPER 1
1.39 00000538 B9 JUMPER 1
1.40 11782704 CONNECTOR PUSHWIRE ORANGE 6
1.41 51847 JUMPER 8
