CM Lodestar A - 5 Metal and Fabric Chain Container Installation Instructions

92
00001996 (REV AC) 627NH October 2014

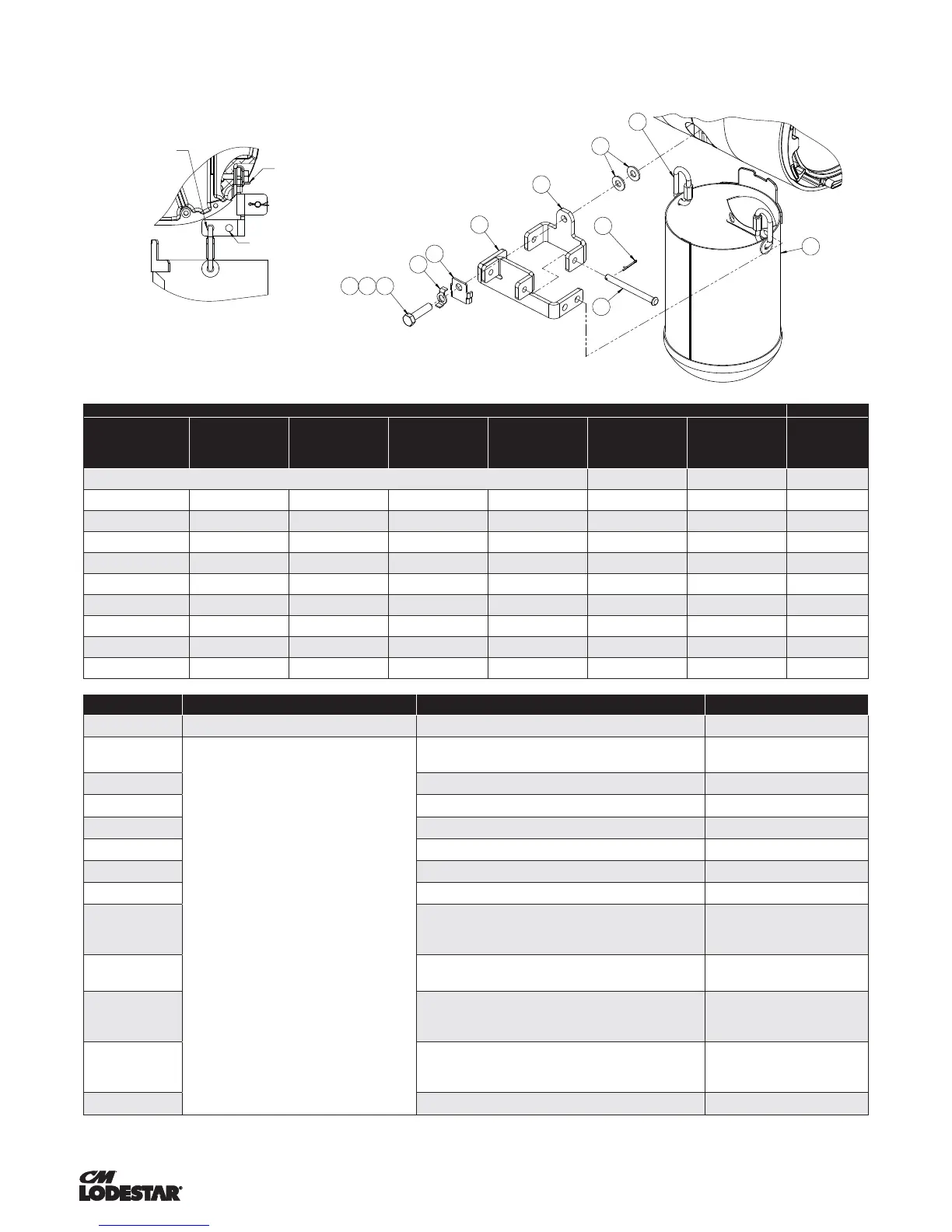

5" METAL AND FABRIC CHAIN CONTAINER INSTALLATION INSTRUCTIONS
CHAIN CONTAINER BUCKET LENGTH VS. MODEL AND LIFT (TABLE A)
A THRU C2
& F THRU F-2
E, E-2, H,
&H-2
J THRU
LL-2
R THRU
RR-2
RT THRU
RRT-2
BUCKET
LENGTH
(INCHES)
METAL
CONTAINER
PART
NUMBERS
FABRIC
CONTAINER
PART
NUMBERS
LIFT IN FEET – – –
10 5 - – – – 8 2450 3813PNH
10 - 20 5 - 10 10 5 – 11 2451 3814PNH
20 - 30 10 - 15 10 - 15 5 - 7.5 5 14 2452 3810PNH
30 - 40 15 - 20 15 - 20 7.5 - 10 5 - 6.3 17 2453 3815PNH
40 - 50 20 - 25 20 - 25 10 - 12.5 6.3 - 8.3 20 2454 3816PNH
50 - 60 25 - 30 25 - 30 12.5 - 15 8.3 - 10 23 2455 3811PNH
60 - 90 30 - 45 30 - 40 15 - 20 10 - 13.3 31 2456 3817PNH
90 - 100 45 - 50 40 - 60 20 - 30 13.3 - 20 36 2457 3812PNH
100 - 140 50 - 70 60 - 90 30 - 45 20 - 30 48 2458 3818PNH
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 - CHAIN CONTAINER BUCKET/BAG 1
-
24650
CHAIN CONTAINER KIT 5" DIAMETER (CONSIST OF THE
BELOW ITEMS)
1
2 UPPER BRACKET 1
3 LOWER BRACKET 1
4 PIN CLEVIS 1
5 COTTER PIN-1/16 X 3/4 LG 1
6 ADAPTER (V2) FOR MODELS J THRU RRT-2 1
7 SCREW HEAD RETAINER 1
8A
HHCS 5/16-18 UNC-2A X 1¼
USE ONLY ON HOIST WITH SERIAL # BEGINNING WITH "NL"
MODELS J THRU RRT AND WJ & WR
1
8B
HHCS 1/4-20 UNC-2A X 1 1
USE ONLY ON MODELS A THRU H-2
1
8C
HHCS 5/16-18 UNC-2A X 1
USE ONLY ON HOIST WITH SERIAL # BEGINNING
WITH "L" OR "LW" MODELS J-RRT AND WJ & WR
1
9
WASHER 5/16 X 11/16 X .065 SAE
USED ONLY ON HOIST WITH SERIAL # BEGINNING WITH
"NL"
2
10 QUICK LINK 2
7
6
2
3
9
5
4
1
10
8A 8B 8C
A B
Item 7: THIS TAB IS BENT UP TO HORIZONTAL
TO SECURE HHCS (HEX HEAD CAP SCREW)
USE HOLE B FOR
MODELS J THRU RRT-2
USE HOLE A FOR MODELS A THRU H-2
