CM Lodestar A - Page 74

74
00001996 (REV AC) 627NH October 2014

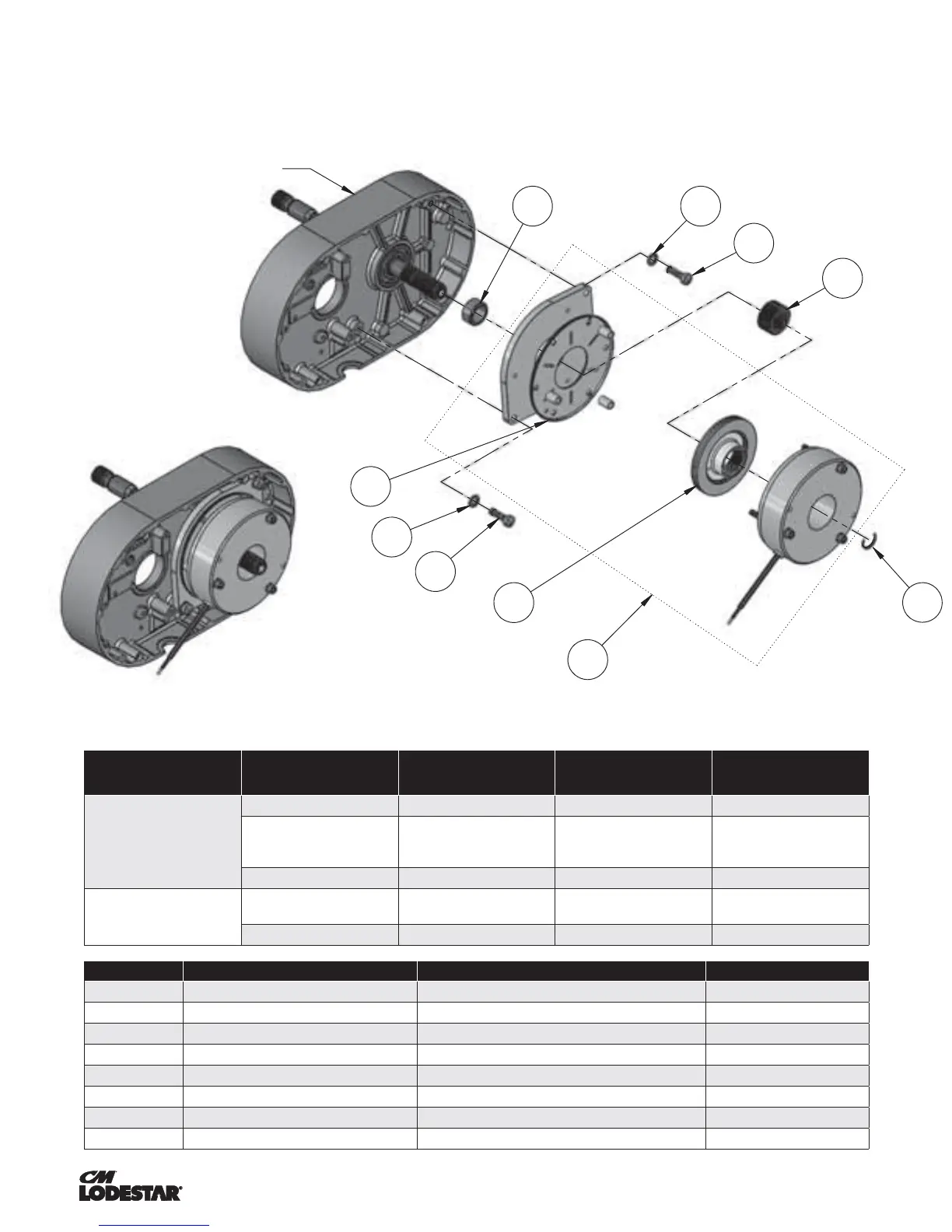

DC BRAKE - SINGLE MODELS
J, J-2, JJ, JJ-2, L, L-2, LL, LL-2, R, R-2, RR, RR-2, RRS, RT, RT-2, RRT & RRT-2
Hoist Model Brake Assembly Item1 Rotor Item 1.1 Hoist Motor Brake Coil Voltage
J, J-2, L, L-2, R, R-2, RT, RT-2
10001246 10001253 110/115-1-50/60 103VDC
10001247 10001253
220/230-1-50/60
220/230-3-50/60
380/415/480-3-50/60
205VDC
10001248 10001253 550/575-3-50/60 255VDC
JJ, JJ-2, LL, LL-2,
RR, RR-2, RRS, RRT, &
RRT-2
10001249 00001429
220/230-3-50/60
380/415/480-3-50/60
205VDC
10001250 00001429 550/575-3-50/60 255VDC
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 SEE TABLE V2 LODESTAR SIZE 10 BRAKE 1
1.1 10001253 V2 LODESTAR SIZE 10 ROTOR 1
1.2 00001437 V2 LODESTAR FRICTION PLATE 1
2 00001433 HUB SPACER V2 DC INTORQ BRAKE 1
3 00001431 V2 LODESTAR SIZE 10 HUB 1
4 982709 SCREW 5/16-18UNC-2A x 1" 2
5 945851 LOCK WASHER 5/16 x .125 x .078" 2
6 10409711 ROTOR CLIP RETAINING RING 1
4
5
2 5
3
1.2
1
1.1
4
6
BACK FRAME
W/ DRIVE SHAFT
ASSEMBLED VIEW
