Chapter 2: To get started
98-148232-E M2M application examples 20
Dual operation

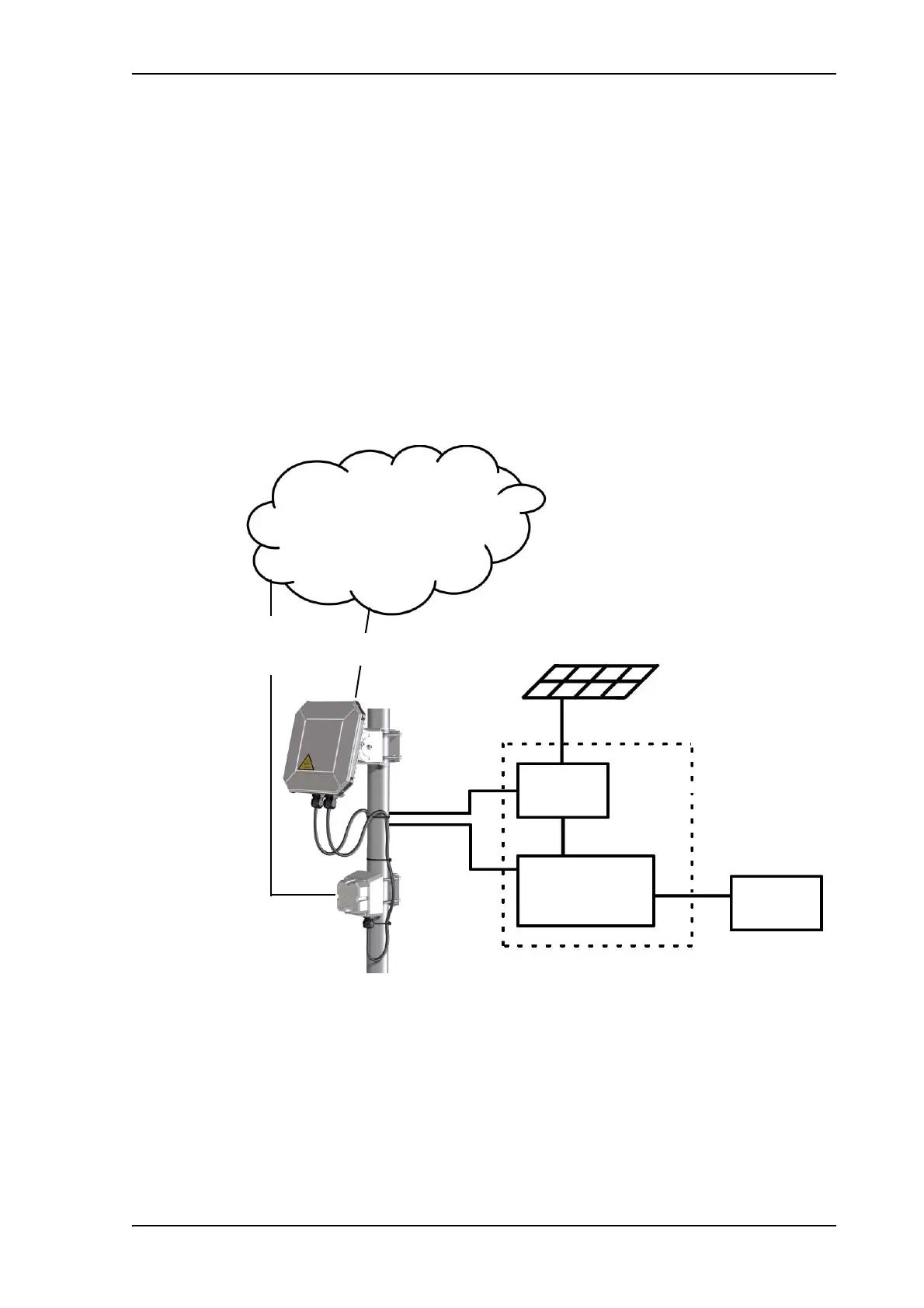

In the scenario below, an EXPLORER 540 LTE Modem is used to provide connection to a
cellular network while the BGAN connection is used for backup. Power is supplied from a
separate battery connected to the DC input of the EXPLORER 540, in order to provide enough
power for both the EXPLORER 540 and the LTE Modem.
• For specifications and pinout for the DC input on the EXPLORER 540, see DC power input
(X4) on page 116.
• For installation instructions, see the supplied EXPLORER 540 Installation guide. Note that
you must use a fused or current-limiting DC power supply (battery).
• For installation instructions for the EXPLORER 540 LTE Modem, see the guide included with
the EXPLORER 540 LTE Modem.
Battery
M2M
equipment
Internet
BGAN M2M service
via satellite
LAN
DC power
Solar panel
Probe
2G, 3G or 4G
service via
Cellular network
