Software update
8-12
Chapter 8: Service
98-141779-G
8.2.2.3
Software update (modem)
The modem dete
cts automati
cally whether a
software upgra
de is needed. If ye
s, software
upgrade is done automati
cally via the satellite
link. You can see the current software version
in the GMU web
interface.

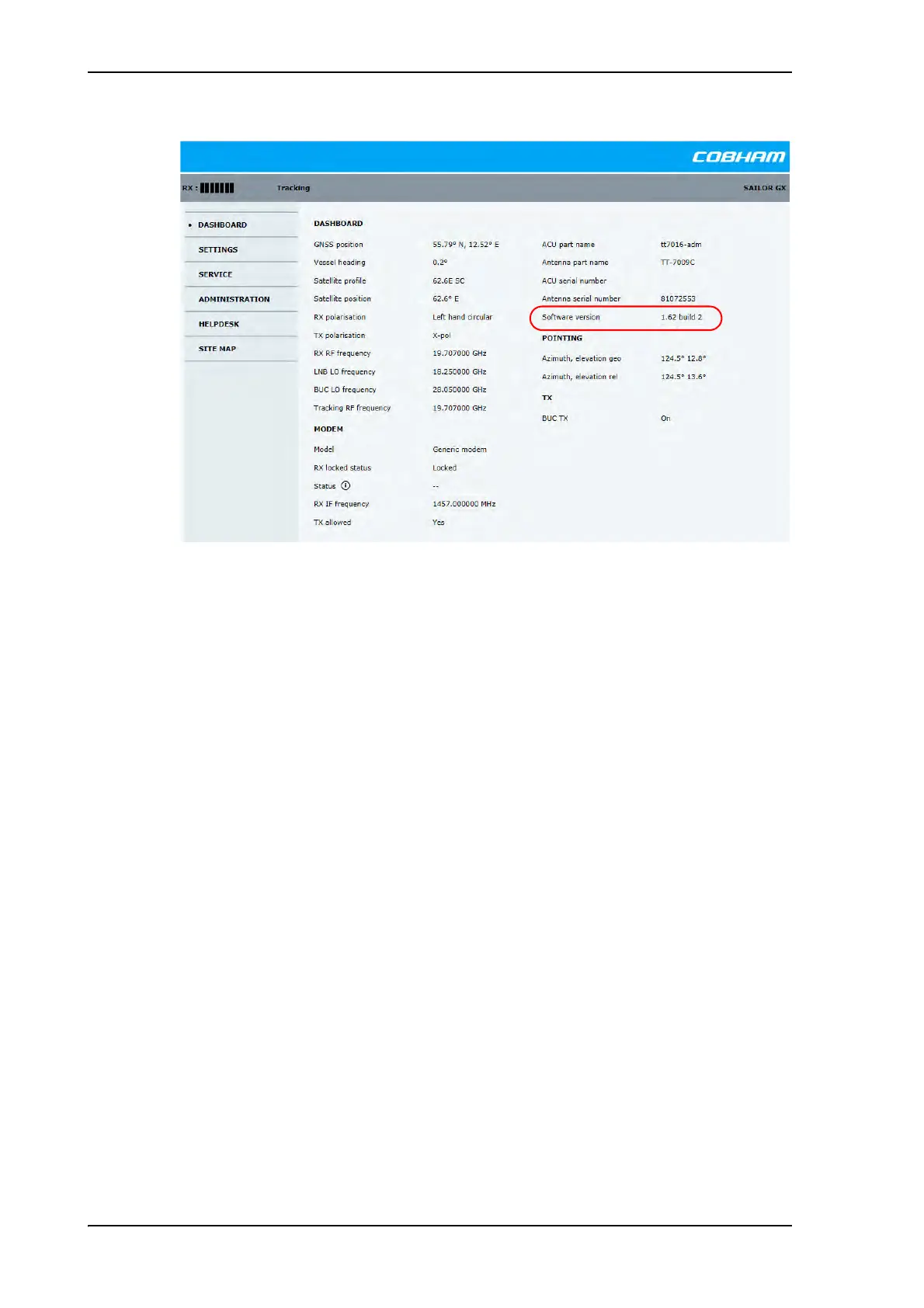

Figure 8-10:
V
erifying software update
121
123
